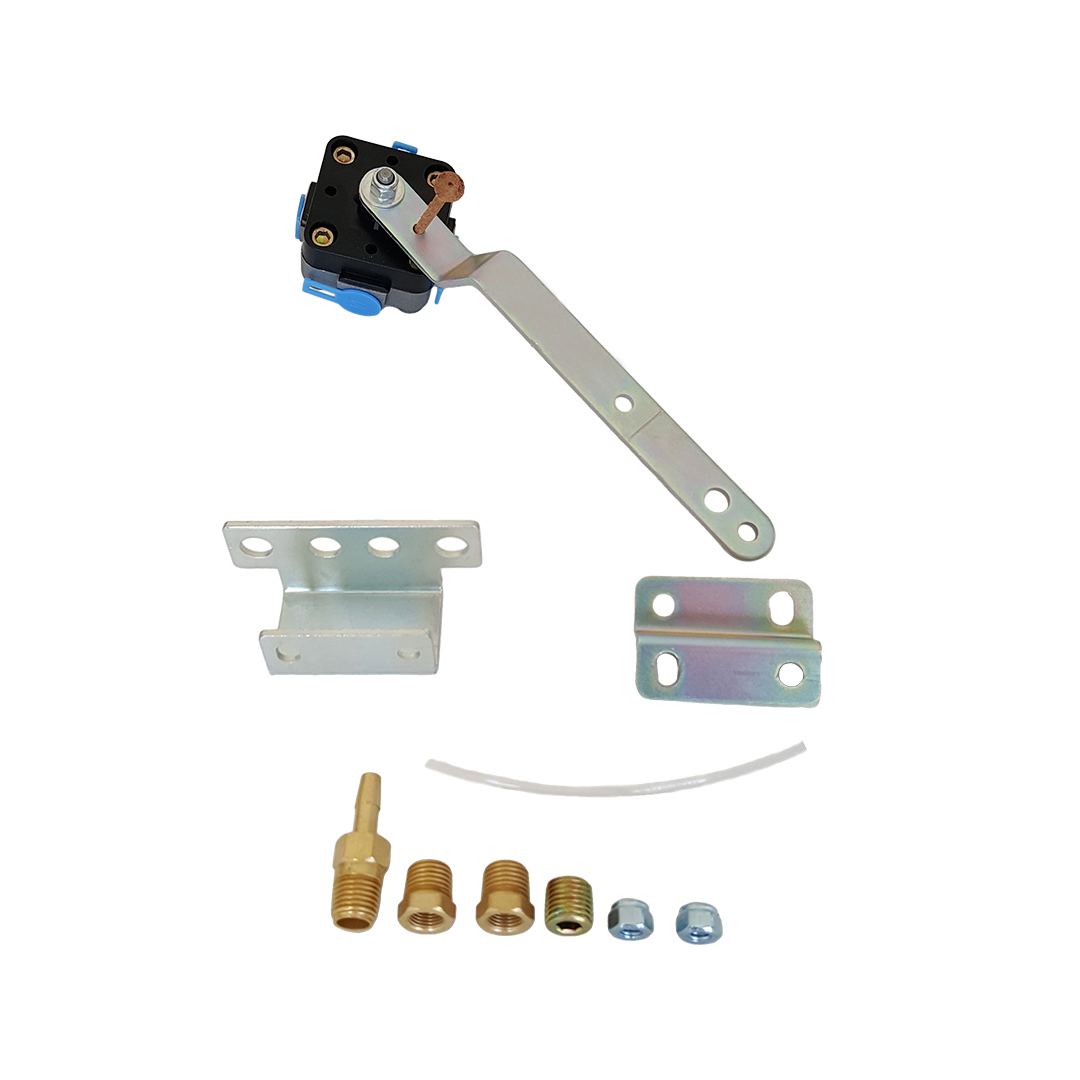

TRVS227 | Height Control Valve for Hendrickson
Description : Height Control Valve for Hendrickson
Part Number : TRVS227
TRVS227 | Height Control Valve for Hendrickson
- Automatically adds air to, or exhausts air from air suspension to maintain constant static design height.
- Does not respond to short duration dynamic changes in axle position, thus reducing air consumption which extends compressor life and saves fuel.
- Automatically adds air to, or exhausts air from air suspension to maintain constant static design height.
- Does not respond to short duration dynamic changes in axle position, thus reducing air consumption which extends compressor life and saves fuel.
| Brand | Reference Numbers |
|---|---|
| Euclid Euclid Hendrickson | E11494 E11855 22110‑001 |
| Haldex | 90054007 |
| Hendrickson | 50433001, |
| Hendrickson/Turner | A24642, |
| Mack | 20QE3345, |
| Meritor | R3011494 |
| Midland | H15884BA |
| Neway | 1237423D000 |
| Newstar | S‑26985 |
| Property | Value |
|---|---|
| Operating pressure | 130 psi (9 bar) maximum |
| Operating temperature | ‑40ºF to +150ºF (‑40ºC to +65ºC) |
| Maximum flow rate | 350 L/Min (12.4 cfm) |
| Delivery ports | 1/4" NPT fittings – Dual delivery ports |
| Maximum handle movement | +/‑ 75º for fill or exhaust |
| Weight | 2 lbs |
| Longest Side | 21.65" |
| Median Side | 14.96" |
| Shortest Side | 9.84" |
| Weight | 2.87 lbs |
