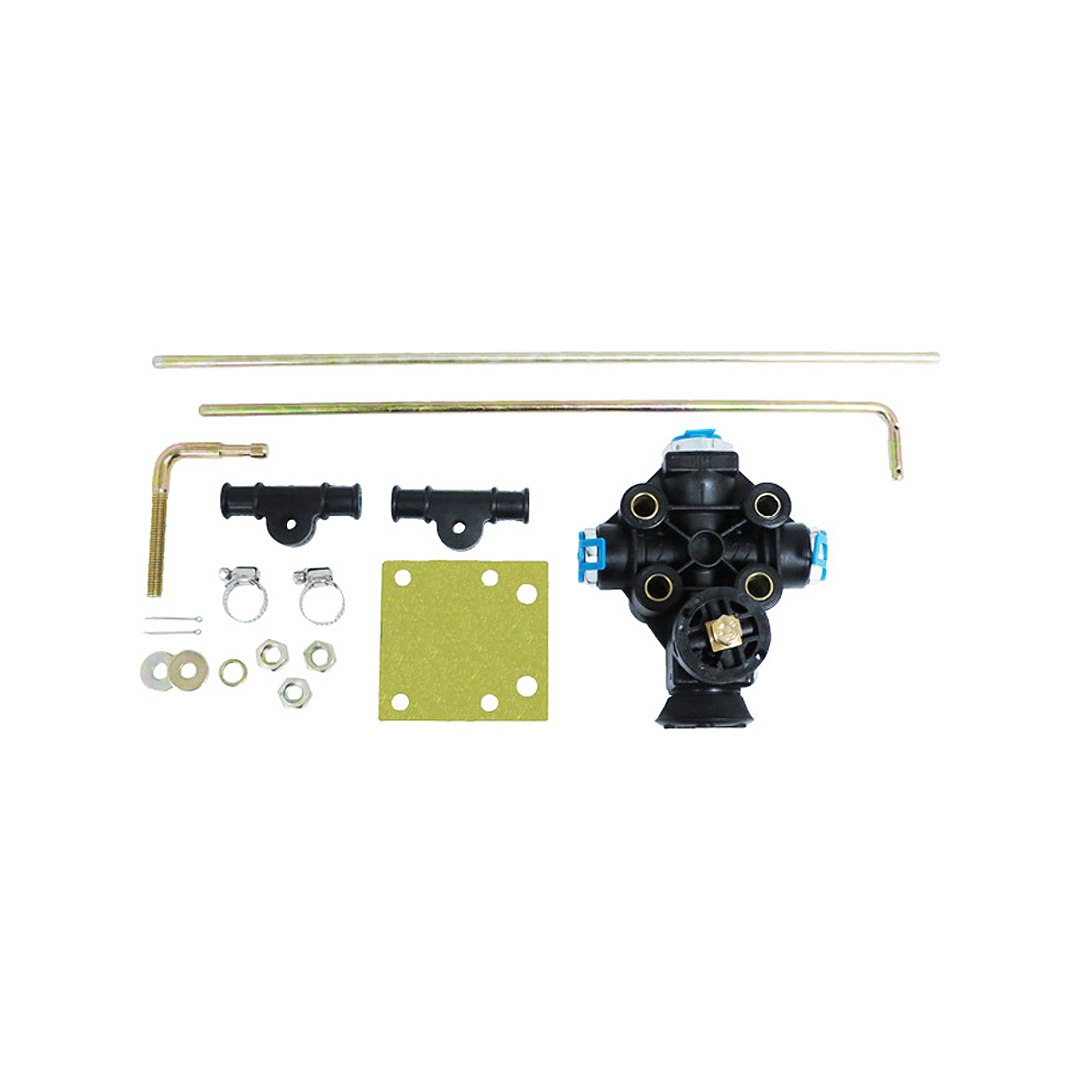

TRKN27000 | IR Height Control Valve
Description : IR Height Control Valve
Part Number : TRKN27000
TRKN27000 | IR Height Control Valve
- Used to maintain vehicle height on an air suspended chassis.
- Linkage included in specified lengths.
- One valve can be used for left and right installations.
- One valve can control two suspension bellows.
- Standard flow valve for truck/bus/trailer application.
- Used to maintain vehicle height on an air suspended chassis.
- Linkage included in specified lengths.
- One valve can be used for left and right installations.
- One valve can control two suspension bellows.
- Standard flow valve for truck/bus/trailer application.
| Brand | Reference Numbers |
|---|---|
| BWP | M‑27000 |
| Euclid | E13922, |
| Haldex | KN27000 |
| Meritor | R3013222 |
| Midland | KN27000 |
| Neway | 90554241 |
| Newstar | S‑9978 |
| PAI | LVC3707 |
| Velvac | 34064 |
| Property | Value |
|---|---|
| Horizontal Arm Length | 12" (Max) |
| All Ports | 1/4" NPT |
| Vertical Arm Length | 14" |
| Axle Bracket Linkage | Vertical |
| Weight | 2 lbs |
| Longest Side | 20.08" |
| Median Side | 12.20" |
| Shortest Side | 12.20" |
| Weight | 1.65 lbs |
