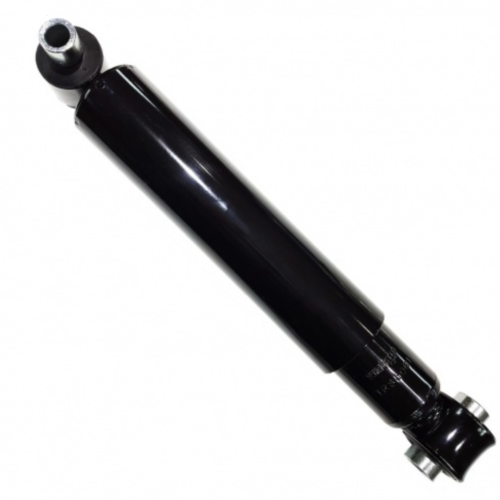

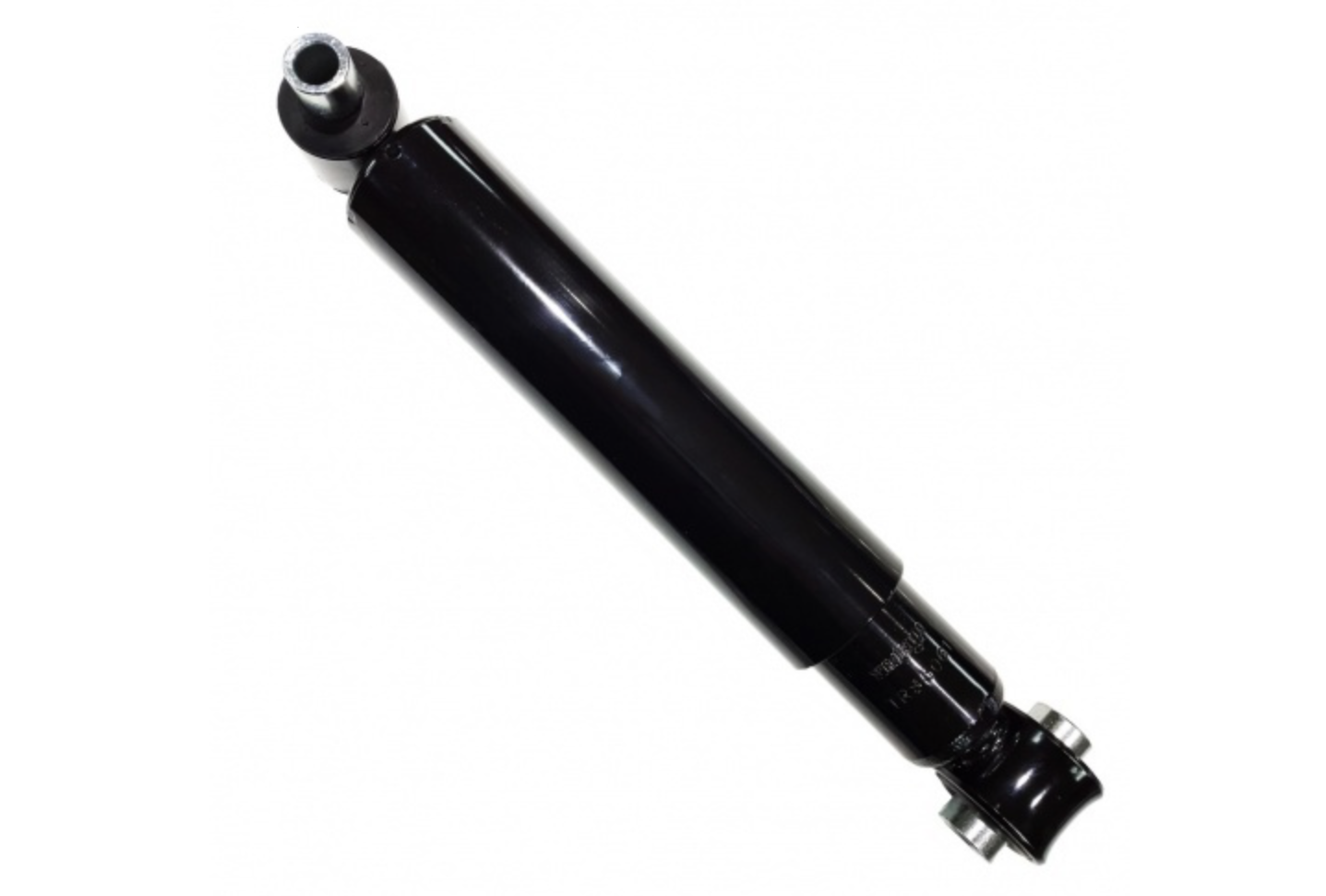

TR85061 | Heavy Duty Front Shock Absorber for Mack CHN, CHU, CX, CXN, CXP, CXU and Volvo VNL, VT Tru
Description : Heavy Duty Shock Absorber for Mack CHN, CHU, CX, CXN, CXP, CXU and Volvo VNL, VT Trucks
Part Number : TR85061
TR85061 | Heavy Duty Shock Absorber for Mack CHN, CHU, CX, CXN, CXP, CXU and Volvo VNL, VT Trucks
| Gabriel : | 85061 |
| Mack : | 14QK2136M, 14QK3107M, 14QK3114M, 14QK431M, 20513881, 20897198, 20973993, 23292027, 23292028, 471700002626, SDA14170000380, 14QK-3107M |
| Meritor : | 85061 |
| Monroe : | 65130, 65494 |
| Volvo : | 20513881, 20433424, 23288402, 23288403, 3092842, 3949241, 8078195 |
| Volvo/White : | 20433424, 20513881, 3092842 |
| Extended : | 24.75" |
| Collapsed : | 15.22" |
| Stroke : | 9.53" |
| Bore : | 1-5/8" |
| Dust Tube : | Yes |
| Recoil Cutoff : | Yes |
| Rebound : | 1216 lb. |
| Compression : | 195 lb. |
