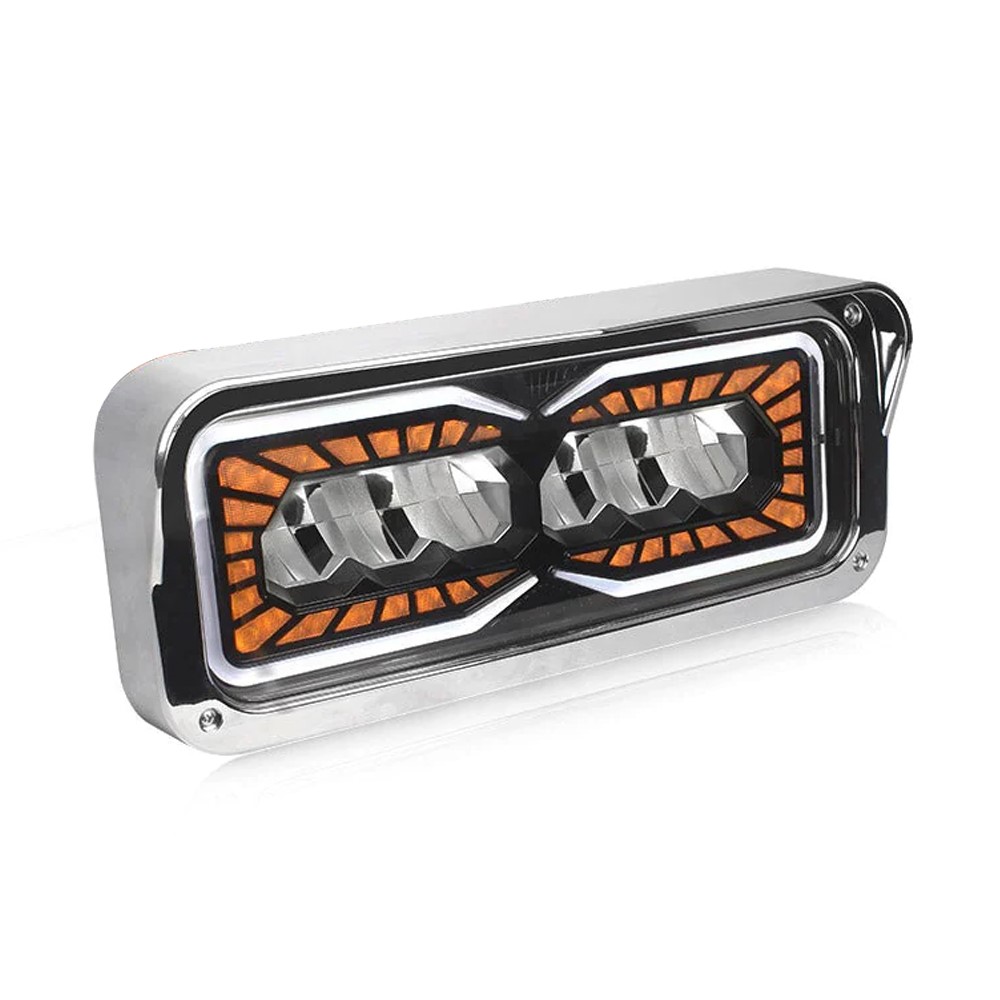

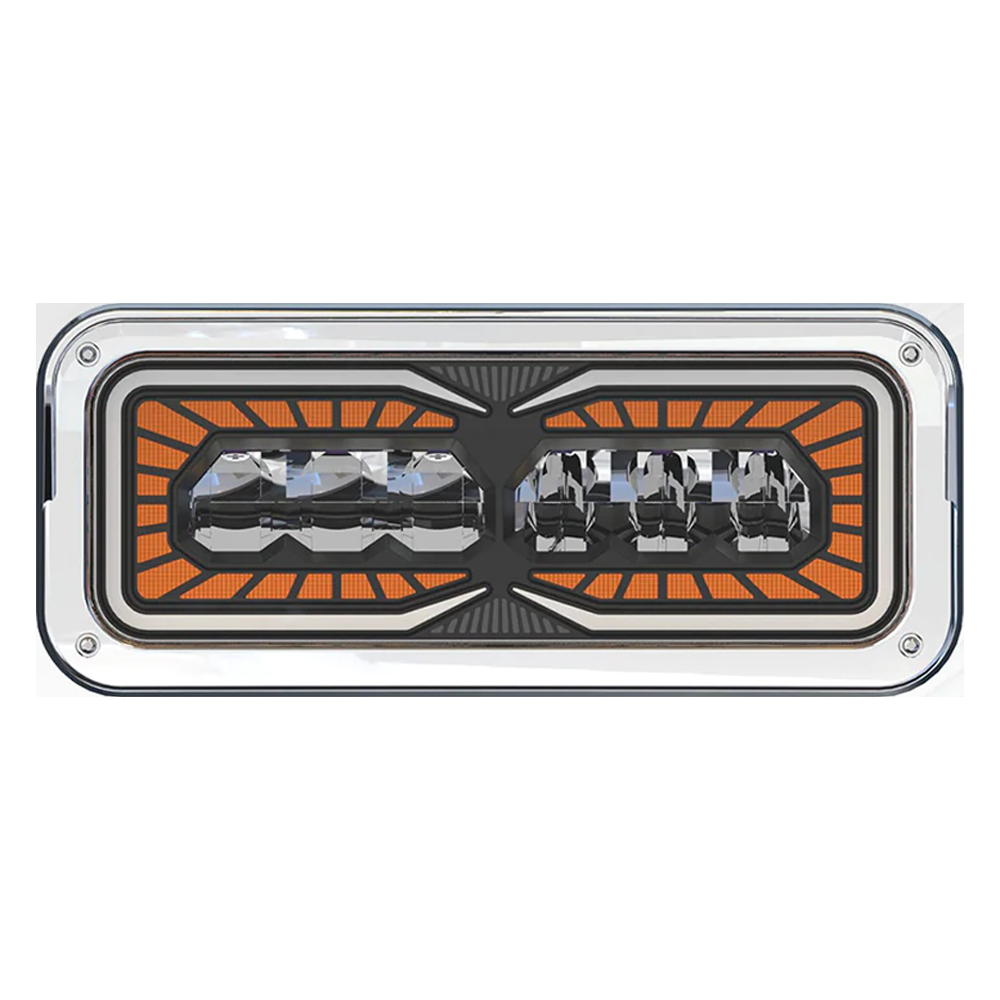

F00693-L | RH Headlight, LED, w/ Amber DRL, PETERBILT 379,378,365,357, KENWORTH W900,T800,T600
Description :
Part Number : F00693-L
F00693-L | LH Head Light, LED, w/ Amber DRL, PETERBILT 379 (1987-2007), 378 (1988-2007), 365 (2008-2009), 357 (1986-2008), KENWORTH W900 (1984+), T800 (1987+), T600 (1986-2007), FREIGHTLINER CLASSIC (1988-2007), WESTERN STAR 6900 Series, 4900 Series, 4800 Series
CM-HPC1001-L
| Beam Pattern | Wattage | Current/Voltage | SMD | LED Q'TY | Lumens | Compliance |
| Halo Auxiliary | 5W | 0.21A @ 24V | 2835 | 88pcs | 70Lm | DOT SAE, FMVSS 108 |
| Direction Indicator Lamp | 8W | 0.33A @ 24V | 2835 | 52pcs | 350Lm | DOT SAE, FMVSS 108 |
| High Beam | 35W | 1.46A @ 24V | HGL3 | 6pcs | 2750Lm | DOT SAE, FMVSS 108 |
| Low Beam | 18W | 0.75A @ 24V | HGL3 | 3pcs | 1300Lm | DOT SAE, FMVSS 108 |
