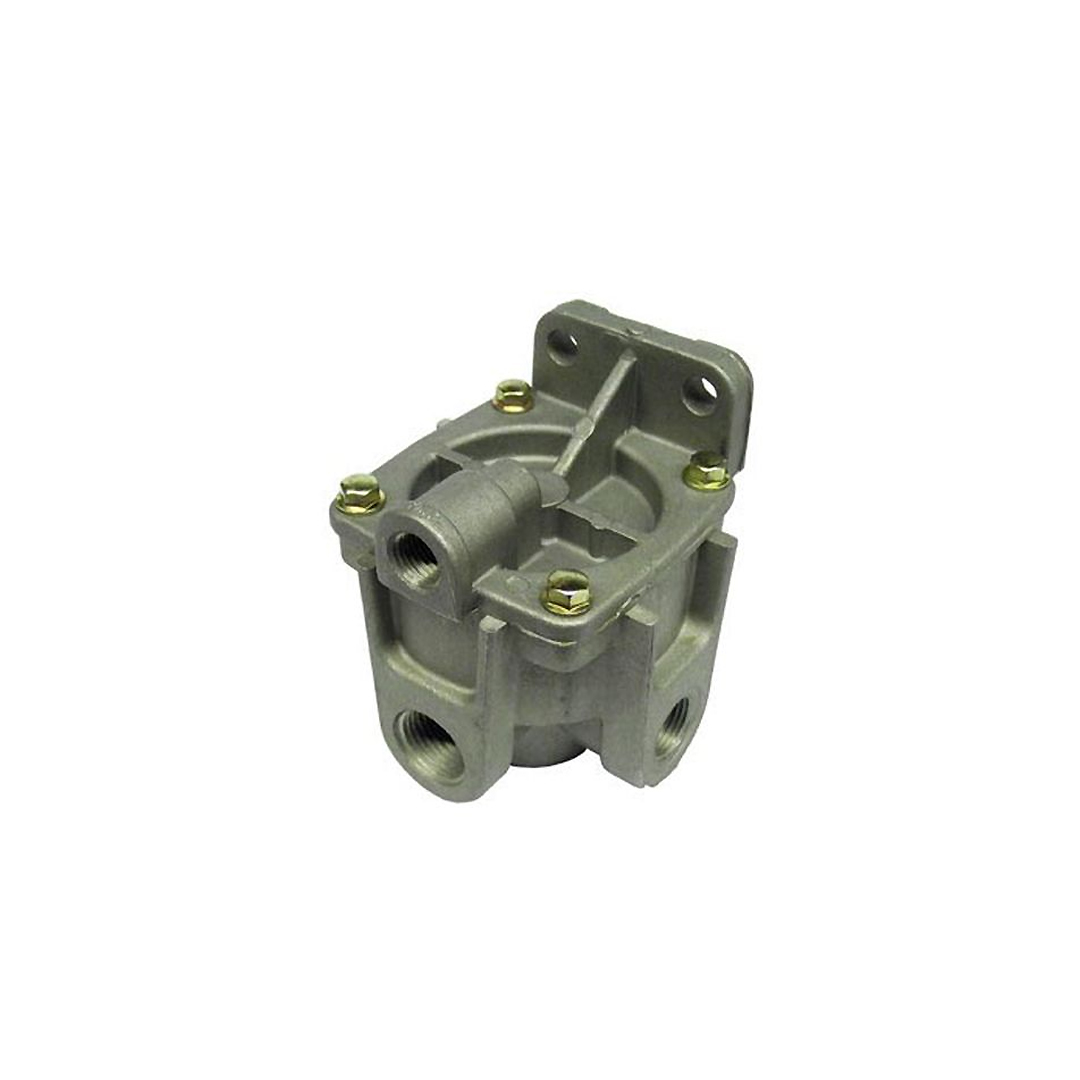

TRKN28510 | RG-2 Trailer Relay Valve
Description : EMDKN28510N, KN28510X, KN28510, N30108AK, 5396KN28510
Part Number : TRKN28510
TRKN28510 | RG-2 Trailer Relay Valve
| Euclid: | EMDKN28510N |
| Haldex: | KN28510X, KN28510, N30108AK |
| Mack: | 5396KN28510 |
| Midland: | KN28510, N30108BL |
| Velvac: | 034057, 34057 |
| Supply Port-A: | 3/8" |
| Supply Port-B: | 1/2" |
| Delivery Port-C: | 3/8" |
| Delivery Port-D: | 3/8" |
| Control Position: | 90° |
| Plugs Included: | 1 @ 1/2", 1 @ 3/8" |
| Width: | 3-1/2" |
| Length: | 3-1/2" |
| Height: | 3-5/8" |
| Contol Port: | 1/4" |
| Cracking Pressure: | 5.6 ± 1.0 PSI |
| Mounting Holes (2): | .34" diameter on 1.50" centers |
| Approximate Weight: | 1.5 lbs. |
