TR9645 | Trailer Air Spring
Description : AB1DK23U-9645, 566.CT64695, RL96450, 8565
Part Number : TR9645
TR9645 | Plastic base - Trailer reversible sleeve air spring, Replaces S-23612, W01-358-9645, 64695
| Contitech: | 64695, 910BP-22P739 |
| Firestone: | 9645, W013589645, W01-358-9645, W014559645, W01-455-9645 |
| Hendrickson: | S23612, S-23612, C-23612 |
| Ridewell: | RL96450 |
| Triangle: | 8565 |
| Automann: | AB1DK23U-9645, 566.CT64695 |
| Other: | TR9645 |

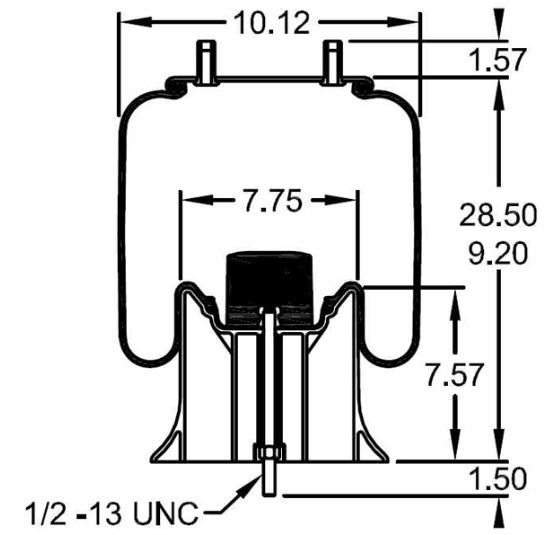

| Extended Height: | 28.50" |
| Compressed Height: | 9.20" |

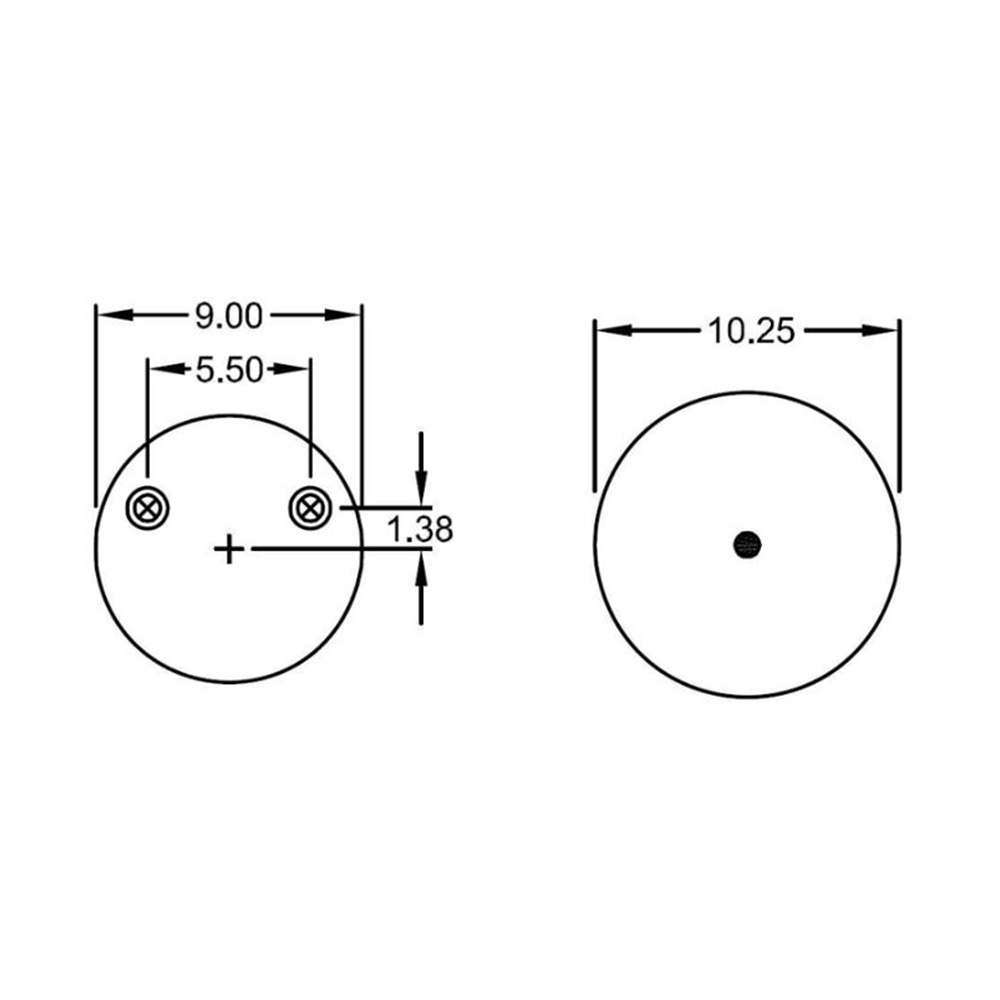

| Top Plate Width: | 9.00" |
| Piston Width: | 10.25" |
| Weight: | 17.00 lbs |
