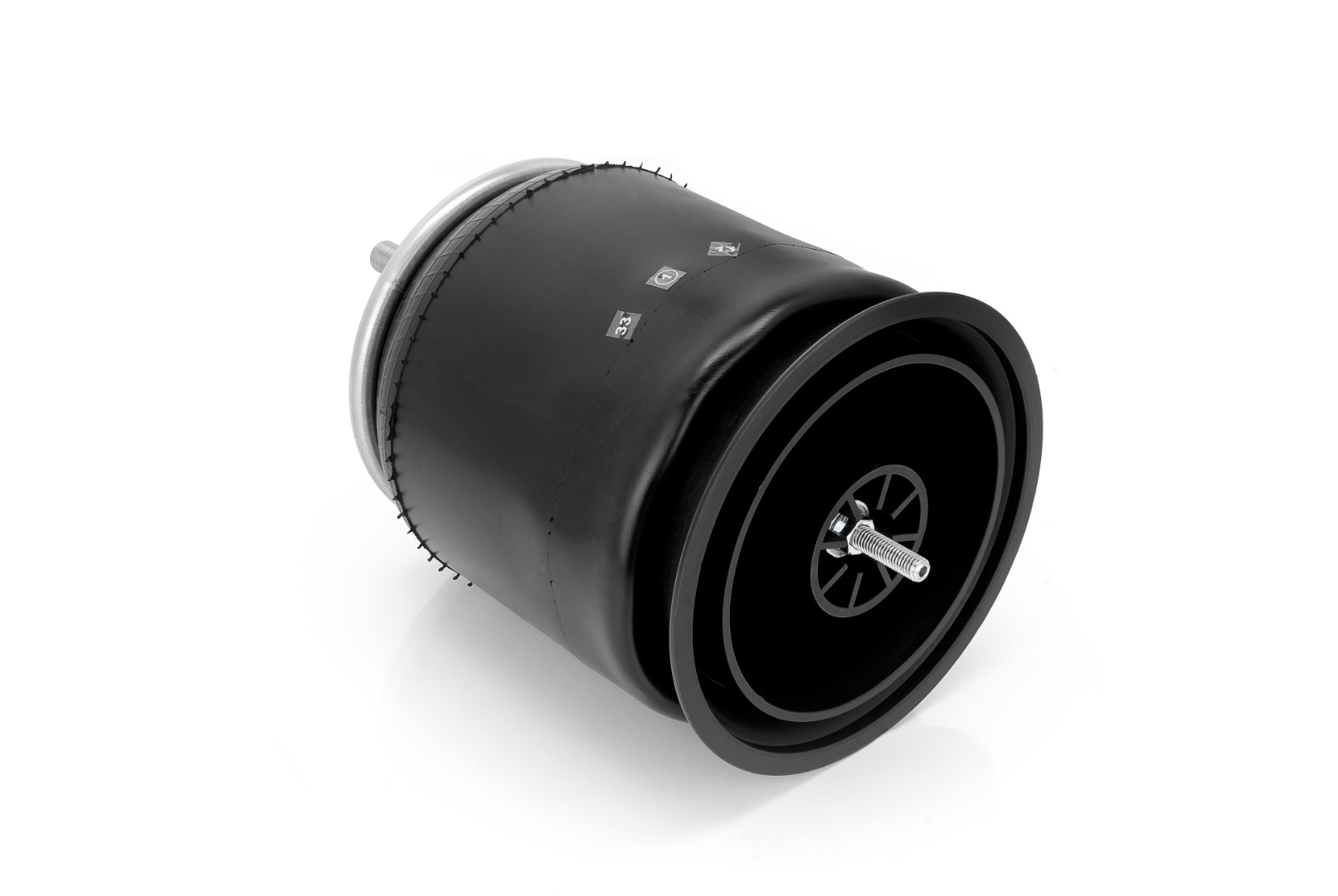

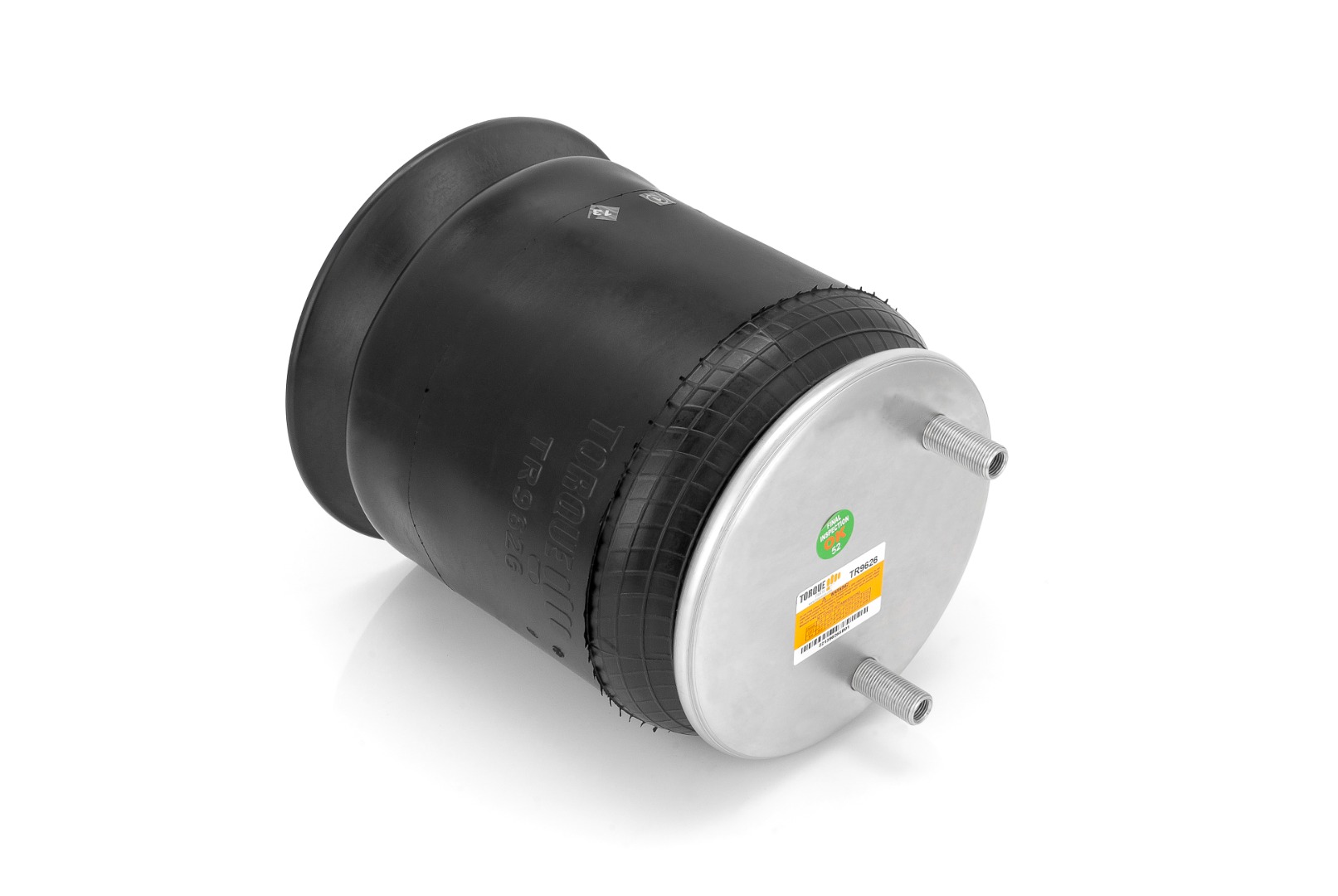

TR9626 | Hendrickson Trailer S23720 Reversible Sleeve Air Spring Plastic Piston
Description : 9626, W013589626, W01-358-9626, W014559626, W01-455-9626
Part Number : TR9626
TR9626 | Plastic pastic - Trailer reversible sleeve air spring, Hendrickson, Replaces S-23720, 1R11-292, W01-358-9626
| Contitech: | 64692, 99-16P568 |
| Firestone: | 9626, W013589626, W01-358-9626, W014559626, W01-455-9626 |
| Goodyear: | 1R11292, 1R11-292 |
| Hendrickson: | S23720, S-23720, C-23720 |
| Triangle: | 8568 |
| Automann: | AB1DK20J-9626, 566.CT64692 |
| Other: | TR9626 |

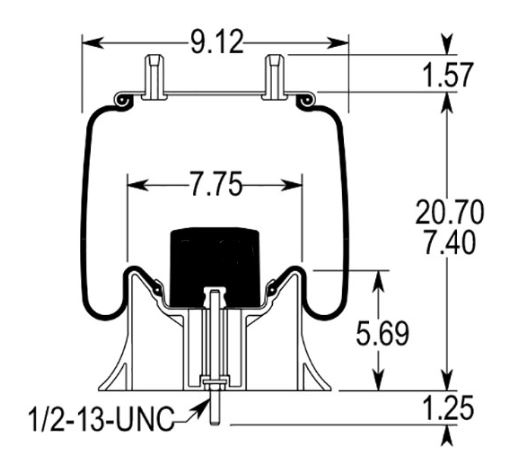

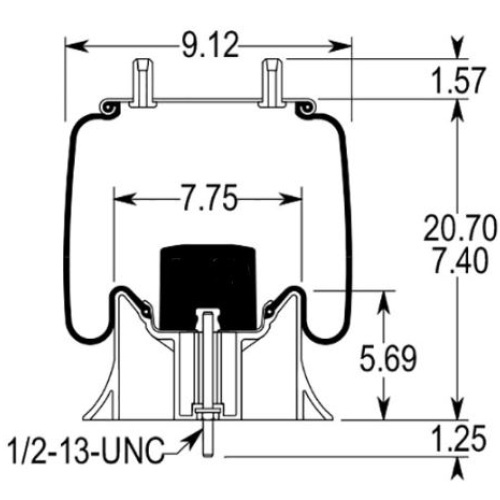

| Extended Height: | 20.70" |
| Compressed Height: | 7.40" |

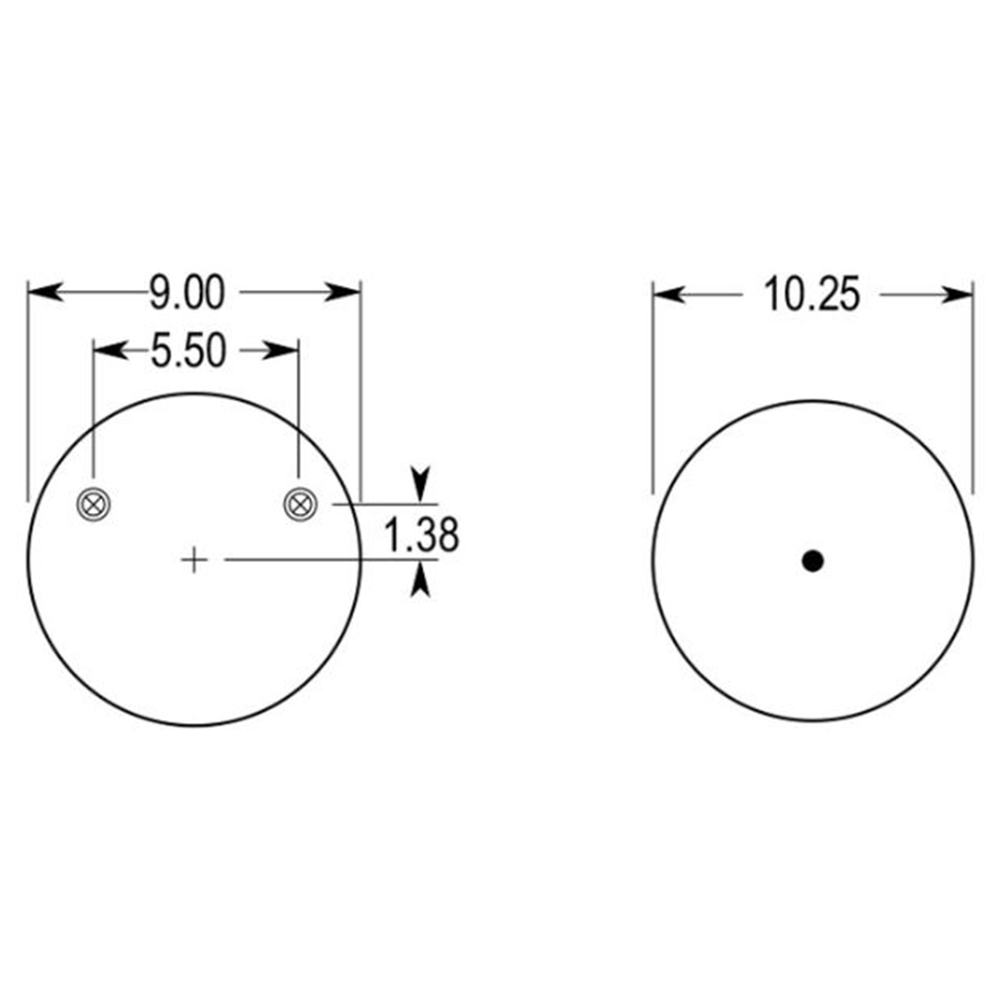

| Top Plate Width: | 9.00” |
| Piston Width: | 10.25” |
| Weight: | 14.50 lbs |
