TR9297 | Trailer Air Spring
Description : AB1DK23M-9297, 566.CT66978, 50898001, W013589297
Part Number : TR9297

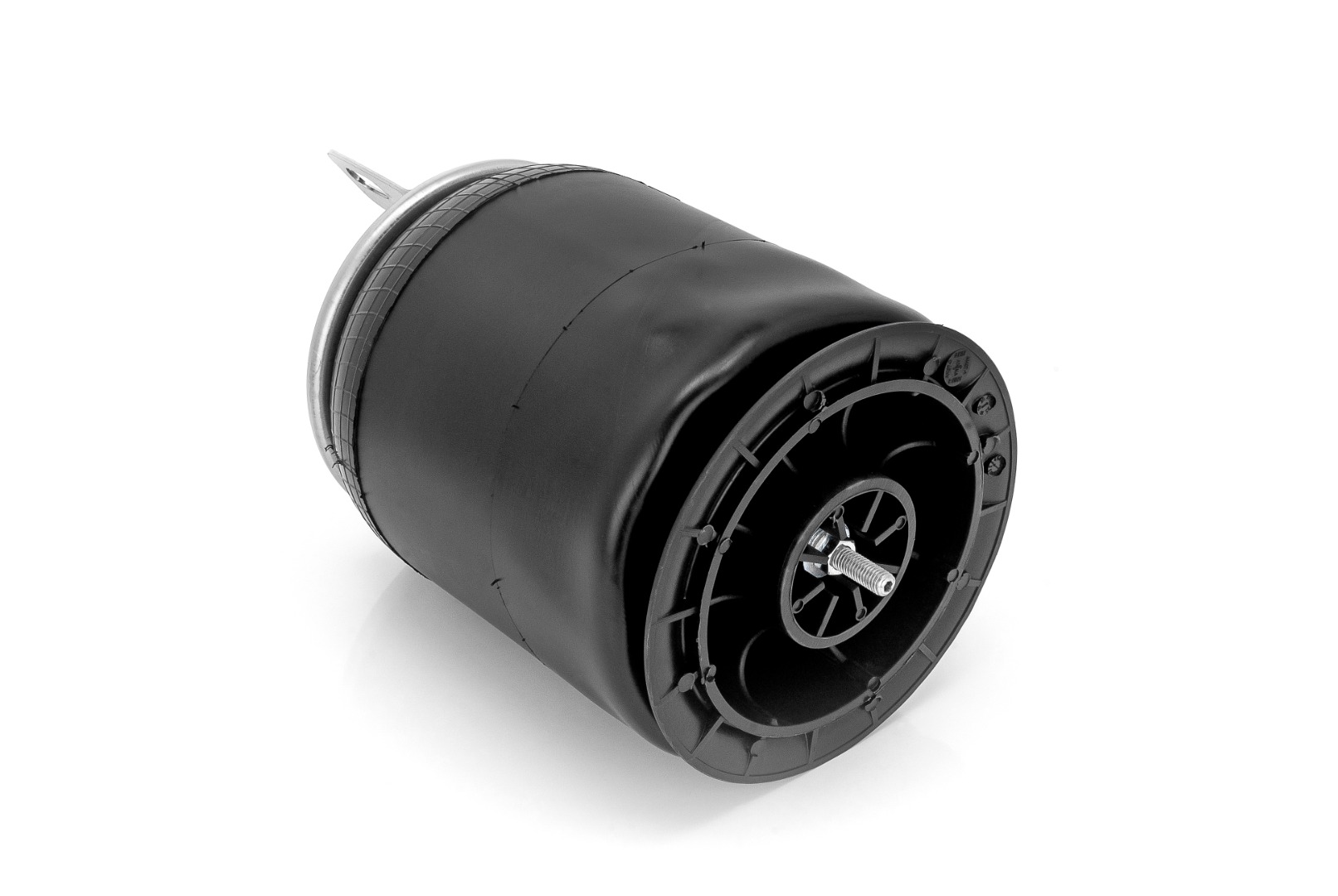

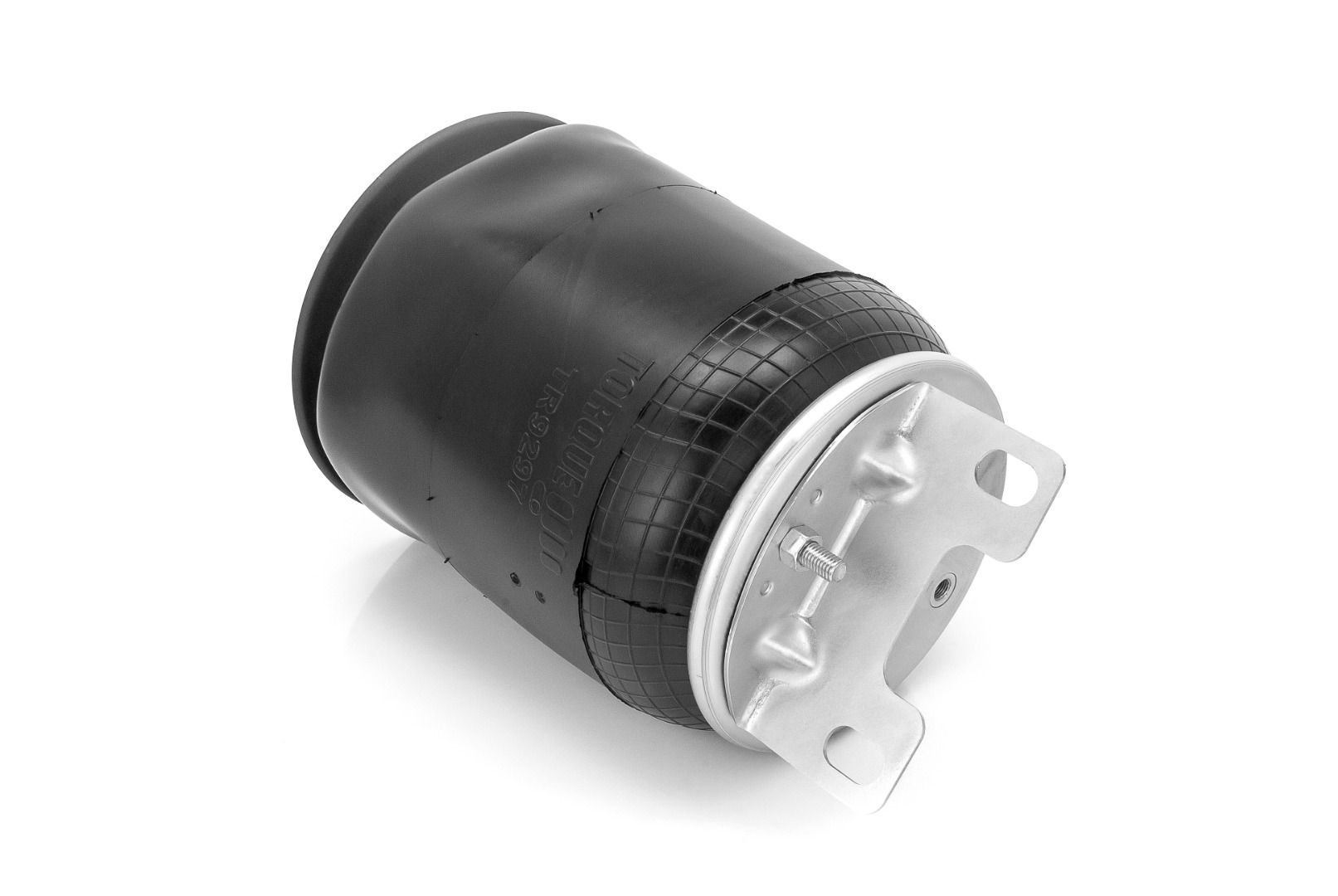

TR9297 | Plastic base - Trailer Air Spring, Hendrickson, Replaces W01-358-9297, 50898-2, 1R12-402
| Contitech: | 64410, 66978, 9 10-18.5 P 520, 9 10-18.5 P 935, 910-18.5P935, 910-18.5P520 (No Bracket), 910-17.5P520 |
| Firestone: | 9297, W013589297, W01-358-9297, W014559297, W01-455-9297 |
| Goodyear: | 1R12402, 1R12-402, 1S12029, 1S12-029 |
| Hendrickson: | 50898001, 50898-001, 50898002, 50898-002, 50898002L, 50898-002L, 508982, 50898-2, 64651-2, 50898-1 |
| Triangle: | 8520 |
| Automann: | AB1DK23M-9297, 566.CT66978 |

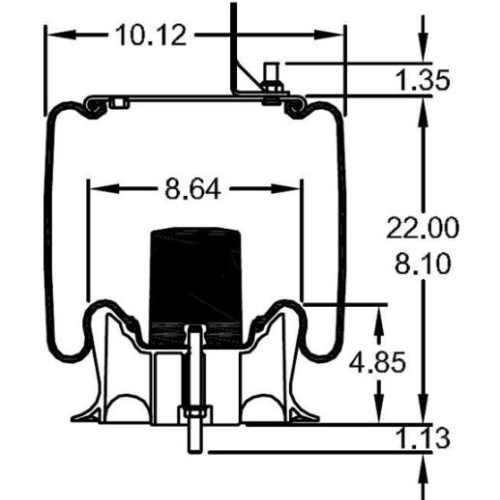

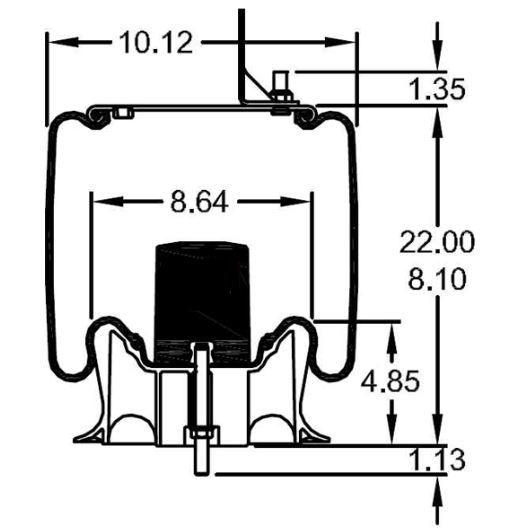

| Extended Height: | 22.00" |
| Compressed Height: | 8.10" |

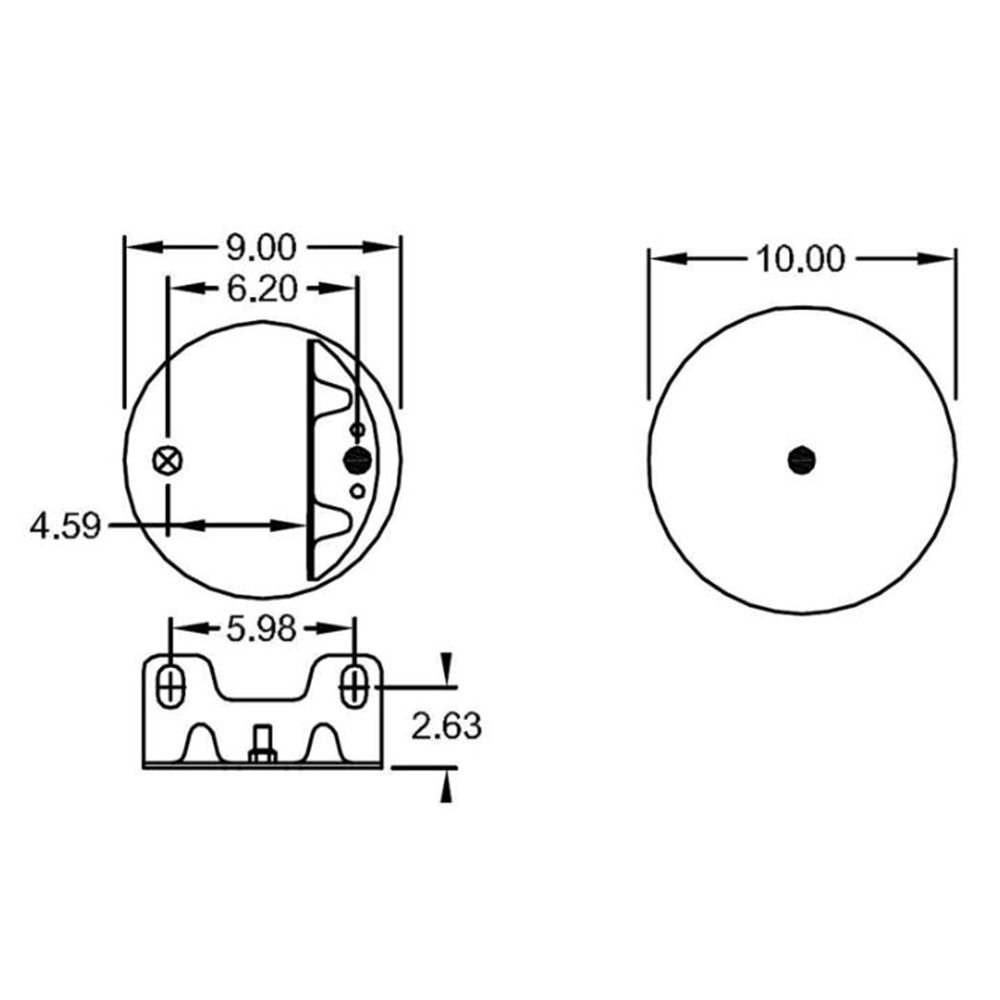

| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 16.1 lbs |
