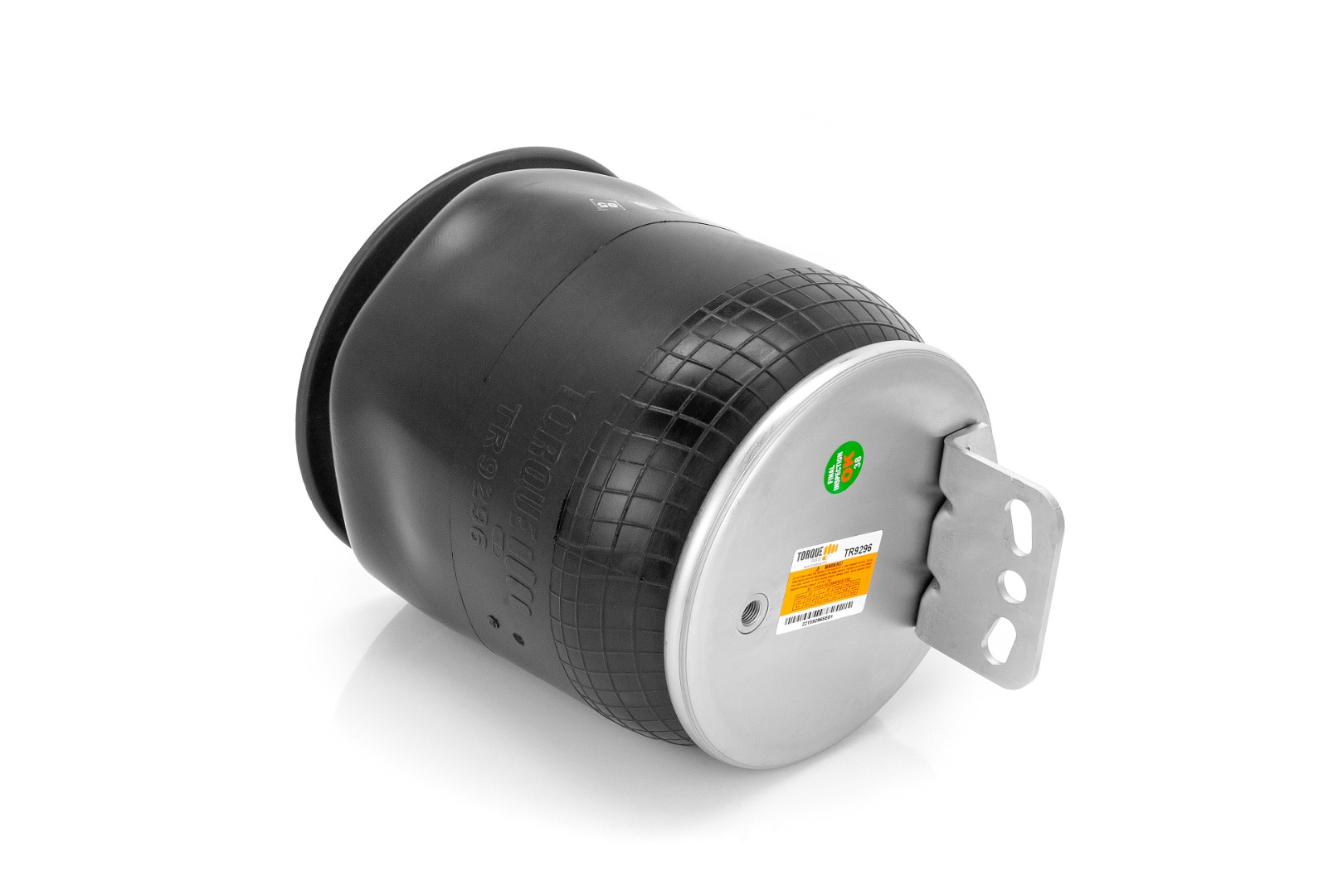

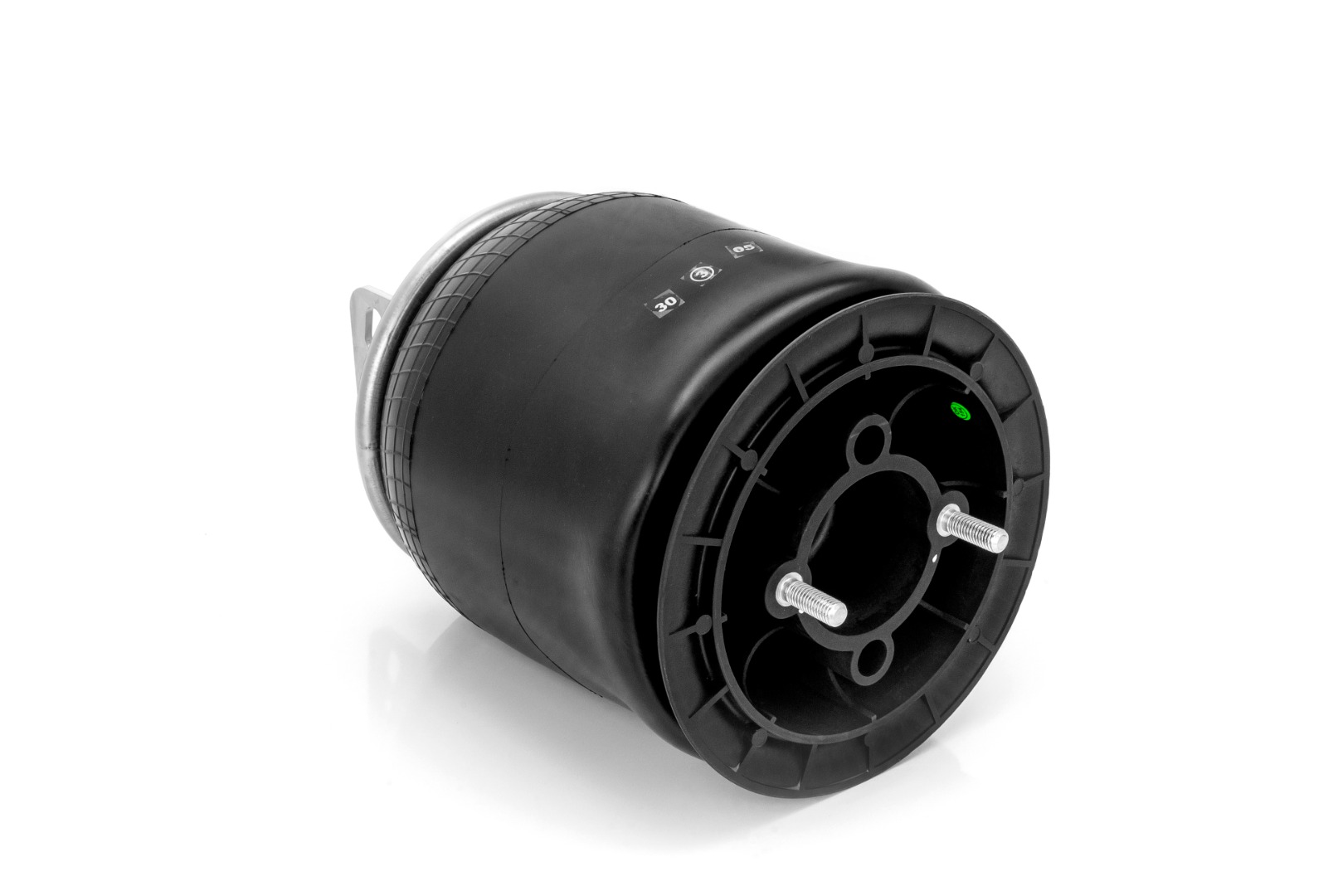

TR9296 | Air Spring for Volvo Trucks
Description : AB1DK23K-9296, 566.CT69643, 8169869, 1R12400
Part Number : TR9296
TR9296 | Plastic base - Truck Air Spring, Volvo, Replaces 1R12-400, 8061151, W01-358-9296
| Contitech: | 161059, 64310, 69643, 9 10-16 P 416 |
| Firestone: | 9296, W013589296, W01-358-9296 |
| Goodyear: | 1R12400, 1R12-400, 1S12022, 1S12-022 |
| Loadguard: | SC2760 |
| Triangle: | 8416 |
| Volvo: | 8061151, 8169869 |
| Volvo/White: | 8061151, 8169868 |
| Automann: | AB1DK23K-9296, 566.CT69643 |

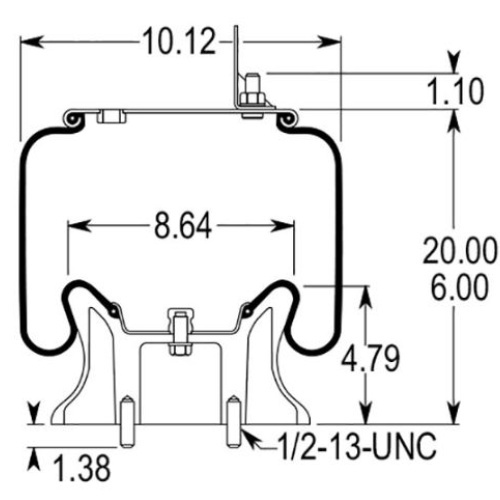

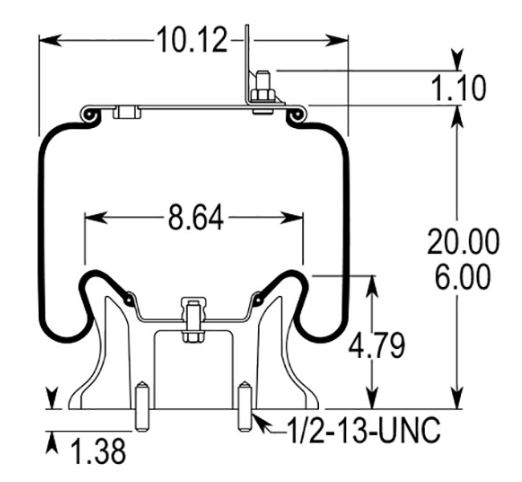

| Extended Height: | 20.00" |
| Compressed Height: | 6.00" |

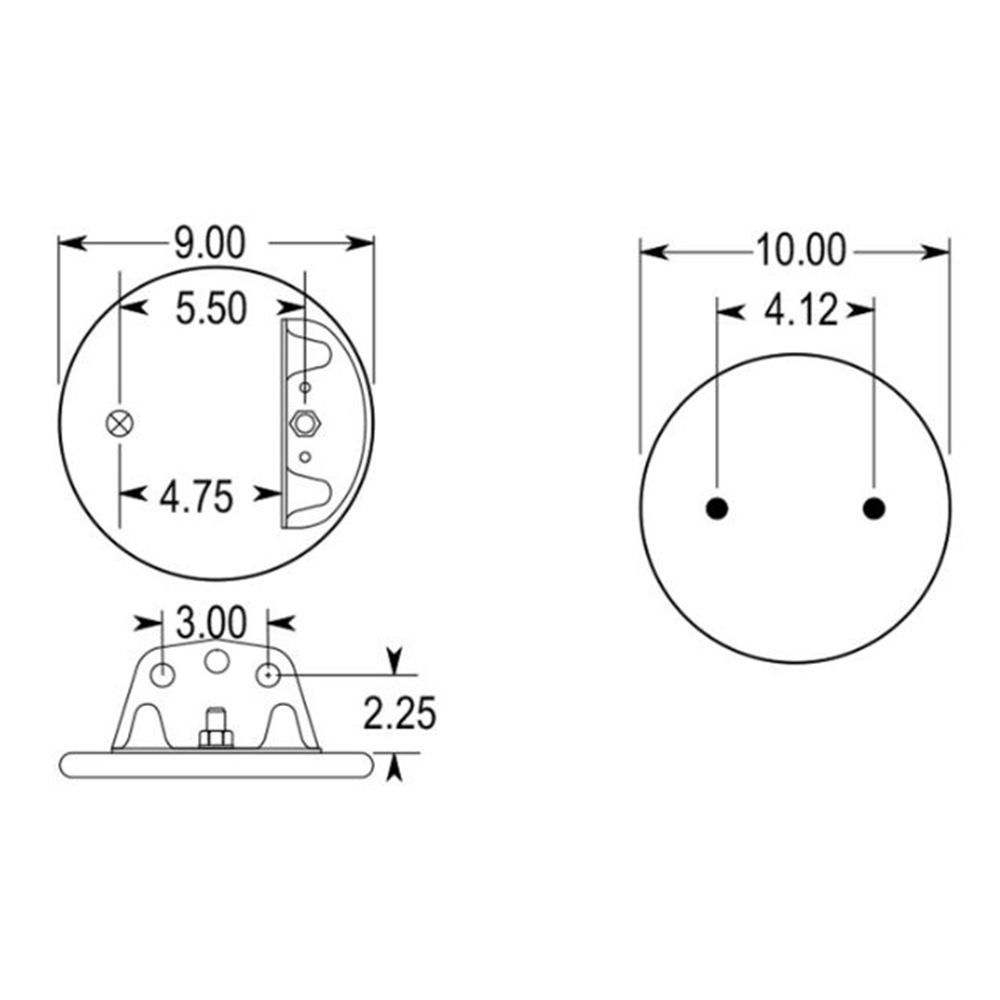

| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 17.20 lbs |
