TR9270 | Trailer Air Spring
Description : 3946473, 85101147, W013589270, C20010
Part Number : TR9270

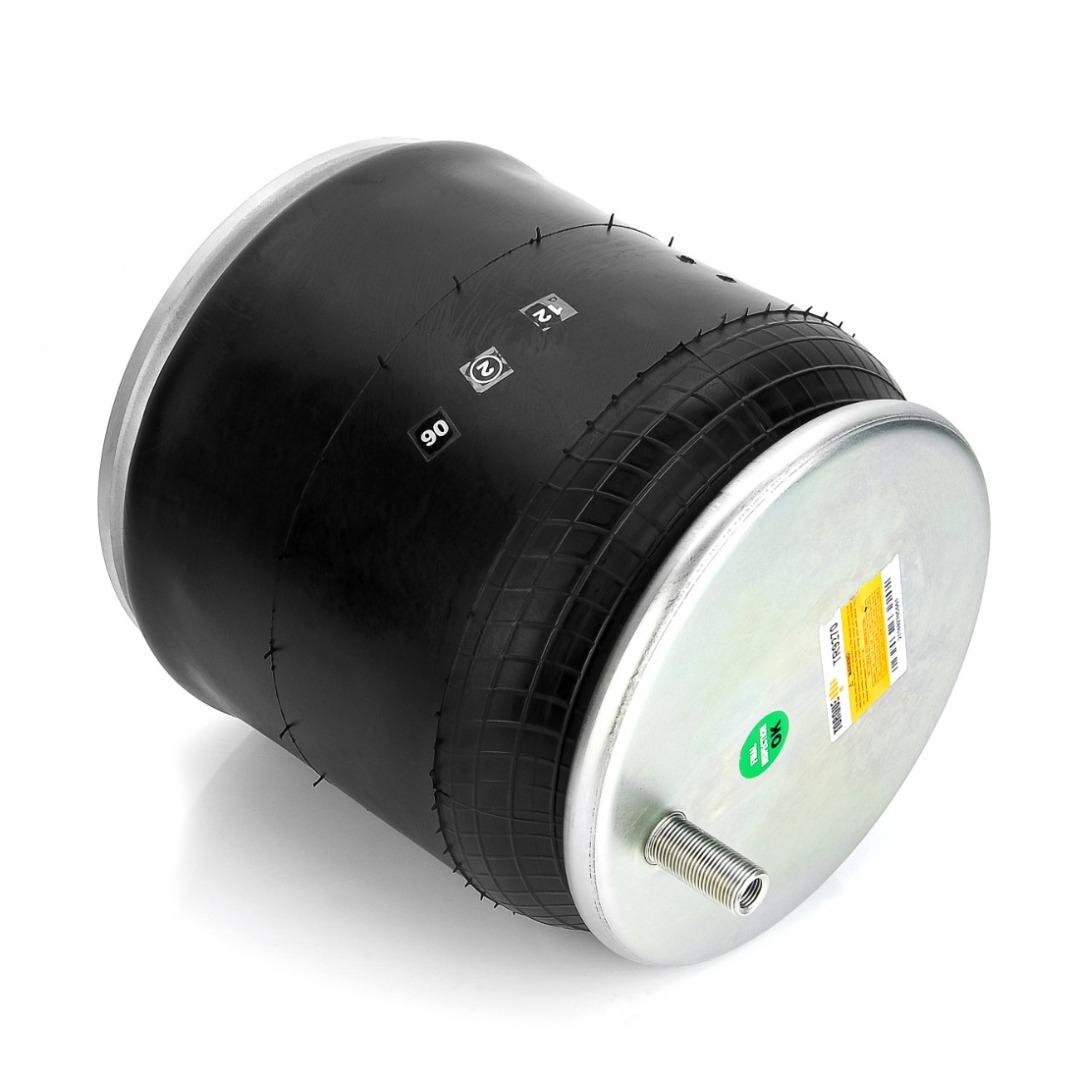

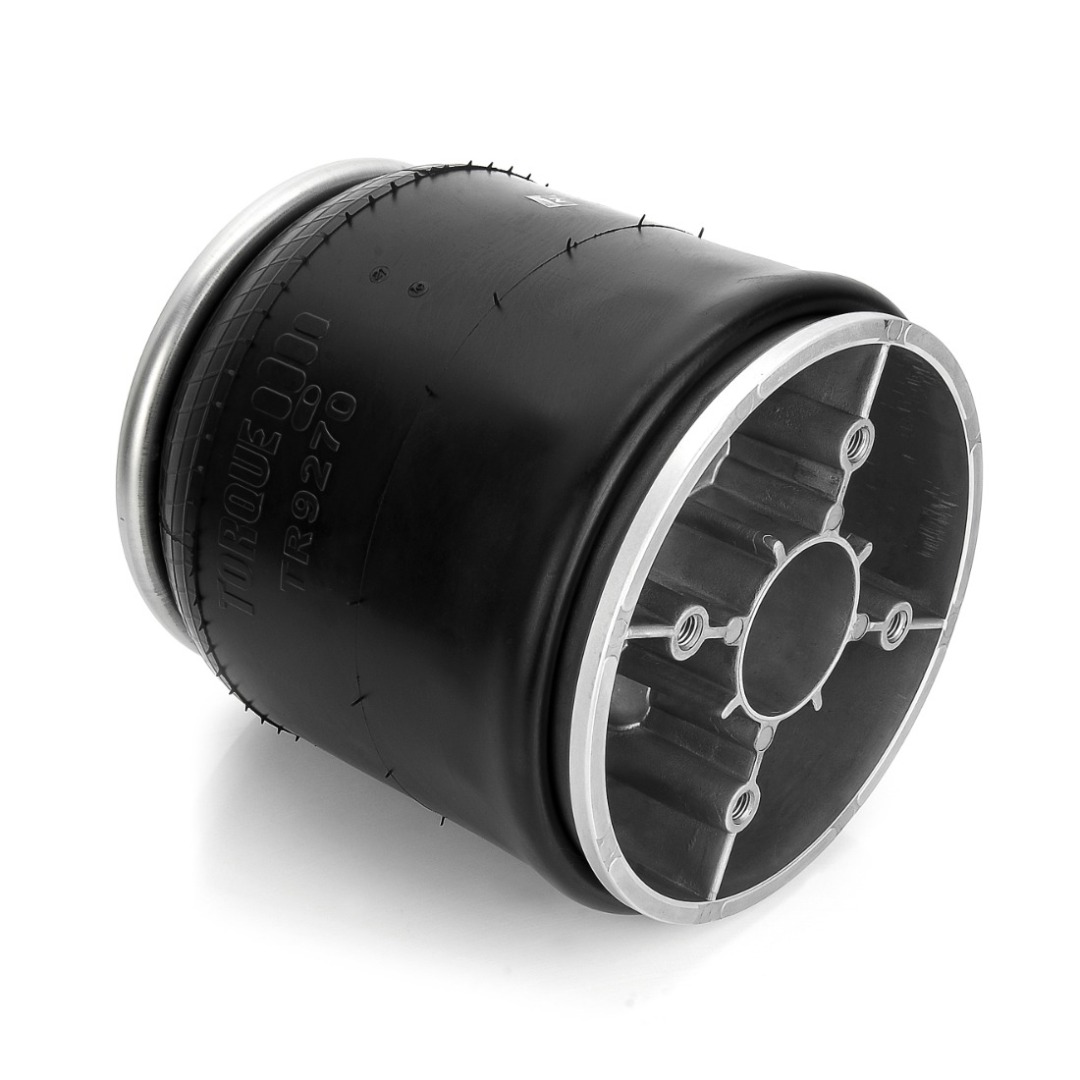

TR9270 | Aluminum base - Trailer reversible sleeve air spring, Hendrickson, Replaces S-20010, 1R13-077, W01-358-9270
| Alliance: | ABP N32 019270 |
| BWP: | M-3542 |
| Contitech: | 161034, 64287, 9 10-13.5 S 433, 910-13.5S433 |
| Dayton: | 352-9270 |
| Firestone: | 9270, W013589270, W01-358-9270 |
| Goodyear: | 1R13077, 1R13-077, 1R13102, 1R13-102, 1R13119, 1R13-119 |
| Hendrickson: | C20010, C-20010, C25559, C-25559, S20010, S-20010, S25559, S-25559, S-21208, 520010, 521208, 525559 |
| Neway: | G2299270300 |
| Ridewell: | 1003589270C |
| Triangle: | 8433 |
| Volvo/White: | 3946473, 85101147 |
| Watson and Chalin: | AS0084 |
| Watson&Chalin: | AS0084, AS-0084 |
| Automann: | AB1DK23I-9270, 566.CT64287 |
| Other: | TR9270 |

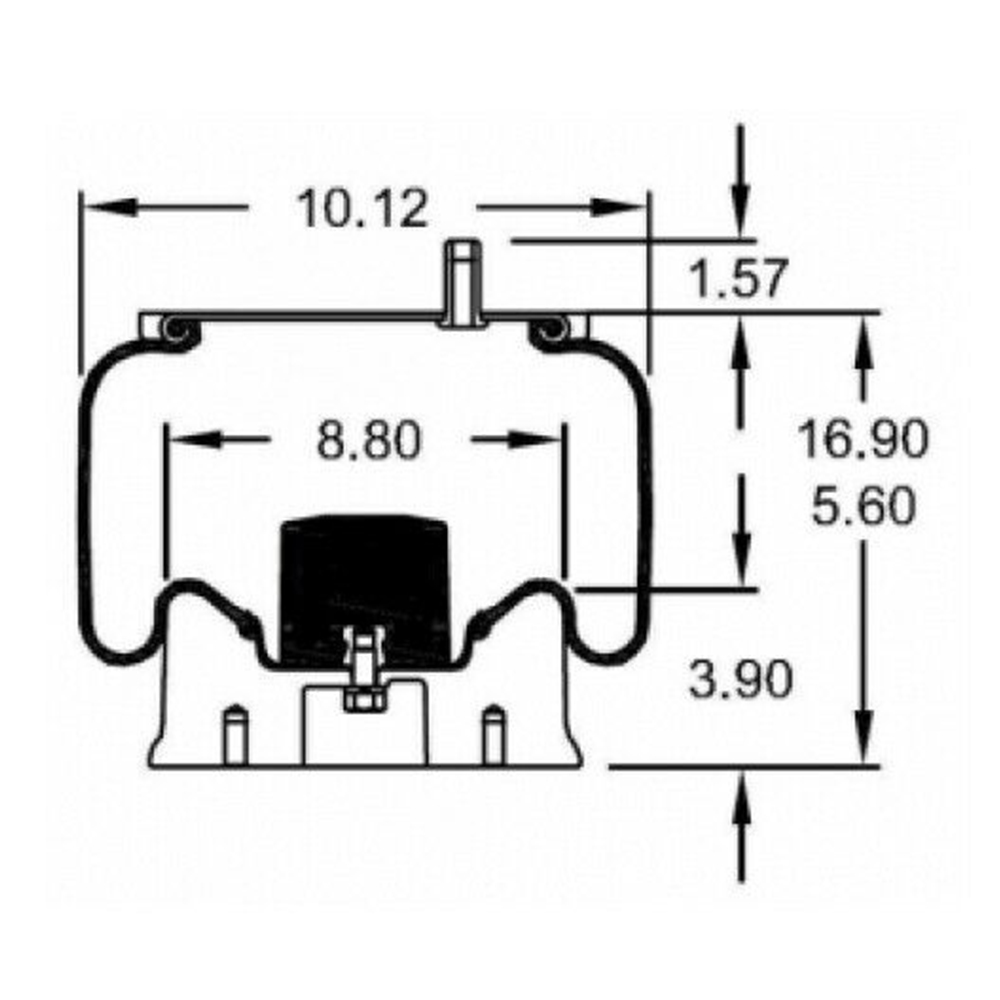

| Extended Height: | 16.90" |
| Compressed Height: | 5.60" |

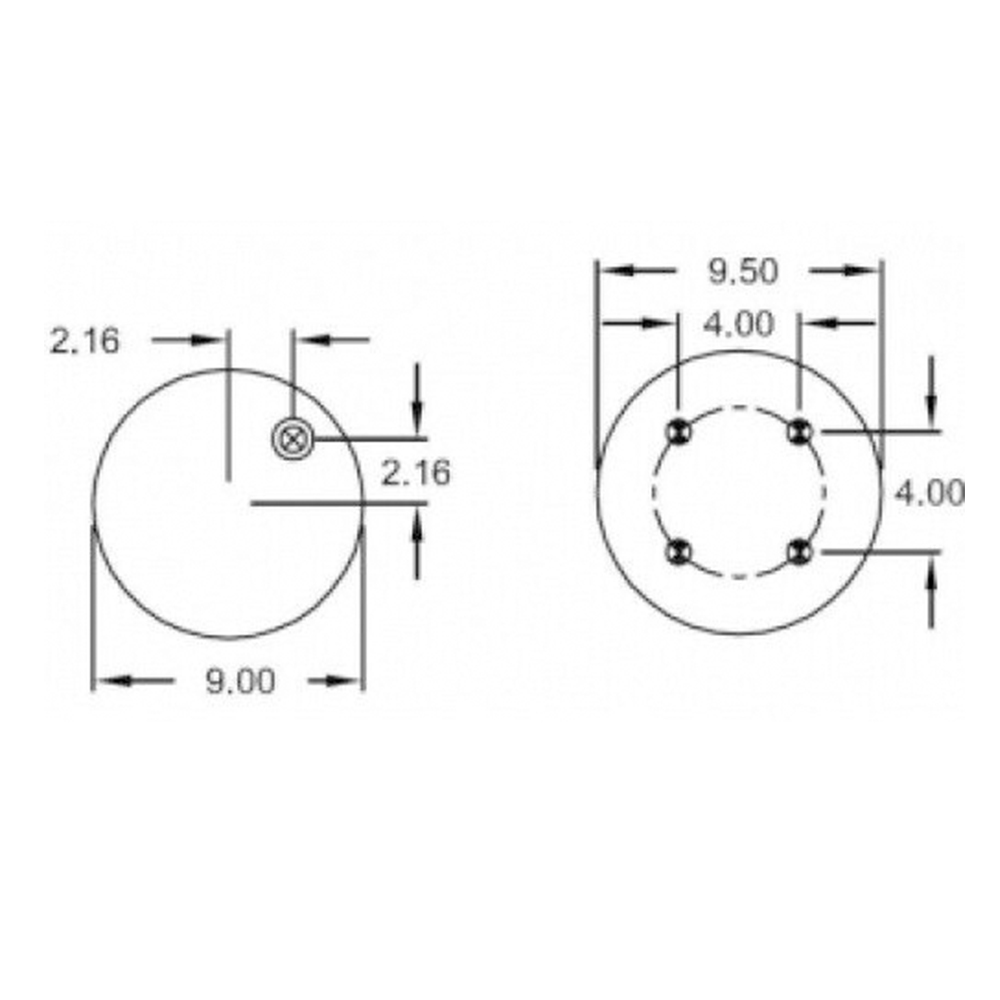

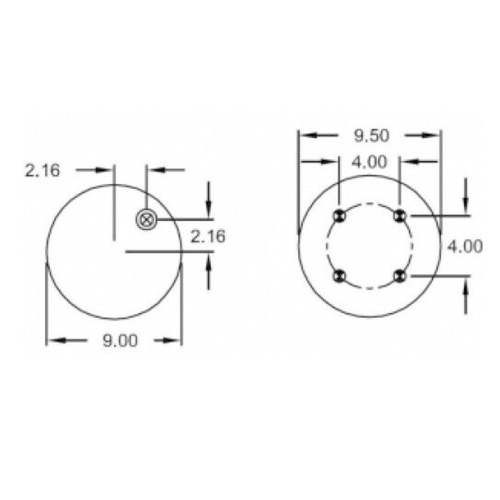

| Top Plate Width: | 9.00" |
| Piston Width: | 9.50" |
| Weight: | 14.40 lbs |
