TR8774 | Trailer Air Spring
Description : S25873, W013588774, 1R14172, AS0159
Part Number : TR8774

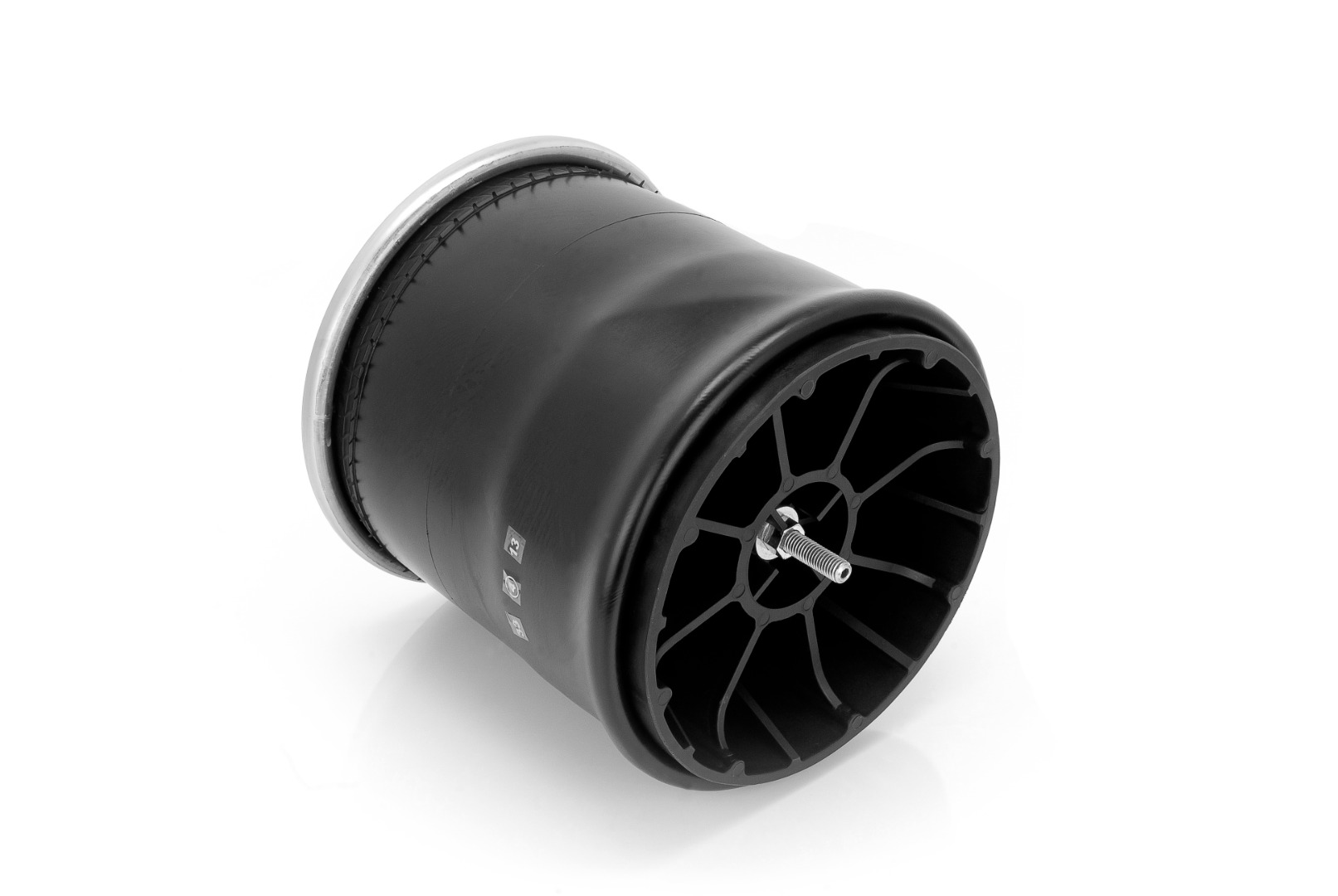

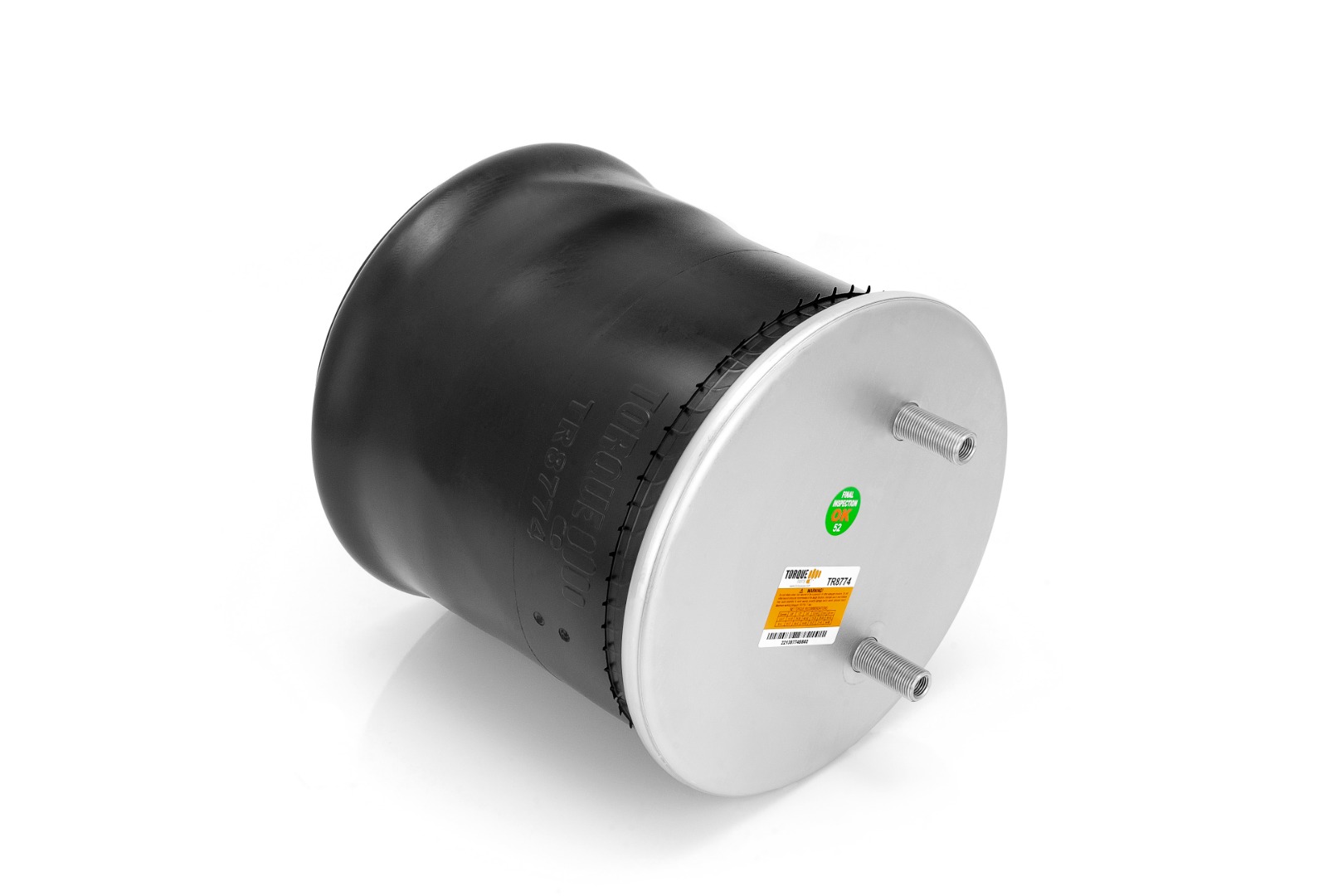

TR8774 | Plastic base - Trailer reversible sleeve air spring, Hendrickson Intraax, Replaces S-25873, S-27341, W01-358-8774
| Contitech: | 11 10.5F-17 P 745, 65593 |
| Firestone: | 8774, W013588774, W01-358-8774 |
| Goodyear: | 1R14172, 1R14-172, 1R14190, 1R14-190 |
| Hendrickson: | S25873, S-25873, S27341, S-27341, S-25873 for Intraax AAT 30K Models |
| Watson&Chalin: | AS0159, AS-0159, AS-0159-1G, AS0159G, AS-0159G |
| Other: | TR8774 |

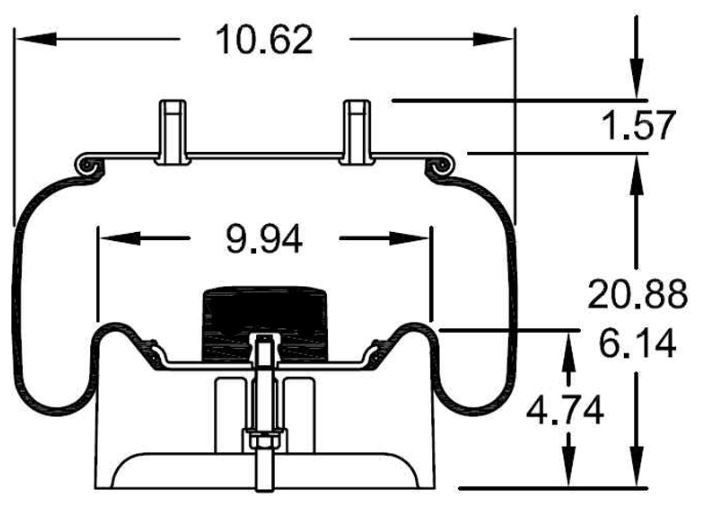

| Extended Height: | 20.88" |
| Compressed Height: | 6.14" |

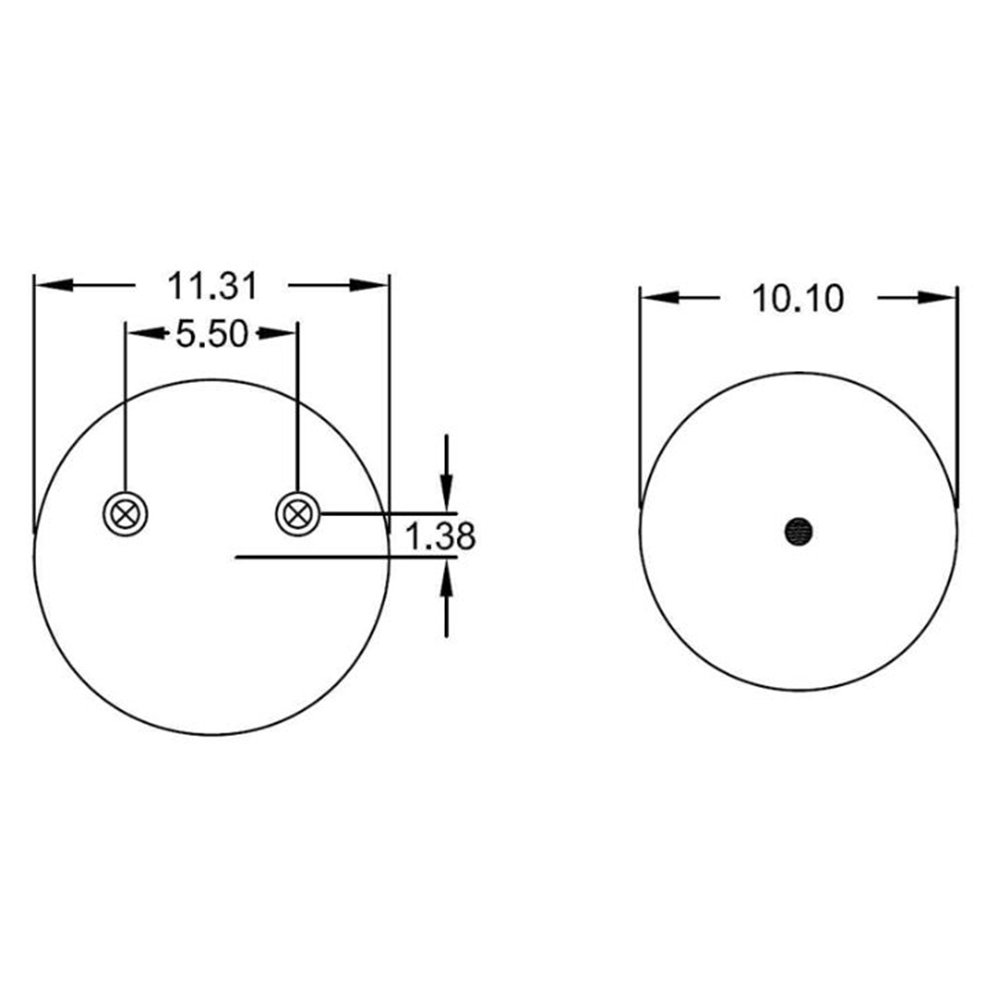

| Top Plate Width: | 11.31" |
| Piston Width: | 10.10" |
| Weight: | 18.2 lbs |
