TR8713 | Air Spring
Description : C22948, C-22948, S22948, S-22948, 10 10-16 P 533, 64636
Part Number : TR8713

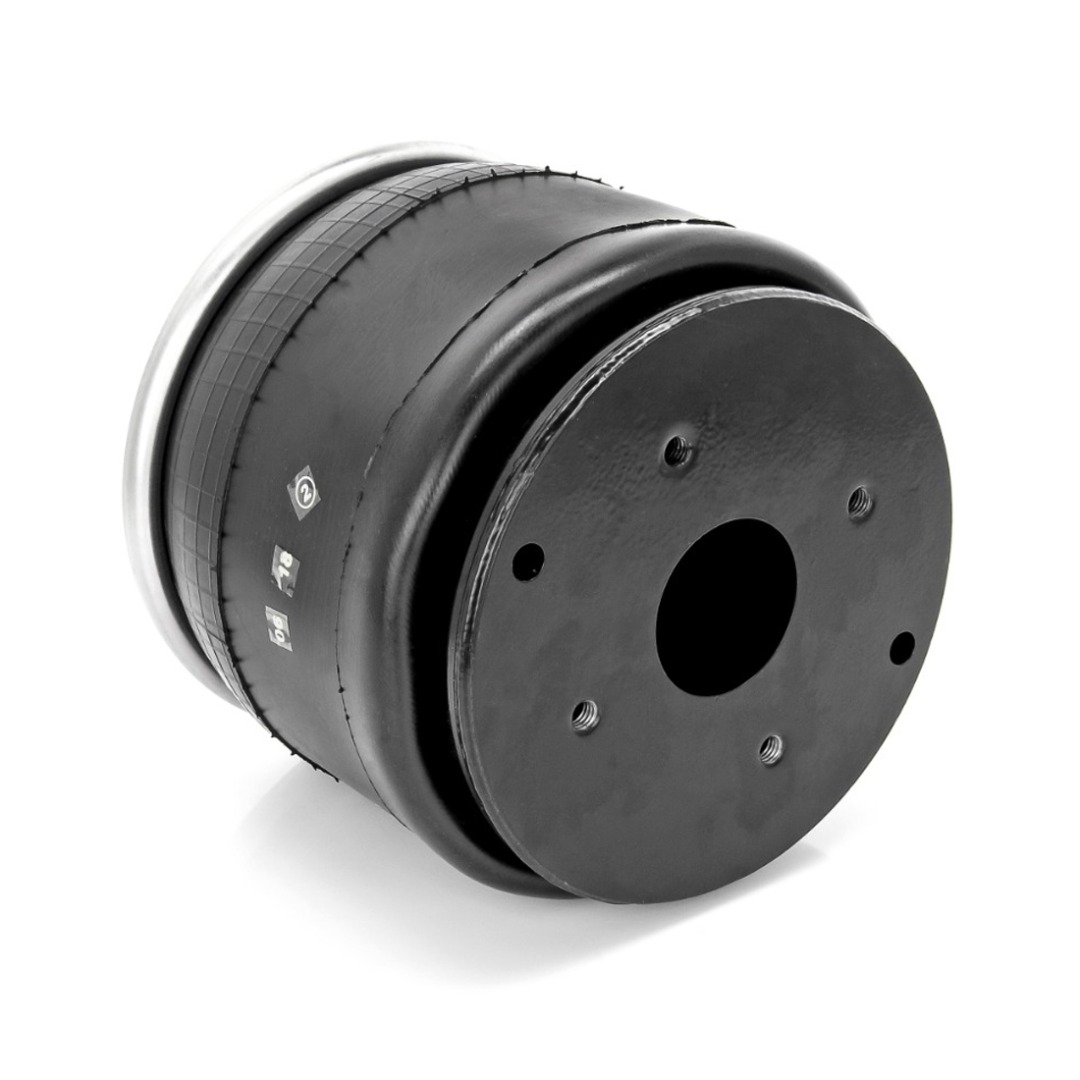

TR8713 | plastic base - Truck reversible sleeve air spring, Hendrickson, Replaces C-22948, S-22948, W01-455-8713, 1R13-140
| Contitech: | 10 10-16 P 533, 64636, 10 10-16 S 533 |
| Firestone: | 8713, 8727, W013588713, W01-358-8713, W014558713, W01-455-8713, W014558727, W01-455-8727 |
| Goodyear: | 1R13140, 1R13-140, 1R13176, 1R13-176, 1R13263, 1R13-263, 1R13323, 1R13-323 |
| Hendrickson: | C22948, C-22948, S22948, S-22948 |

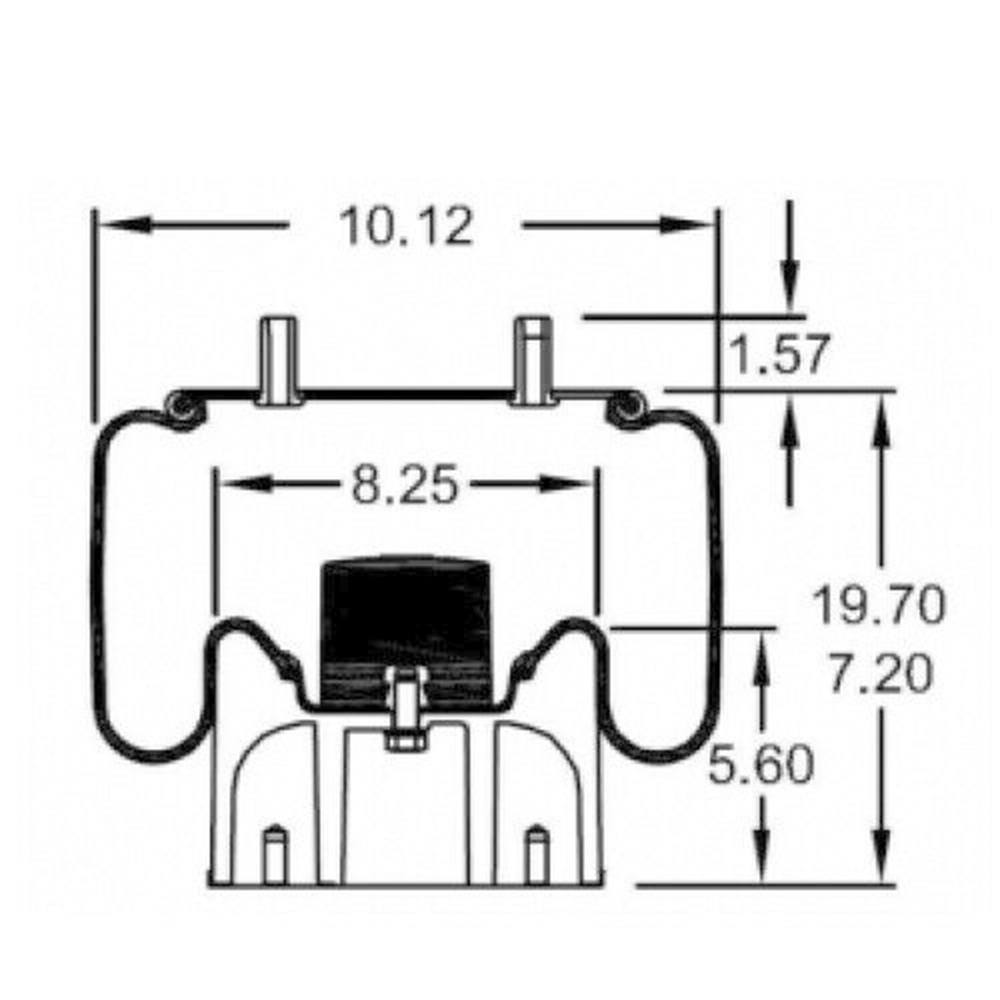

| Extended Height: | 21.50" |
| Compressed Height: | 8.00" |

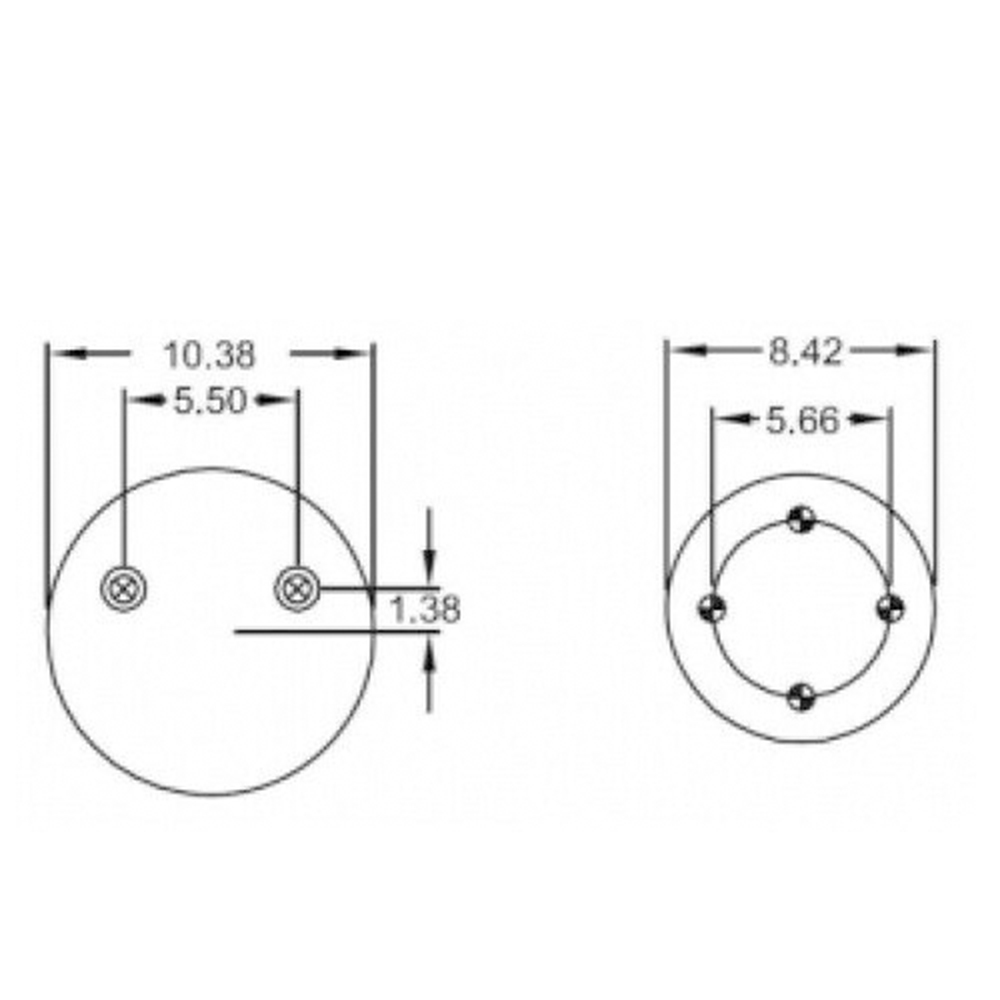

| Top Plate Width: | 10.38" |
| Piston Width: | 9.22" |
| Weight: | 15.6 lbs |
