TR8091 | Trailer Air Spring
Description : 1R14242, S21784, W013588091, 1R14093
Part Number : TR8091

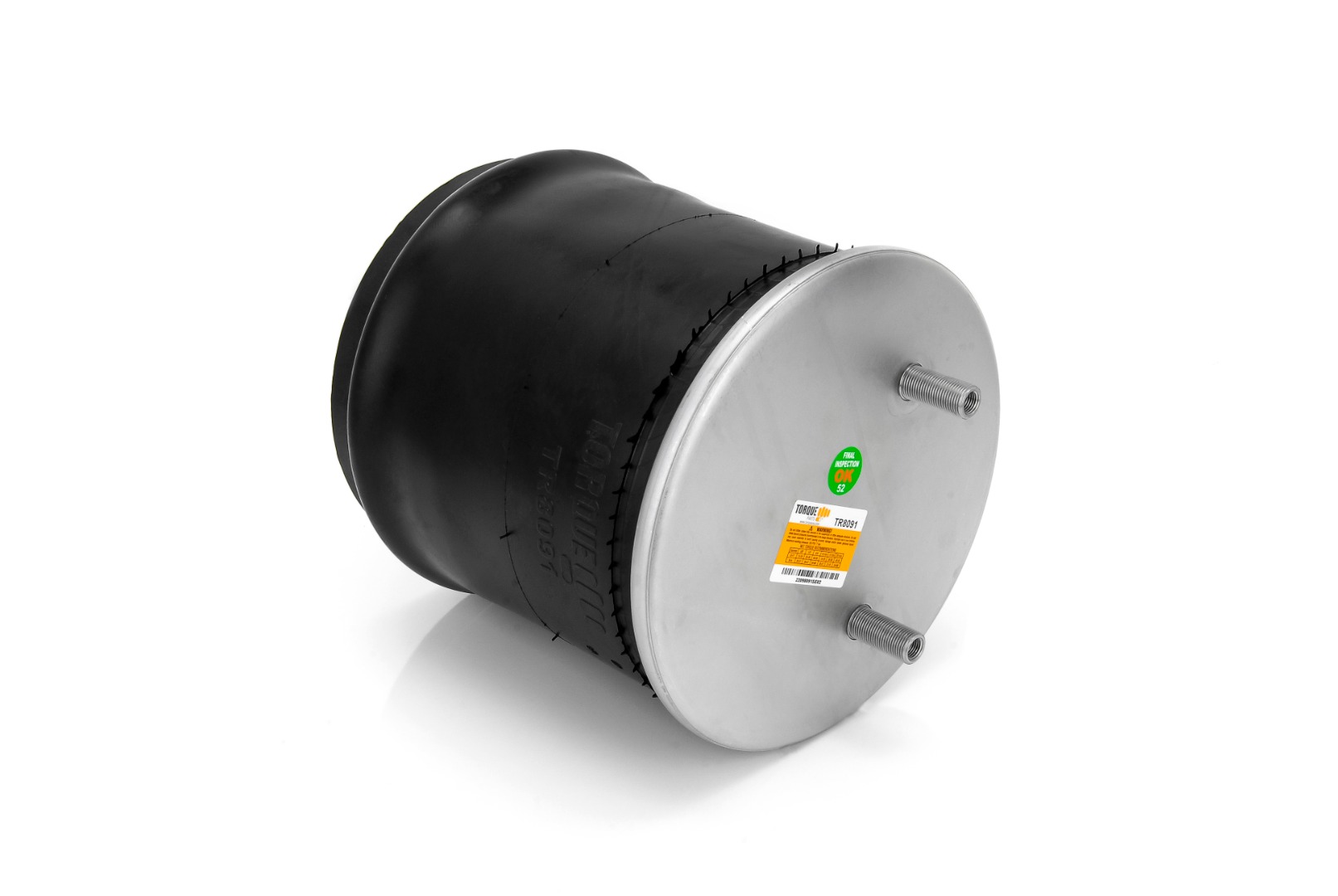

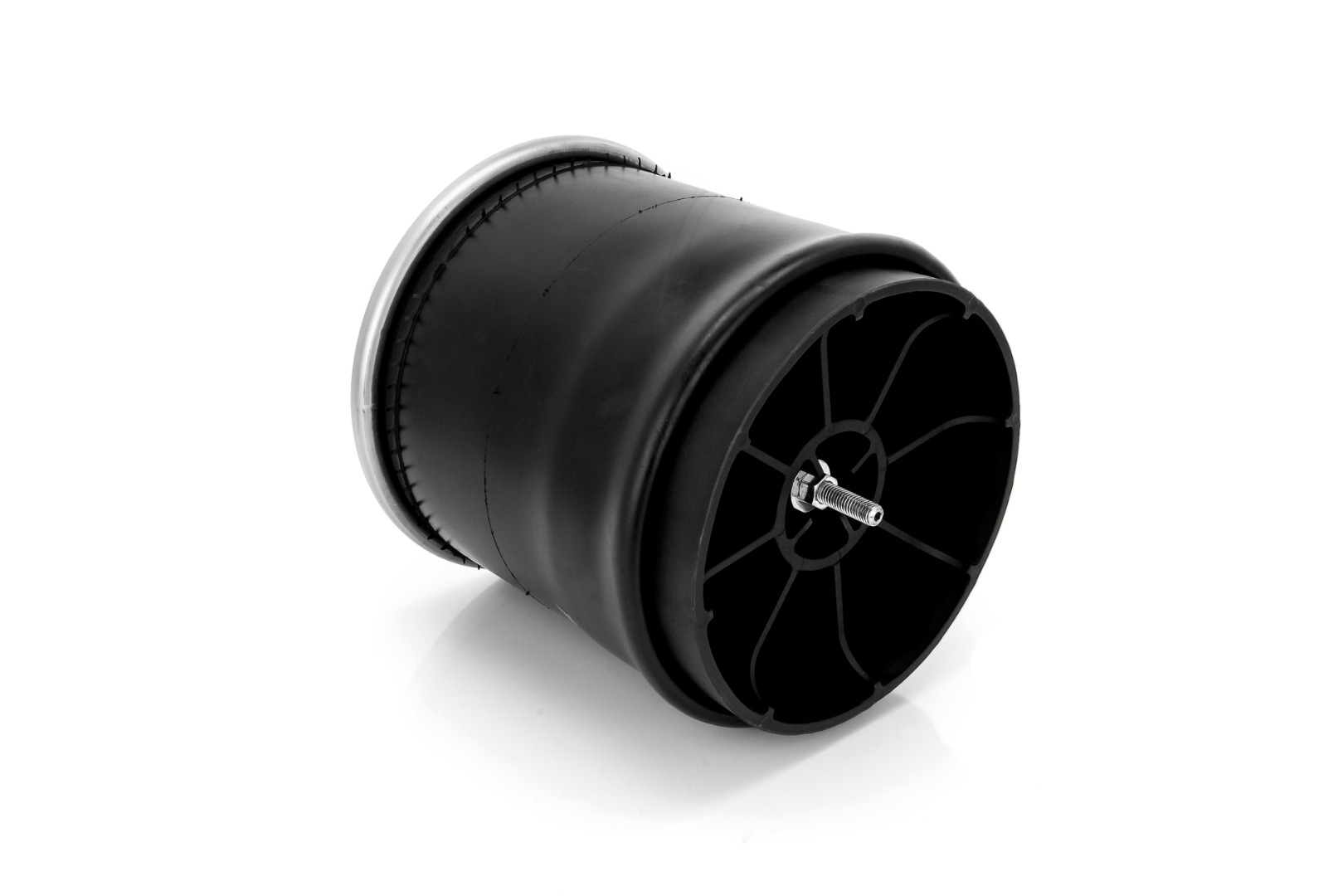

TR8091 | Plastic base - Trailer reversible sleeve air spring, Hendrickson, Replaces S-20901, W01-358-8091, 1R14-093
| Contitech: | 1110.5A-16P523, 64421 |
| Firestone: | 8091, W013588091, W01-358-8091 |
| Goodyear: | 1R14093, 1R14-093, 1R14171, 1R14-171 |
| Hendrickson: | S20901, S-20901, S21784, S-21784 |
| Hendrickson Trailer: | C20901, C-20901, S-20901, S-21784 |
| IHC: | 1R14242, 1R14-242 |
| Intraax: | # AA250T (reuse metal disk) / Van Traax # HKA-250 (reuse metal disk) |
| Ridewell: | 1000156 |
| Other: | TR8091 |

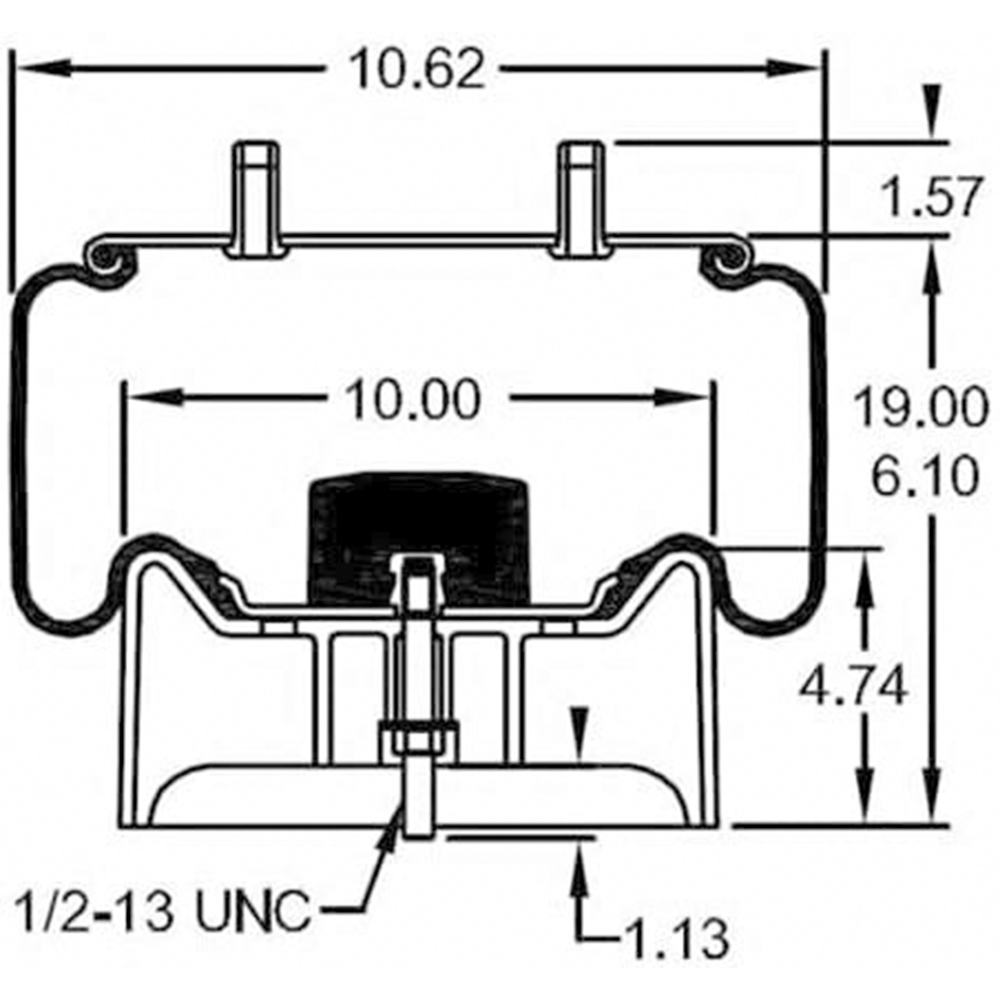

| Extended Height: | 19.00" |
| Compressed Height: | 6.10" |

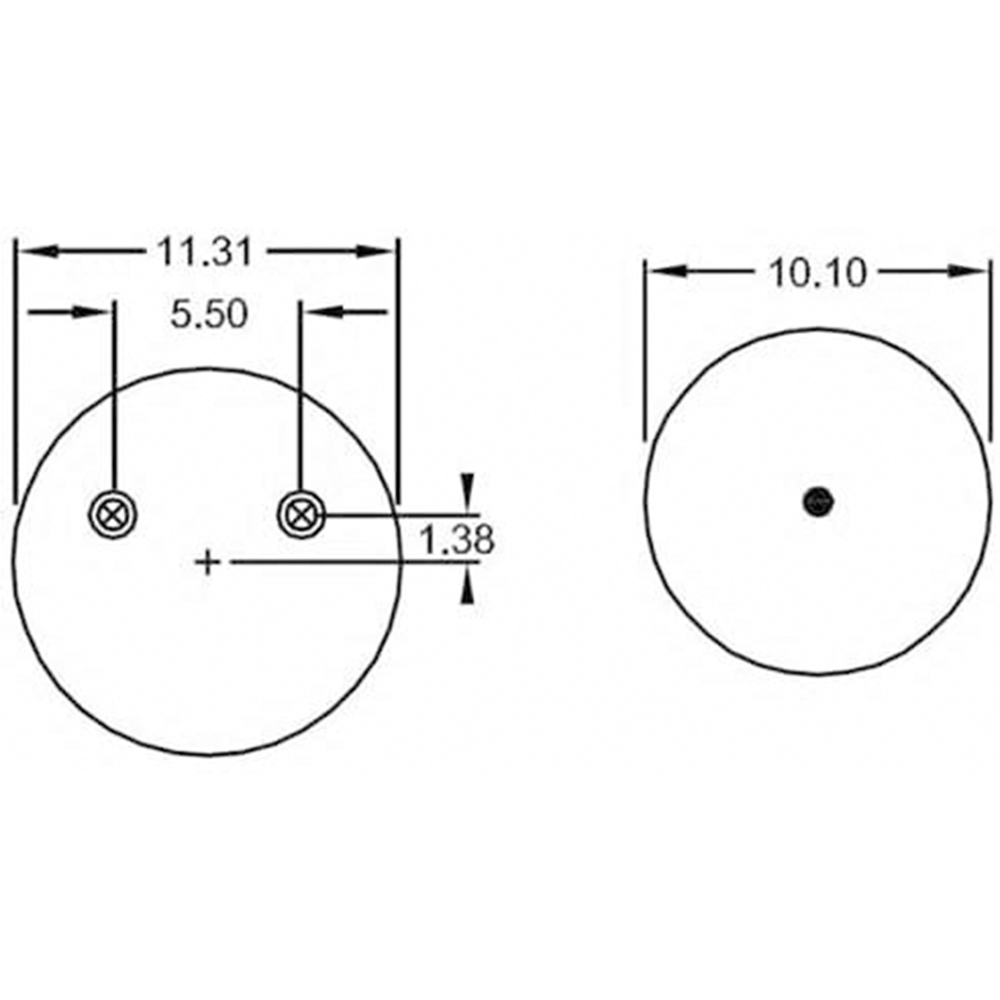

| Top Plate Width: | 11.31" |
| Piston Width: | 10.1 |
| Weight: | 17.9 |
