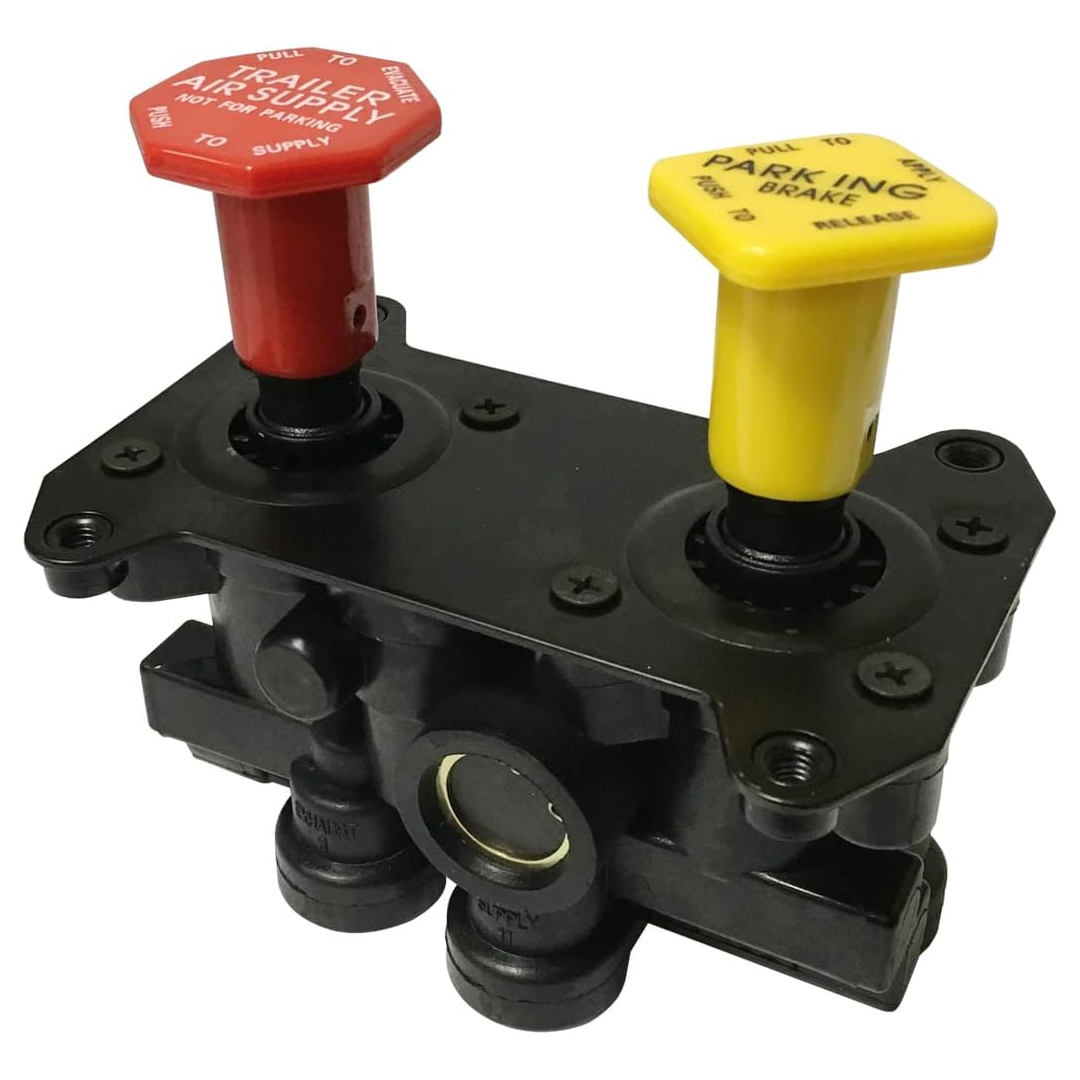

TR800259 | MV-3 Air Brake Manifold Control Dash Valve Threaded Holes
Description : 800259
Part Number : TR800259
TR800259 | MV-3 Air Brake Manifold Control Dash Valve Threaded Holes
| Bendix: | 800259 |
| Mounting: | 1/4-20 UNC-2B (4x) |
| Supply 11 Port: | 3/8 PTC |
| Supply 12 Port: | 3/8 PTC |
| Delivery 21 Port: | 3/8 PTC |
| Delivery 22 Port: | 3/8 PTC |
| Exhaust Port: | 3/8 PTC |
| Tractor Trip Pressure: | 30 ± 10 PSI |
| Trailer Trip Pressure: | 35 ± 10 PSI |
| Trailer Override Pressure: | 25 ± 5 PSI |
| Button(s) Included: | Yes |
| Maximum Operating Temperature: | 200 °F (93 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
