TR7795 | Convoluted Air Spring
Description : S14486, S-14486, 3317, 2B10226
Part Number : TR7795

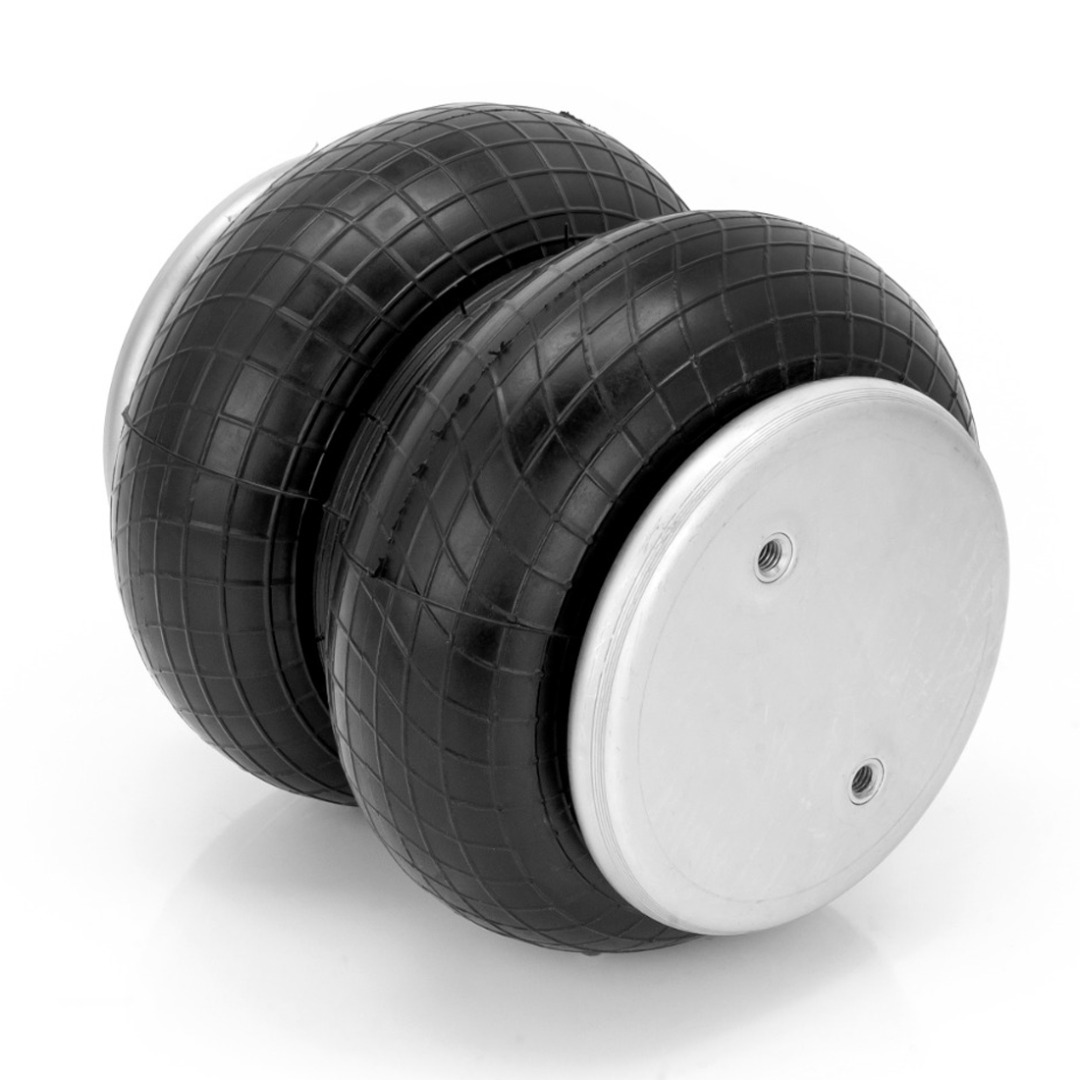

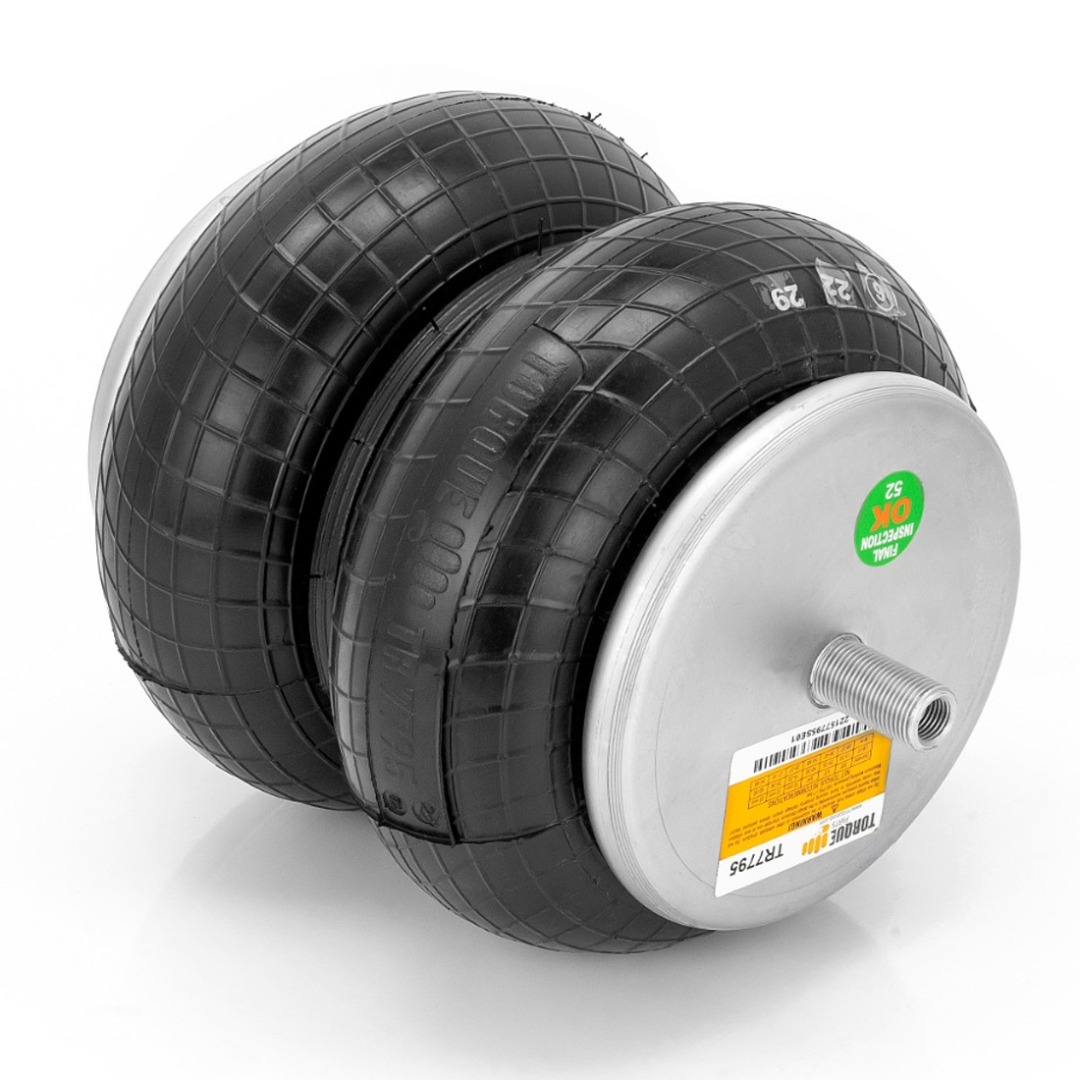

TR7795 | Steel base - Trailer convoluted Air Spring, Replaces S-14486, 3317, 2B10-226, 7795
| Contitech: | 67705, FD 200-19 713 |
| Firestone: | 7795, W01-358-7795, W01-358-7897 |
| Goodyear: | 2B10226, 2B10-226 |
| Hendrickson: | S-14486, 3317 |
| Hendrickson/Turner: | 3317, B14486, S14486 |
| Triangle: | 4524 |
| Other: | TR7795 |

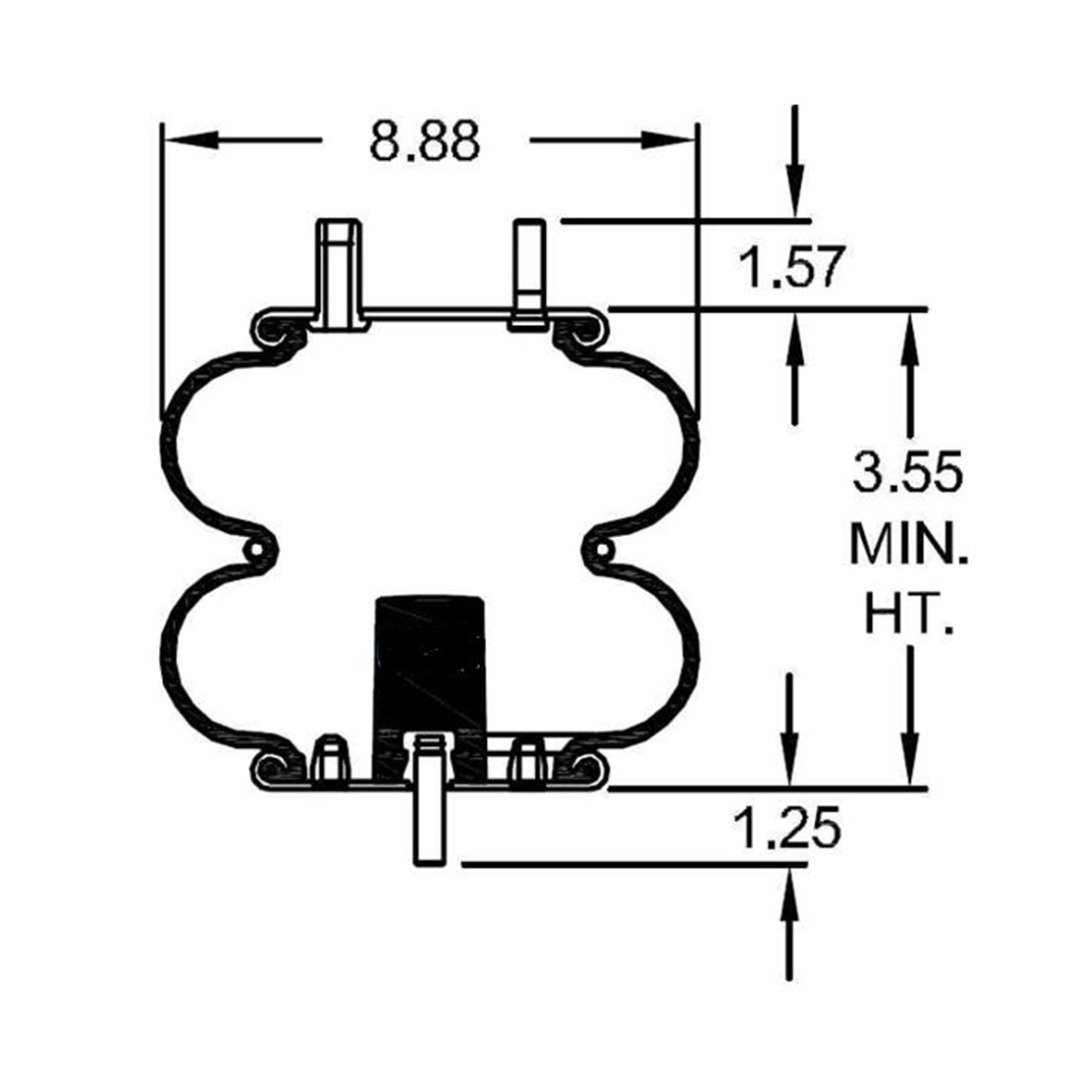

| Compressed Height: | 3.12" |

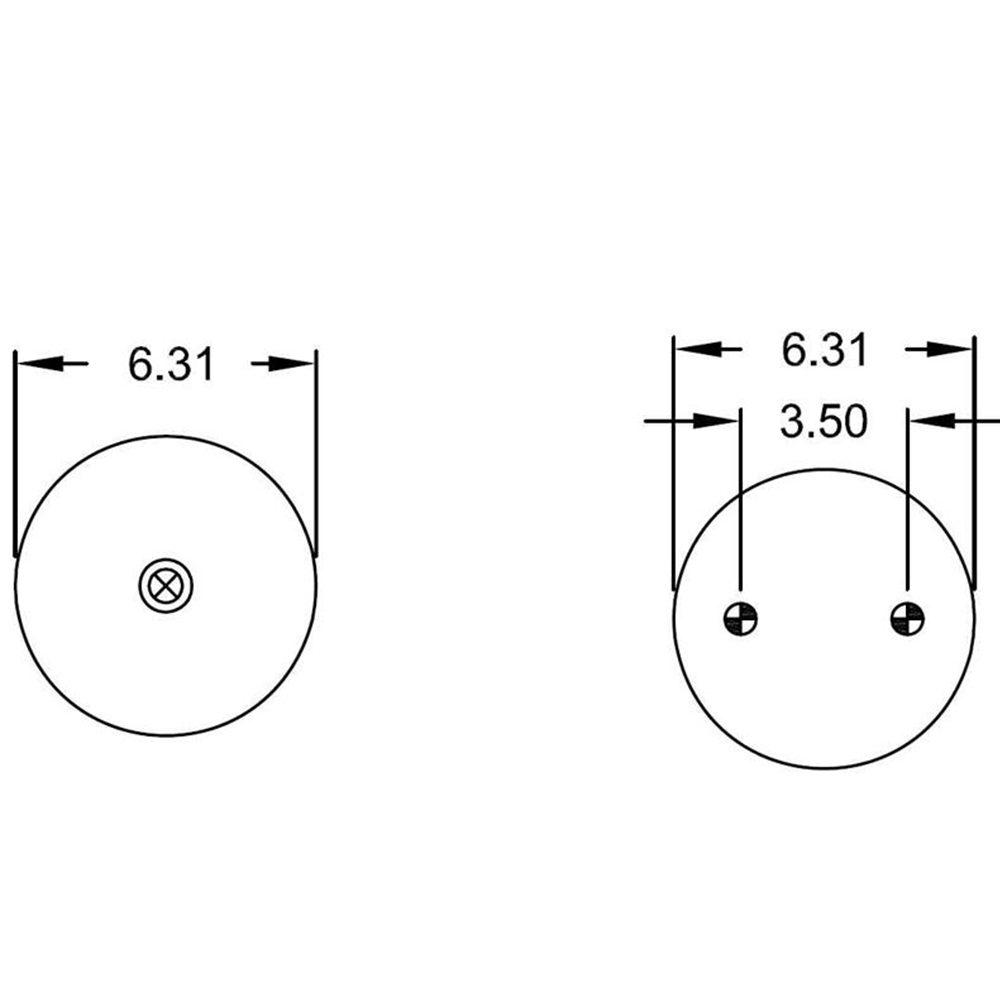

| Top Plate Width: | 6.31" |
| Piston Width: | 6.31" |
| Weight: | 6.4 lbs |
