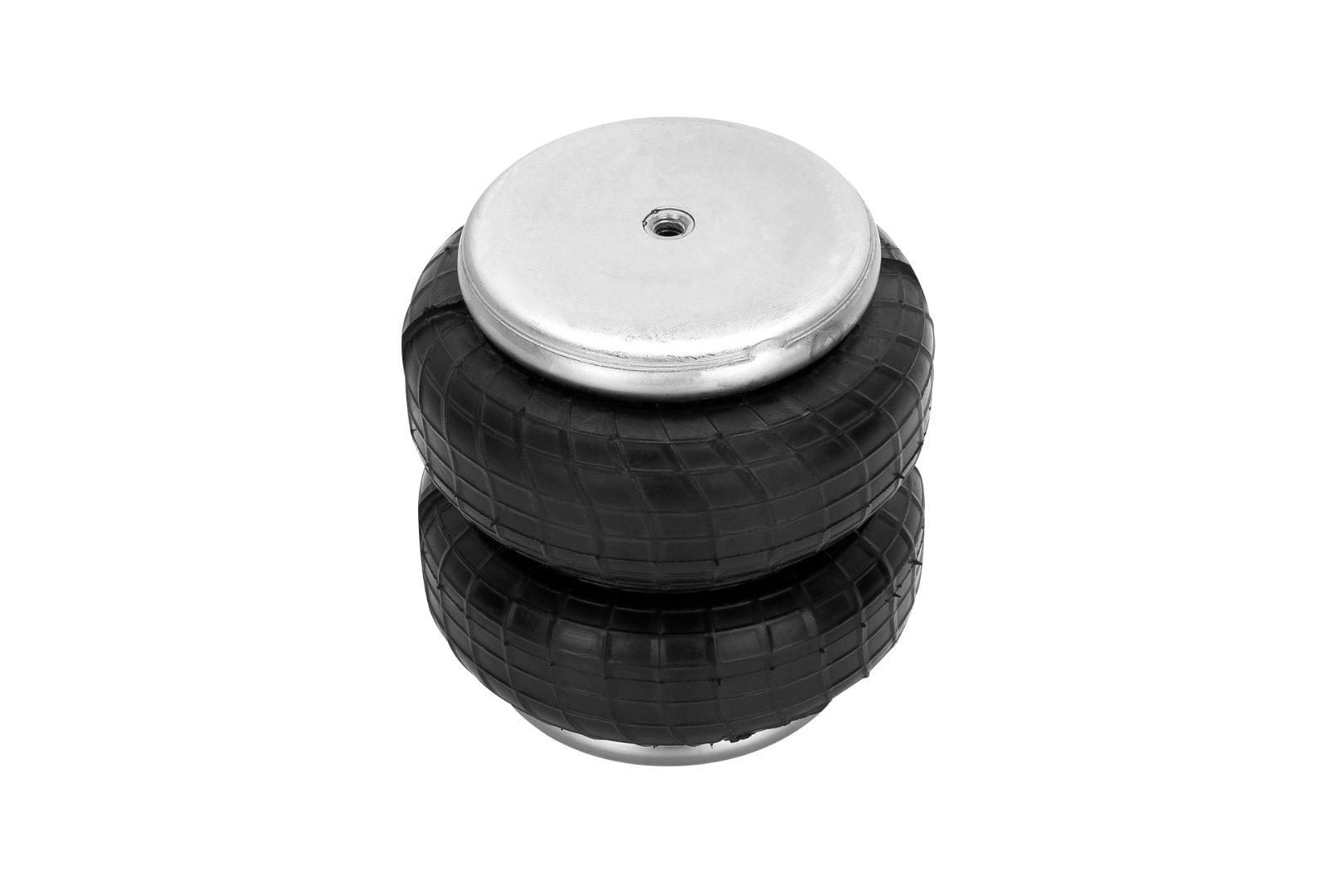

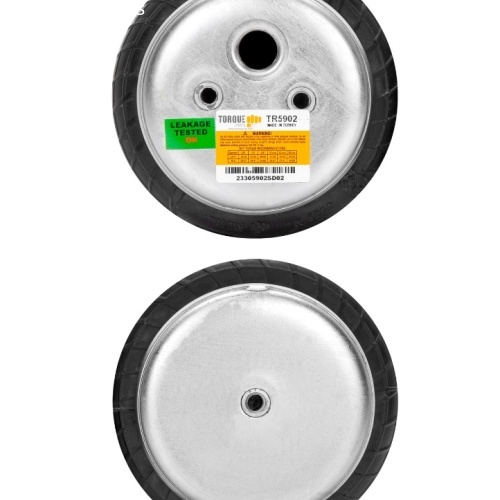

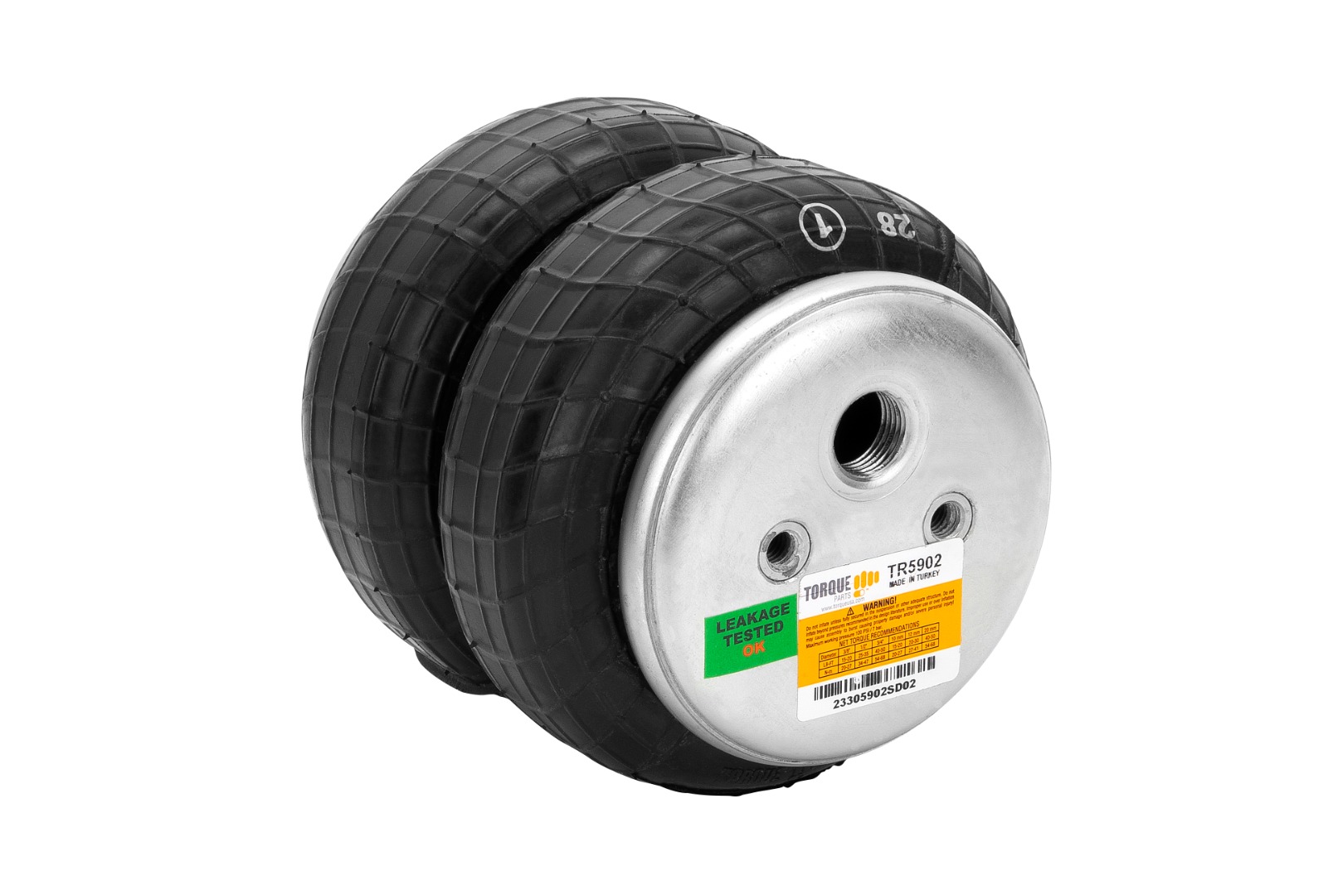

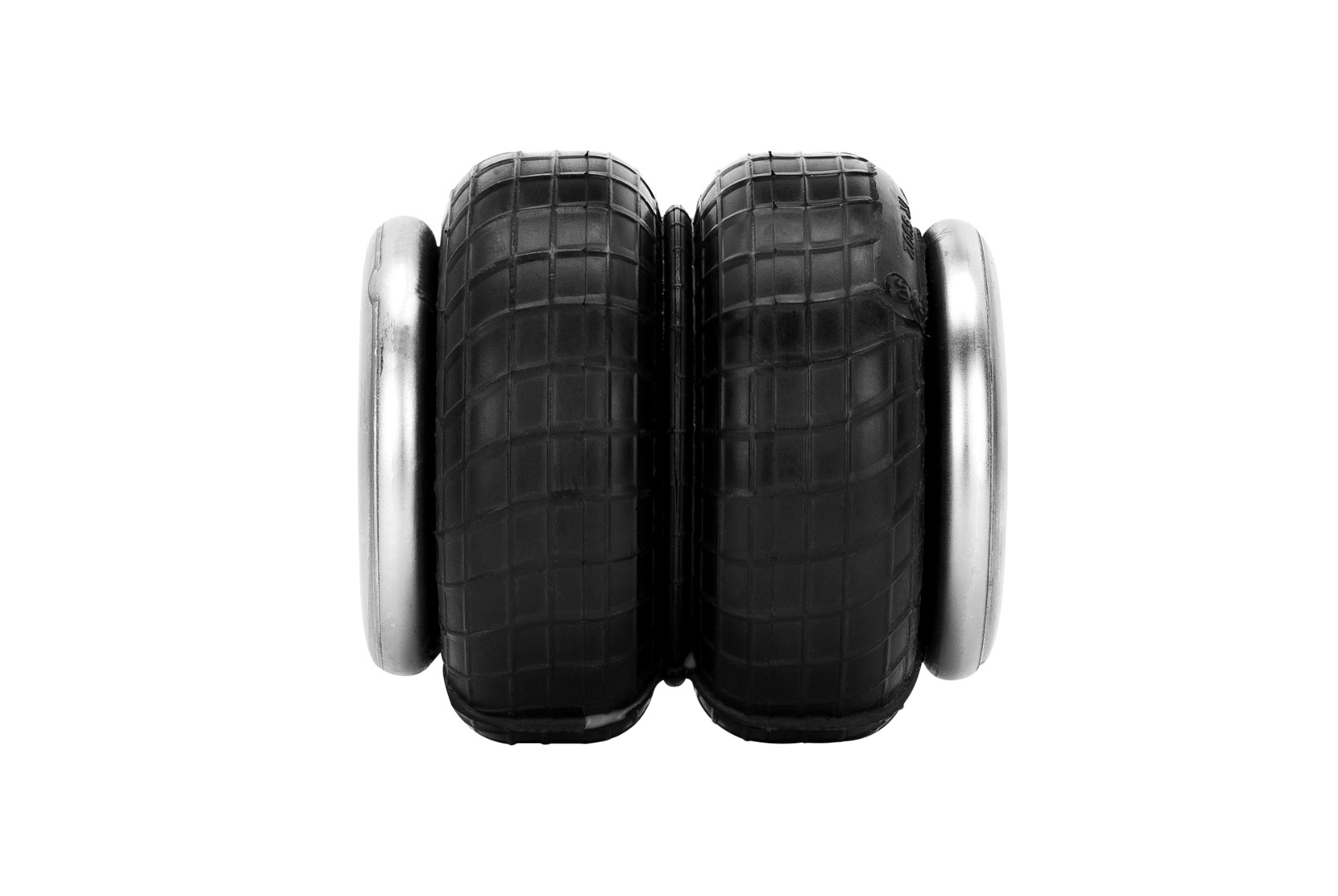

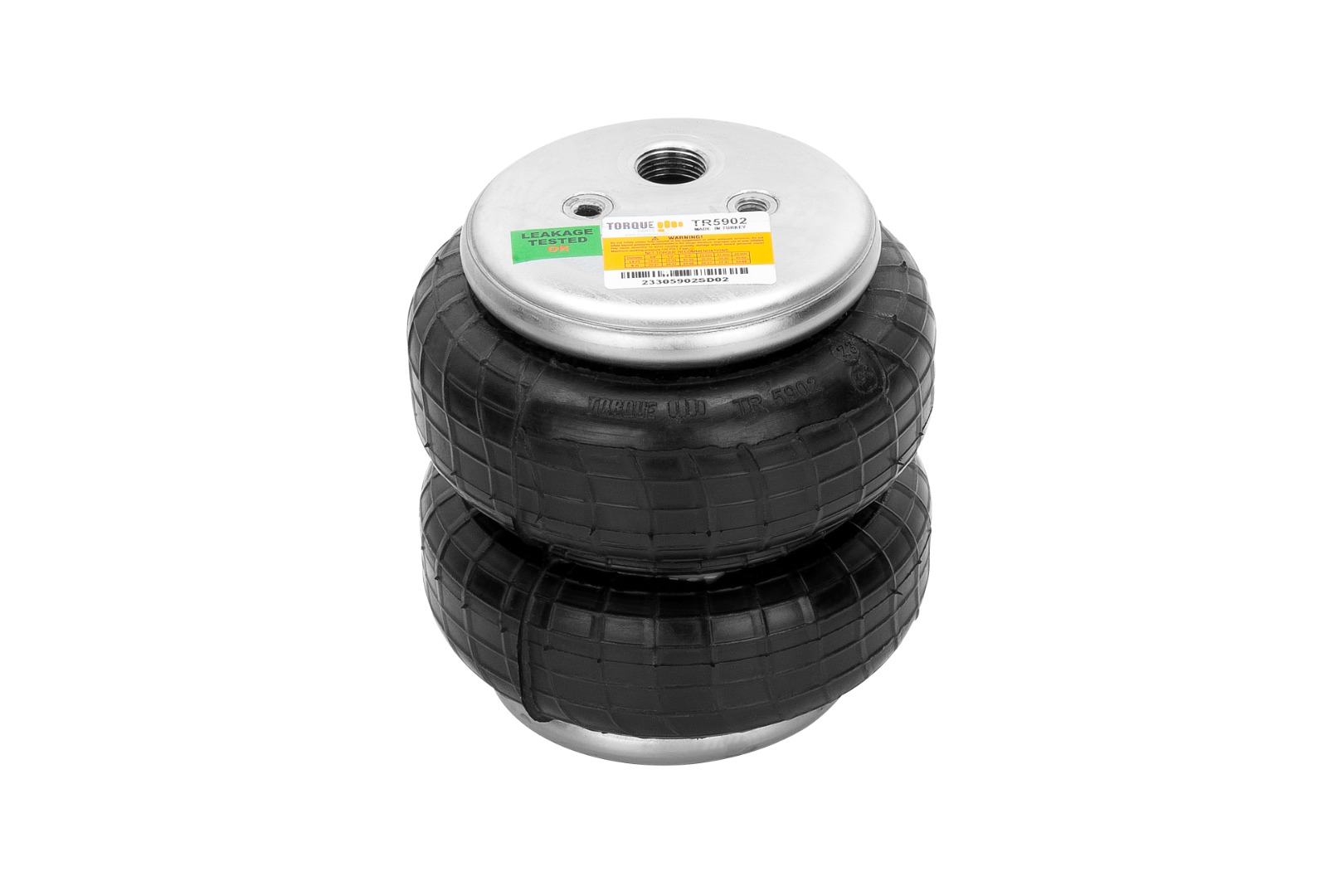

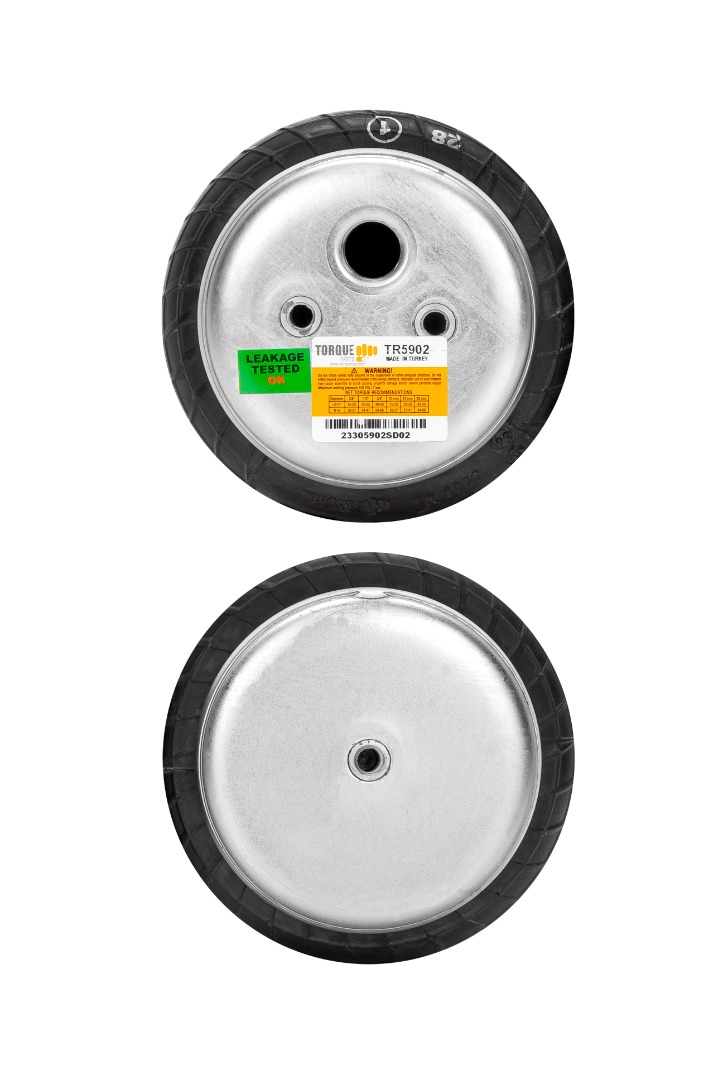

TR5902 | Dominator Air Spring Replaces 58343
Description : TR5902 | Dominator Air Spring Replaces 58343
Part Number : TR5902
TR5902 | Dominator Air Spring Replaces 58343
| Air Lift : | 58343 |
| Longest Side : | 5.91 in. |
| Median Side : | 5.71 in. |
| Shortest Side : | 5.71 in. |
| Weight : | 3.49 lbs. |
| Maximum Extended Height : | 10.5" |
| Compressed Height : | 2.8" |
| Maximum Load at 100 PSI : | 2,030 lbs |
| Maximum Diameter : | 7" |
| Design Height : | 5.5" - 7.5″ |
| Air Fitting Size: | 1/2″ |
| Bottom Fastener : | 3/8″ – 16 |
| Top Fastener : | 3/8″ – 16 |
| Mounting Hole Center : | 1.75″ – Top/Center/Bottom |
