TR40010306 | Air Brake Automatic Slack Adjuster - 6 in. Arm Length, 1.5 in. Spline Diameter, 10 Spli
Description : TR40010306 | Air Brake Automatic Slack Adjuster - 6 in. Arm Length, 1.5 in. Spline Diameter, 10 Spline Quantity
Part Number : TR40010306
Air Brake Automatic Slack Adjuster - 6 in. Arm Length, 1.5 in. Spline Diameter, 10 Spline Quantity Replaces 40010306
Cross References: 40010306, 070-40010306, HDX40010306, K041876, 10-400-10306, 808118, 808146, 808154, 808183, 813646, 813656, 818149, E-6928, 409-10111, 409-10245, 409-10211, 409-10279, 409-10297, 409-10318, 409-10418, 409-10492, 409-10656, 420-10656, 429-10656, 500-10306, 509-10318, 509-10492, 509-10656, 5396-40010306, 7883-40010306, MID40010306, R806007, SA10306, 767653143736
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

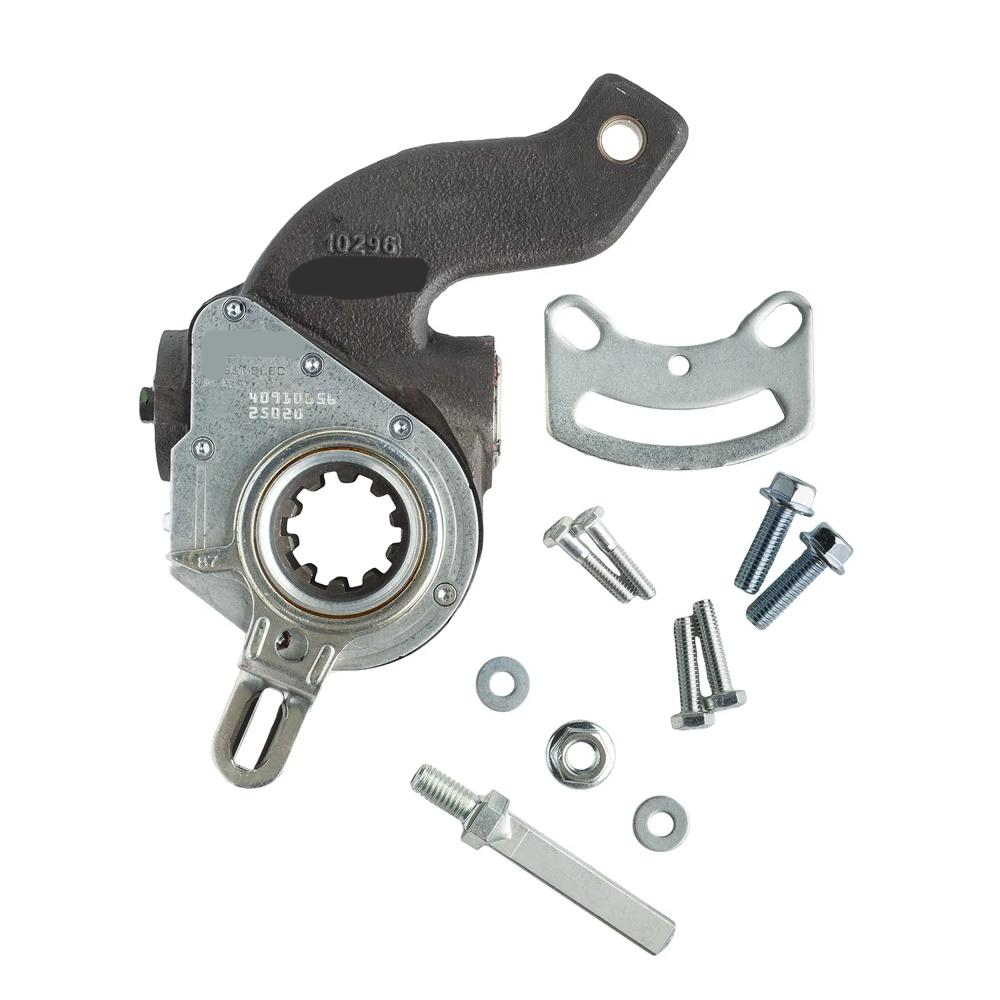

ABA Automatic Slack Adjuster
For 12.25" brake applications
Fits 1.5" - 10 spline camshaft
6.0" Arm Length (Span)
'Curved' slack adjuster, 35° body angle
Uses a standard clevis for attachment to the brake chamber pushrod
Clearance Sensing Adjuster - Adjusts brake automatically based on clearance between the brake drum and brake lining
Includes one slack adjuster, anchor bracket kit and installation instructions
For 12.25" brake applications
Fits 1.5" - 10 spline camshaft
6.0" Arm Length (Span)
'Curved' slack adjuster, 35° body angle
Uses a standard clevis for attachment to the brake chamber pushrod
Clearance Sensing Adjuster - Adjusts brake automatically based on clearance between the brake drum and brake lining
Includes one slack adjuster, anchor bracket kit and installation instructions
