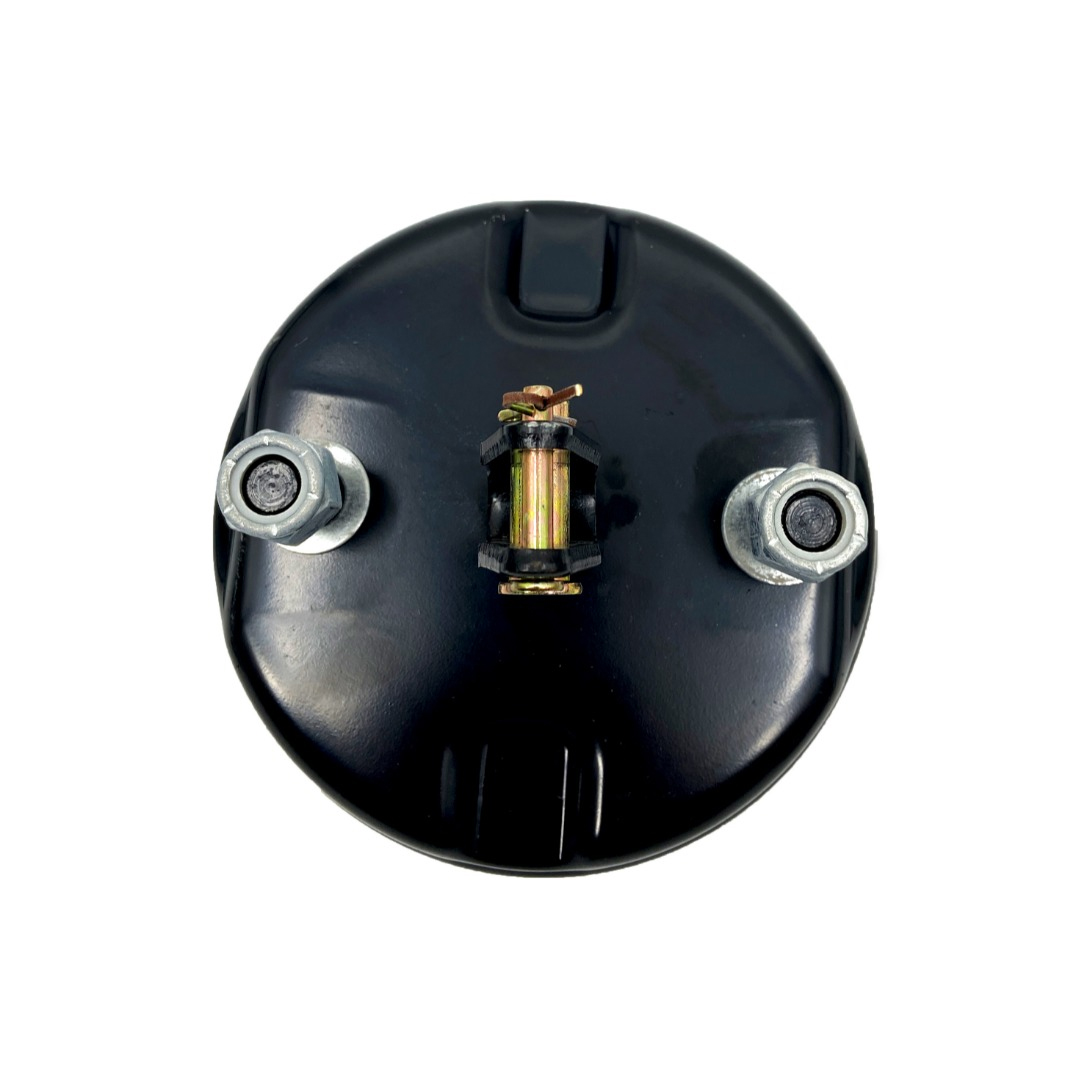

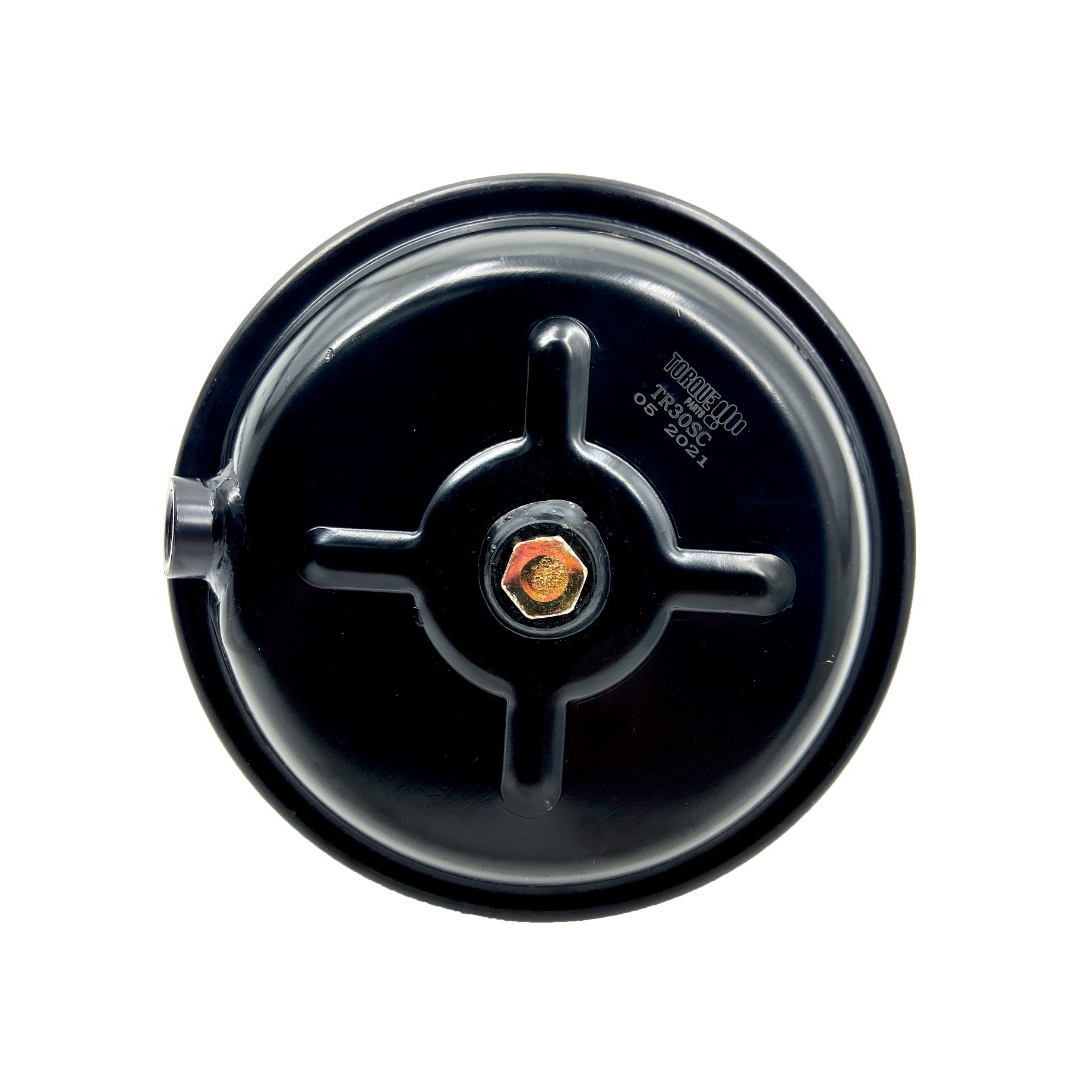

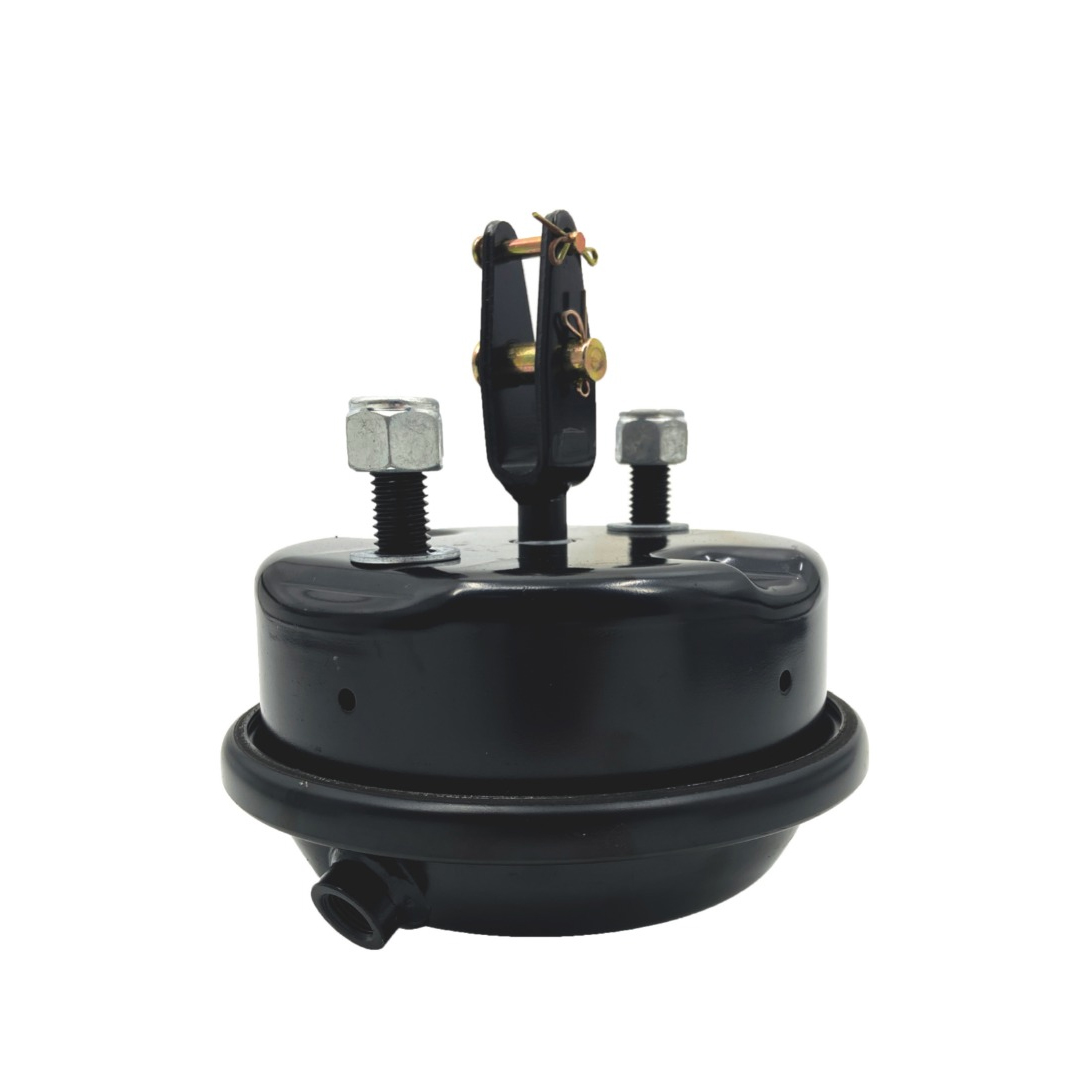

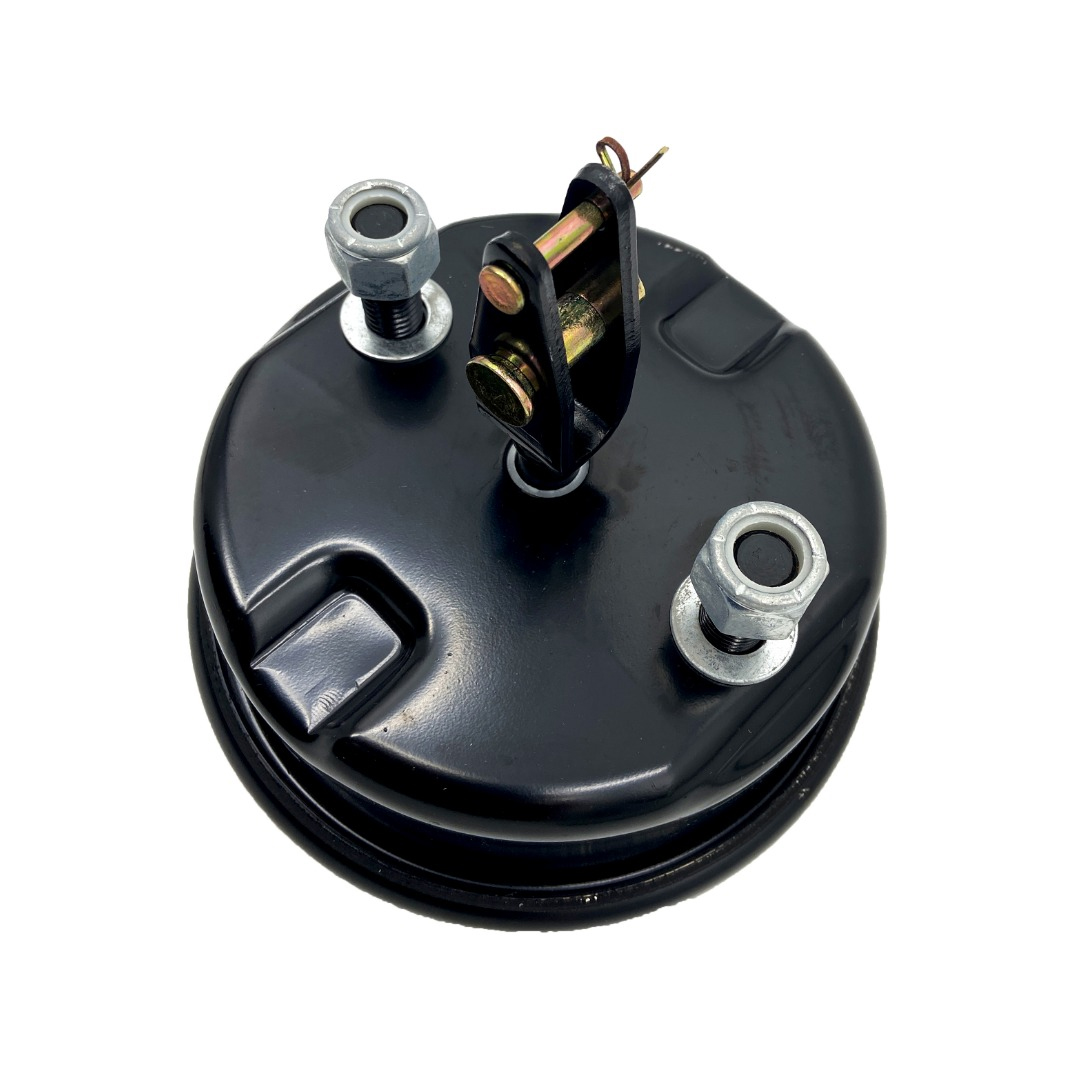

TR30SC-WC | Air Brake Chamber Service Type 30 with Welded Clevis
Description : EBC30S, 1430001, 179.SC30,800826
Part Number : TR30SC-WC
TR30SC-WC | Air Brake Chamber Service Type 30 with Welded Clevis
| Automann: | 179.SC30 |
| Bendix: | 5007121N, 800826 |
| Euclid: | E30S, EBC30S |
| Haldex: | SC30, 3000001, 53000001, MA36300 |
| MGM: | 1430001 |
| Midland: | KN36300 |
| Actuator Type Size: | 30 |
| Stroke Type: | Standard |
| Available Stroke: | 2-1/2", 64mm |
| Air Port Threads: | 3/8"-18 NPTF |
| Length from mounting bracket to end of Spring Housing: | 3-11/16", 94mm |
| Dimension at Service Clampband: | 10-3/16", 259mm |
| Stud Spacing with 5/8-11 UNC studs: | 4-3/4", 120.7mm |
| Pushrod Length from face of Service Housing: | 10" |
| Pushrod threads: | 5/8"-18 UNF |
| Air Port position: | 90° |
| Service Clampband position: | 0° |
| Maximum Air Pressure: | 150 psi |
| Weight: | 10.3 lbs. , 4.7 kg. |
