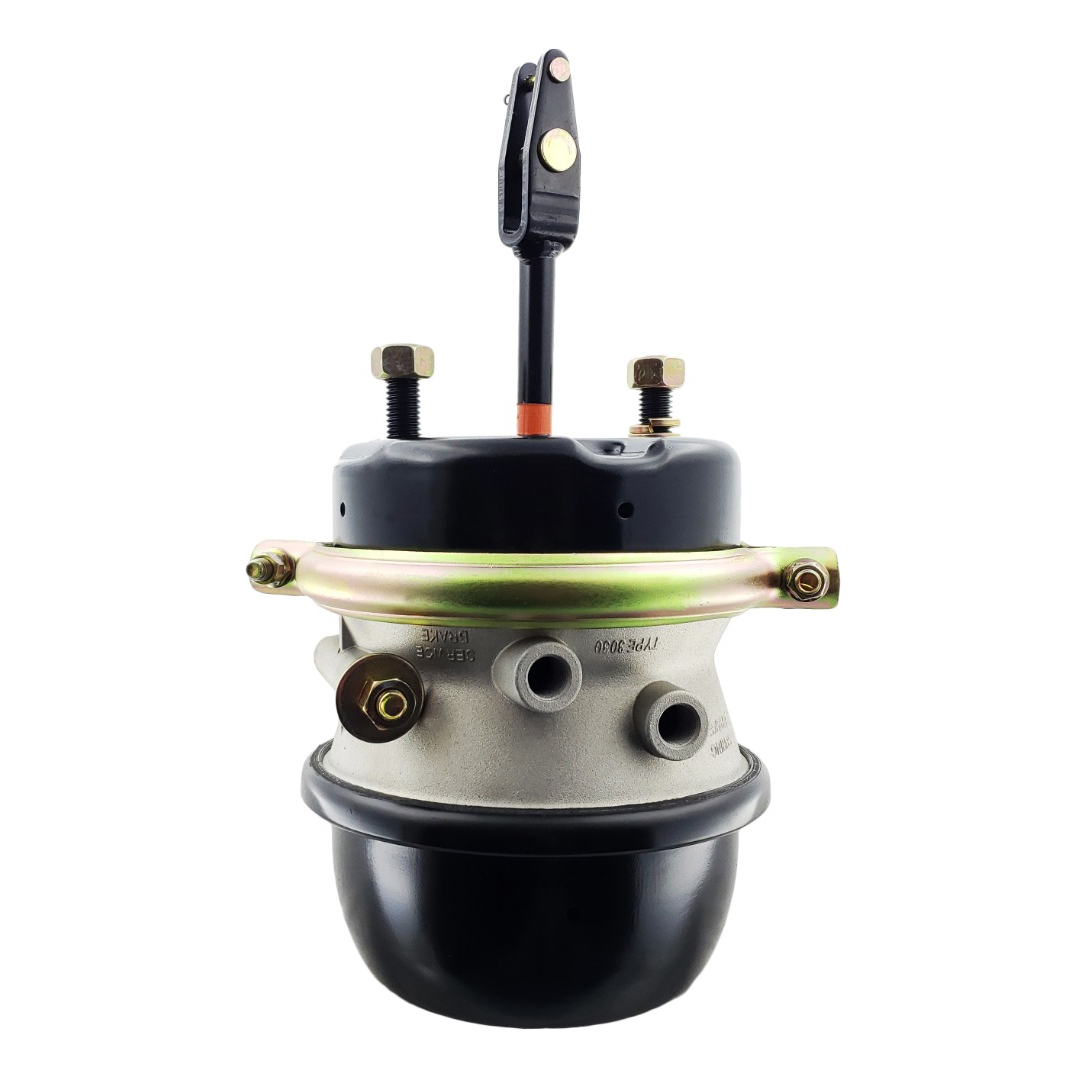

TR3030C-WC | Air Brake Chamber Type 3030 Welded Clevis
Description : GTA-3030-WCR, K129605, 179.SB3030SW1100, K067114
Part Number : TR3030C-WC
TR3030C-WC | Air Brake Chamber Type 3030 Welded Clevis
| Automann: | 179.SB3030SW1100 |
| Bendix: | K067114, K129605 |
| Haldex: | GC3030S4CW, GC3030CW |
| Other: | BTS-3030-WCR, GTA-3030-WCR |
| Actuator Type Size: | 3030 |
| Stroke Type: | Standard |
| Available Stroke: | 2-1/2", 64mm |
| Length from mounting bracket to end of Spring Housing: | 9", 229mm |
| Length of Piggyback: | 6-13/16", 173mm |
| Dimension at rolled Spring Housing flange: | 8-5/16", 211mm |
| Dimension at Service Clampband: | 10-3/16", 259mm |
| Pushrod Length from face of Service Housing: | 1" |
| Distance to Clevis Pin centerline from face of Service Housing: | 2-1/4" |
| Weight: | 21.3 lbs. , 9.7 kg. |
