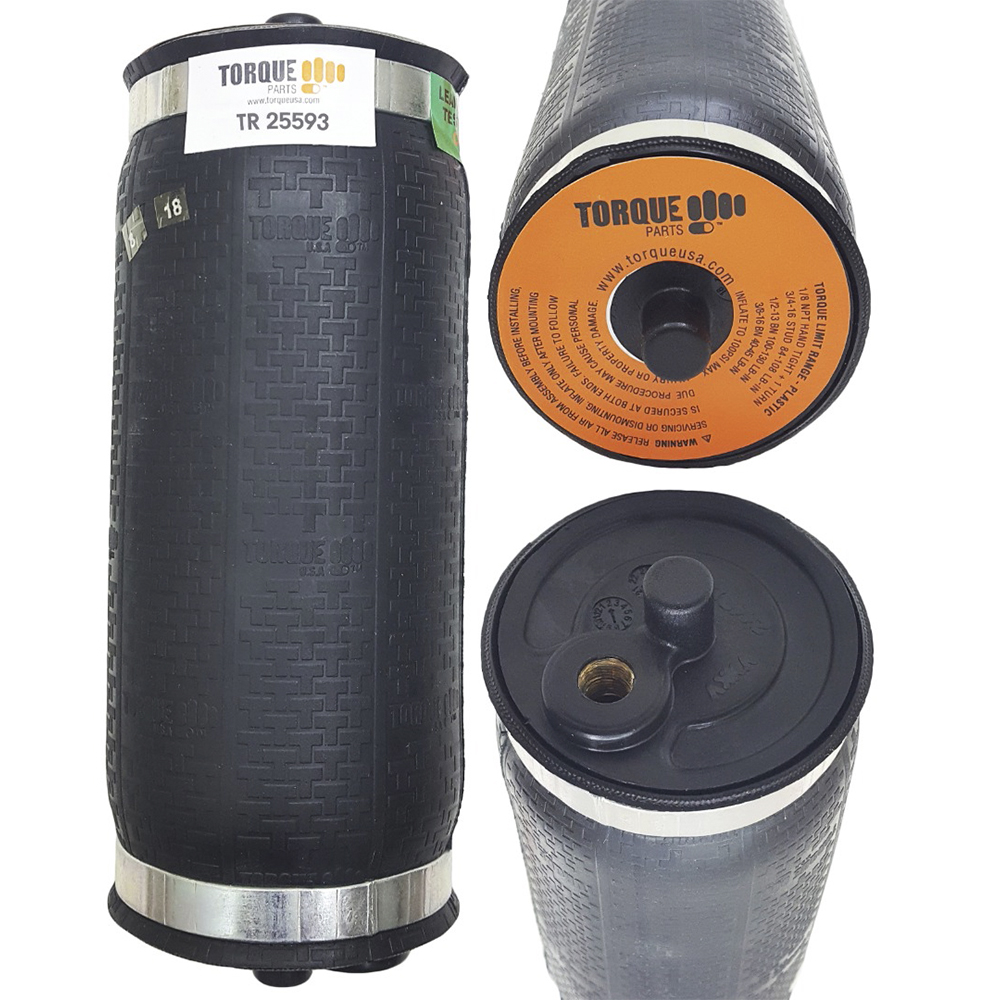

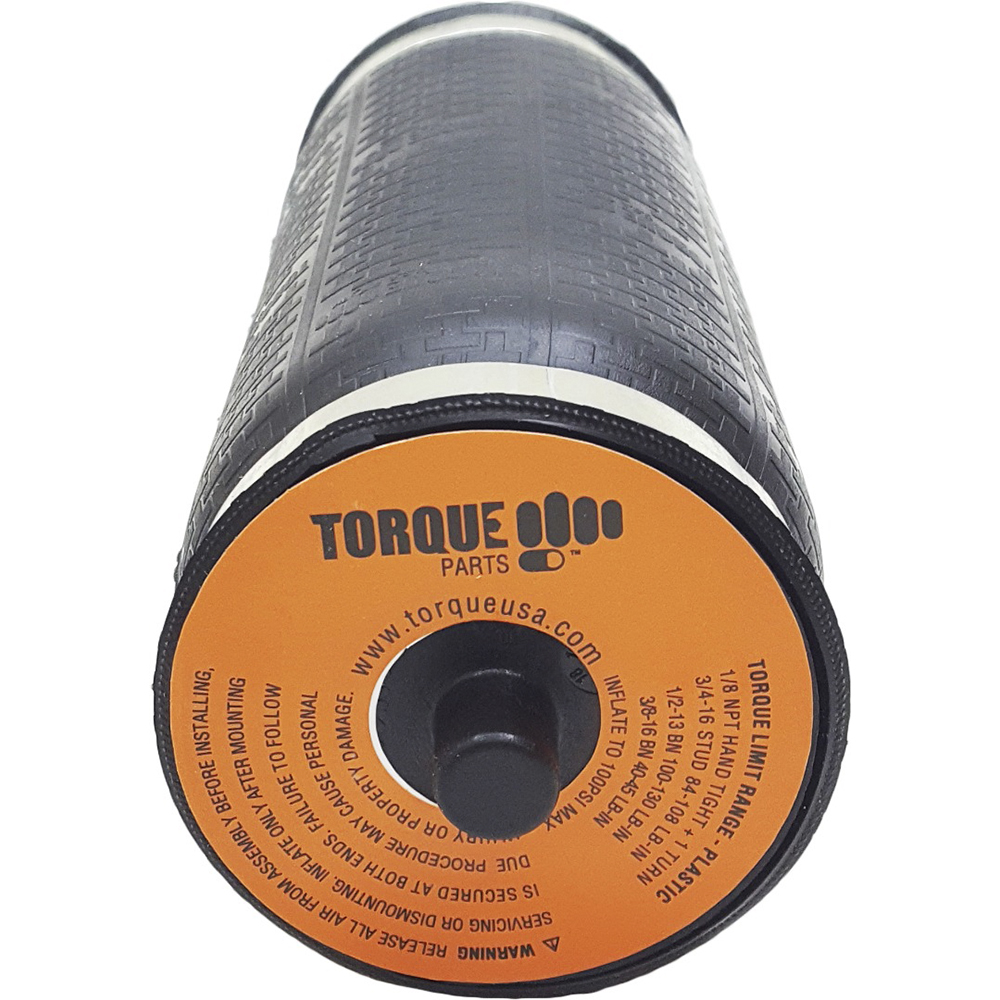

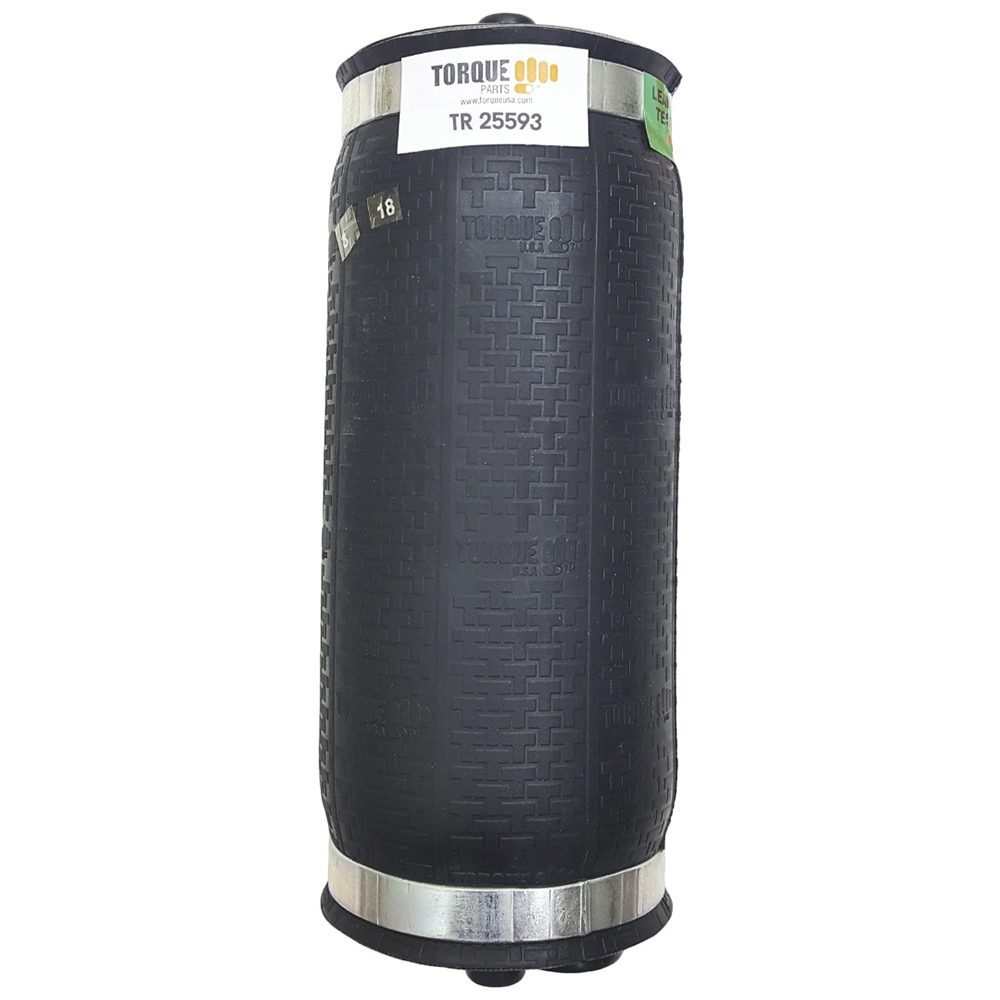

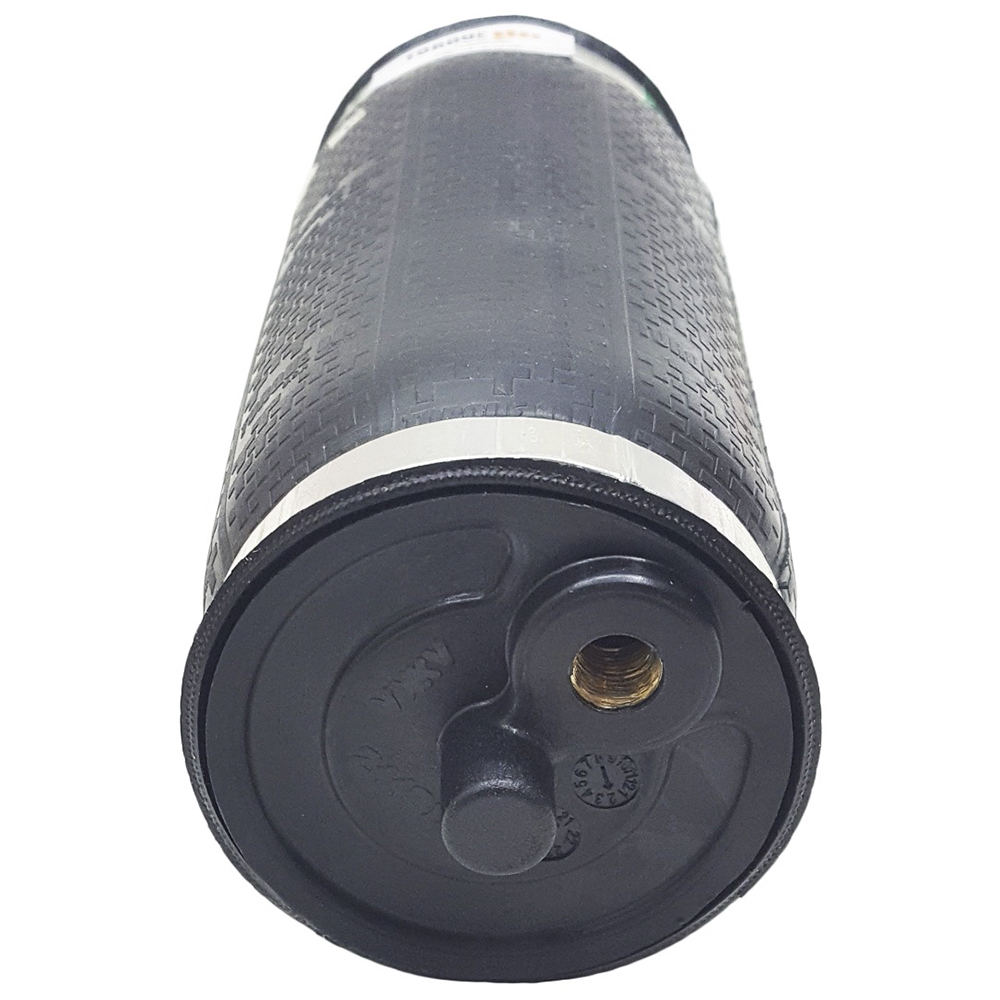

TR25593 | Actuator Surelok Air Spring
Description : C24488, C25593, S24488, S25593, S-25593
Part Number : TR25593
TR25593 | Plastic base - Trailer Air Spring with actuator suyrelok, Hendrickson, Replaces S-25593, S-24488, 5593
| Firestone: | 5593 |
| Goodyear: | 57908017200000 |
| Hendrickson: | C24488, C25593, S24488, S25593, S-25593, S-24488, C-25593, C-24488 |
| Locating Pin Diameter: | 1/2" |
| Locating Pin Height: | 1/2" |
| Air Inlet: | 1/8" NPT |
| Body Height: | 6-1/2" |
| Piston Diameter: | 2-5/8" |
| Weight: | 2lbs |
