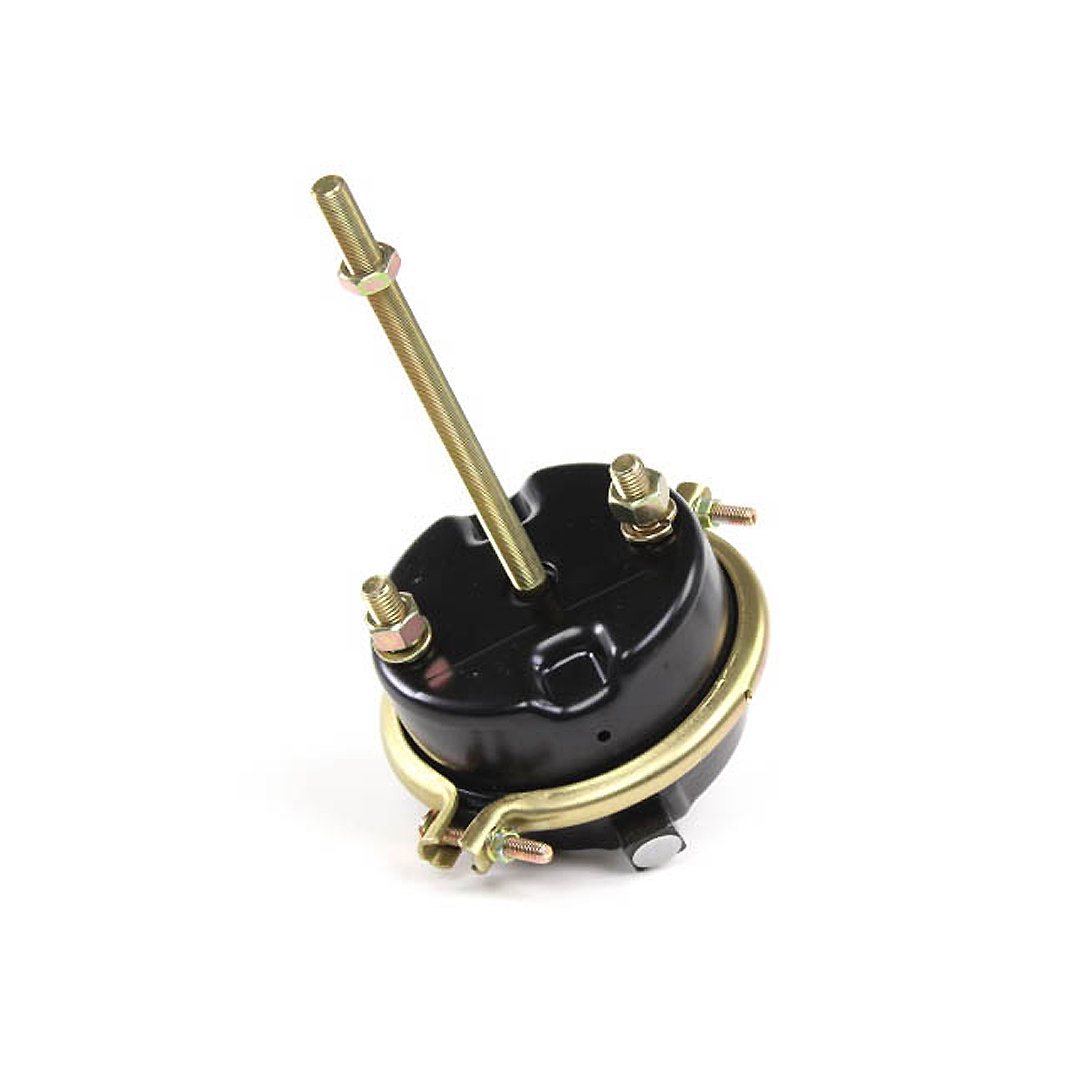

TR24SC | Air Brake Chamber Replaces 800825
Description : AC22381, EBC24S, S-9815, 19QE486
Part Number : TR24SC
TR24SC | Air Brake Chamber Replaces 800825
| Bendix: | 800825, 802986, 236667, 288808 |
| BWP: | M458 |
| Euclid: | E24S, EBC24S, E-BC24S |
| Mack: | 19QE486 |
| Midland-Grau: | KN36240 |
| New Star: | S-9815 |
| PAI: | HSC-0224-100 |
| Tectran: | 150-240 |
| Wagner: | AC22380, AC22381 |
| Actuator Type Size: | 24 |
| Stroke Type: | Standard |
| Available Stroke: | 2-1/4", 57mm |
| Length from mounting bracket to end of Spring Housing: | 3-3/4", 97mm |
| Dimension at Service Clampband: | 9-3/8", 239mm |
| Stud Spacing with 5/8-11 UNC studs: | 4-3/4", 120.7mm |
| Pushrod Length from face of Service Housing: | 10-1/4" |
| Pushrod threads: | 5/8"-18 UNF |
| Service Clampband position: | 0° |
| Air Port position: | 90° |
| Weight: | 8.6 lbs. , 3.9 kg. |
