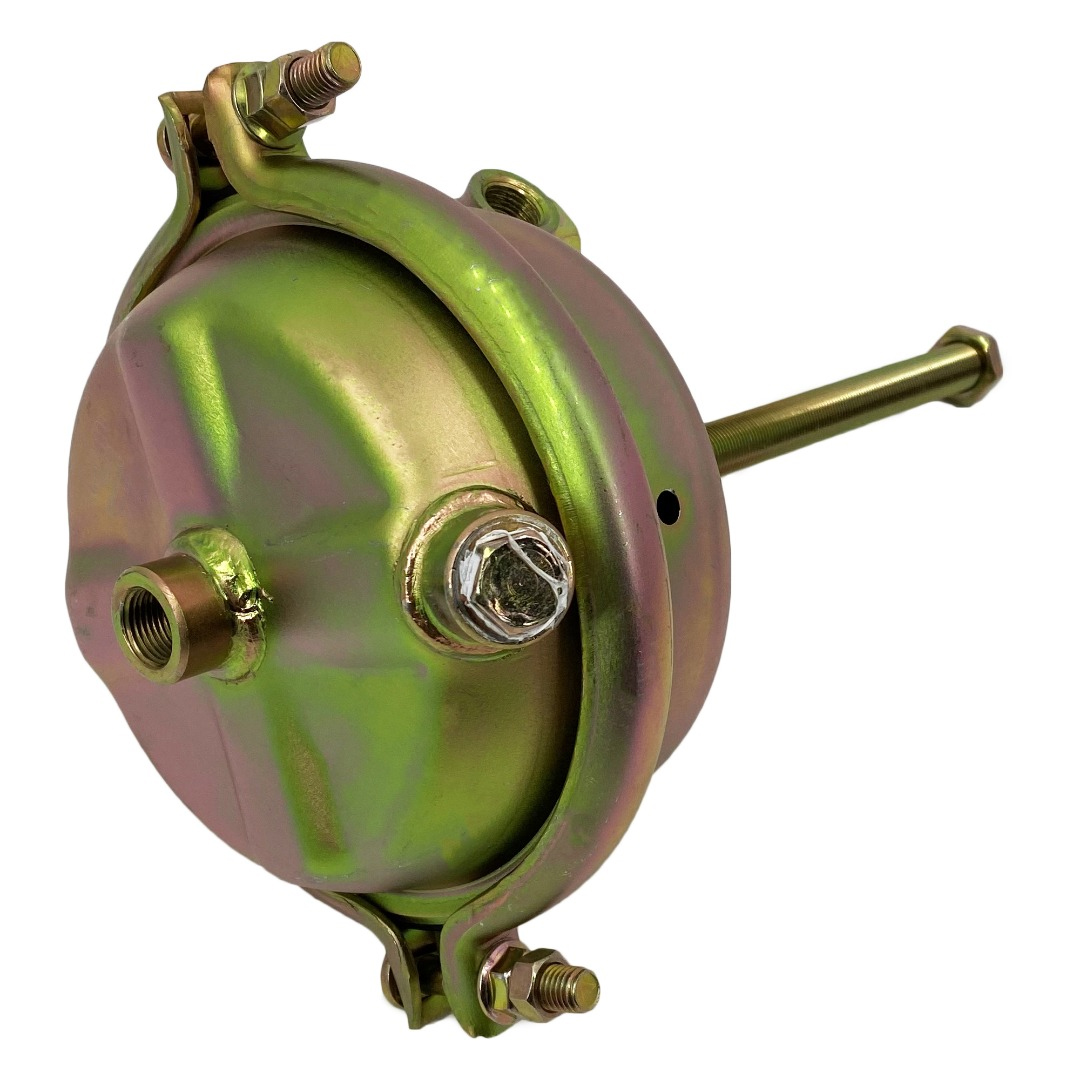

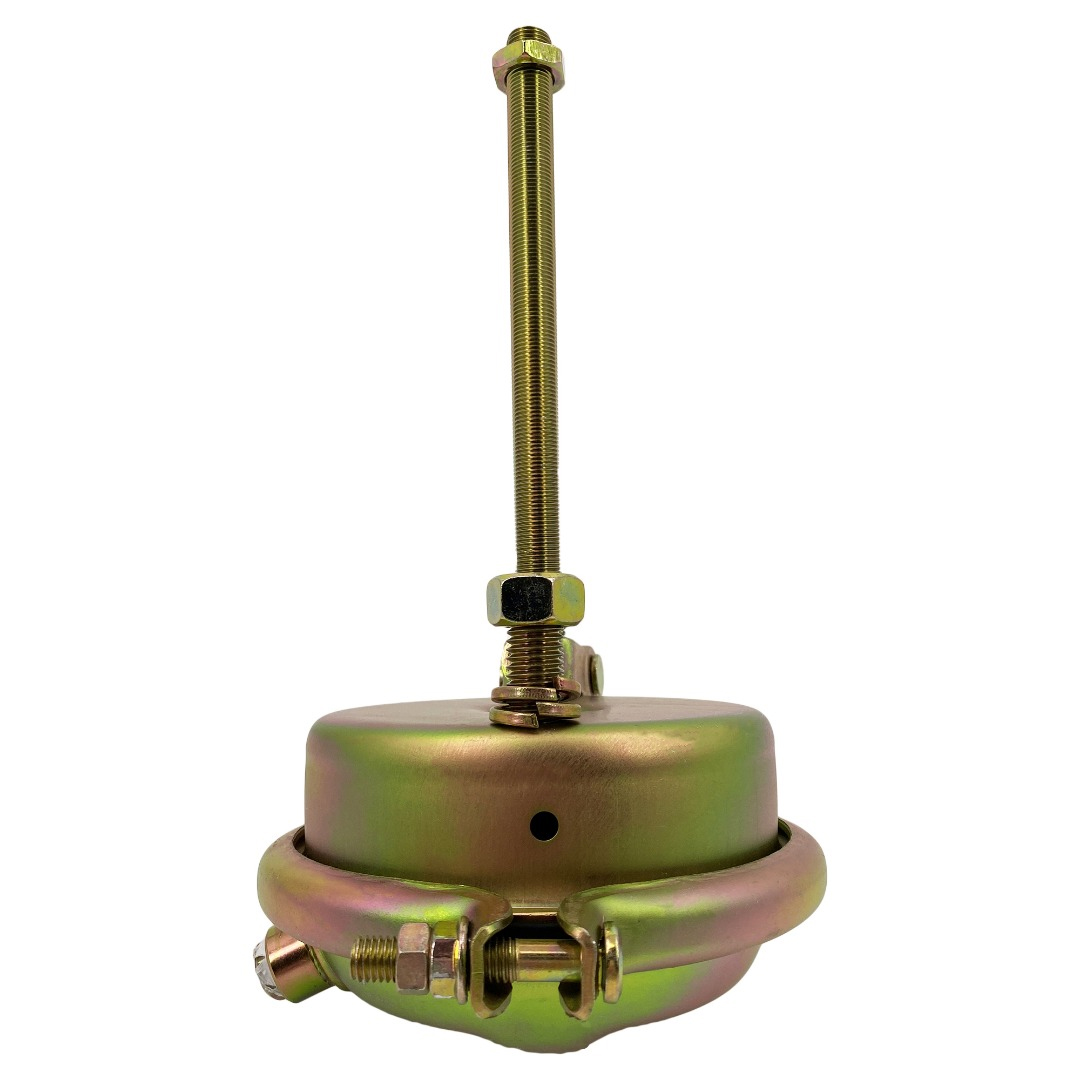

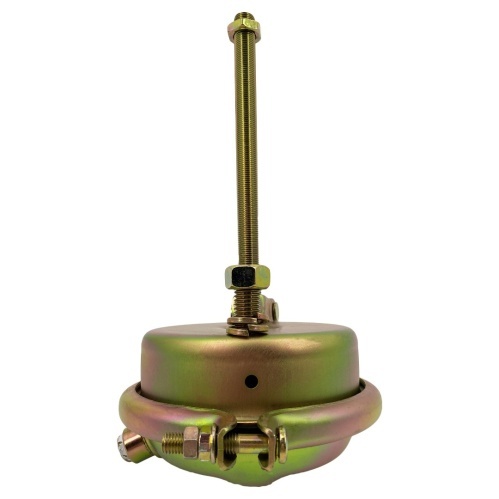

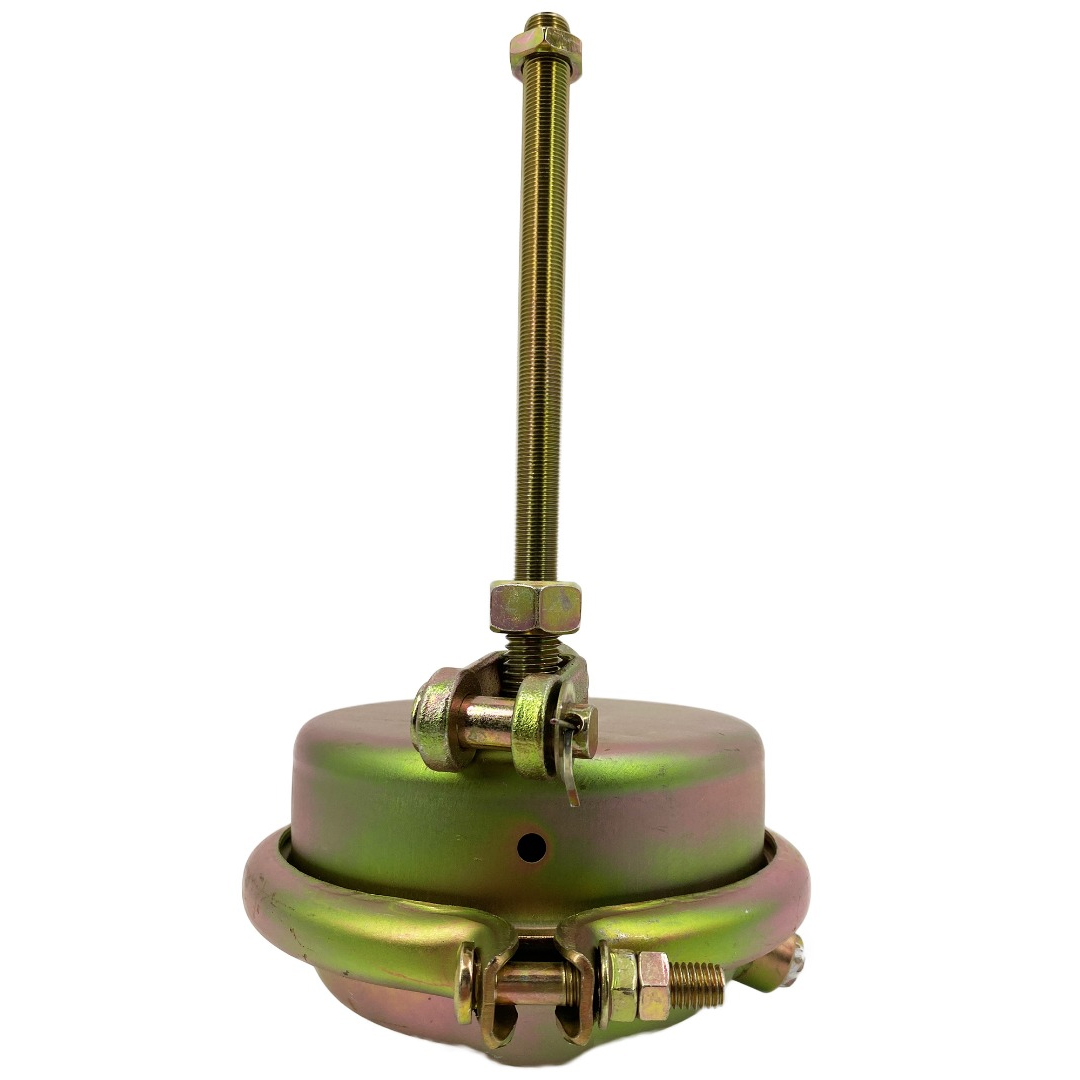

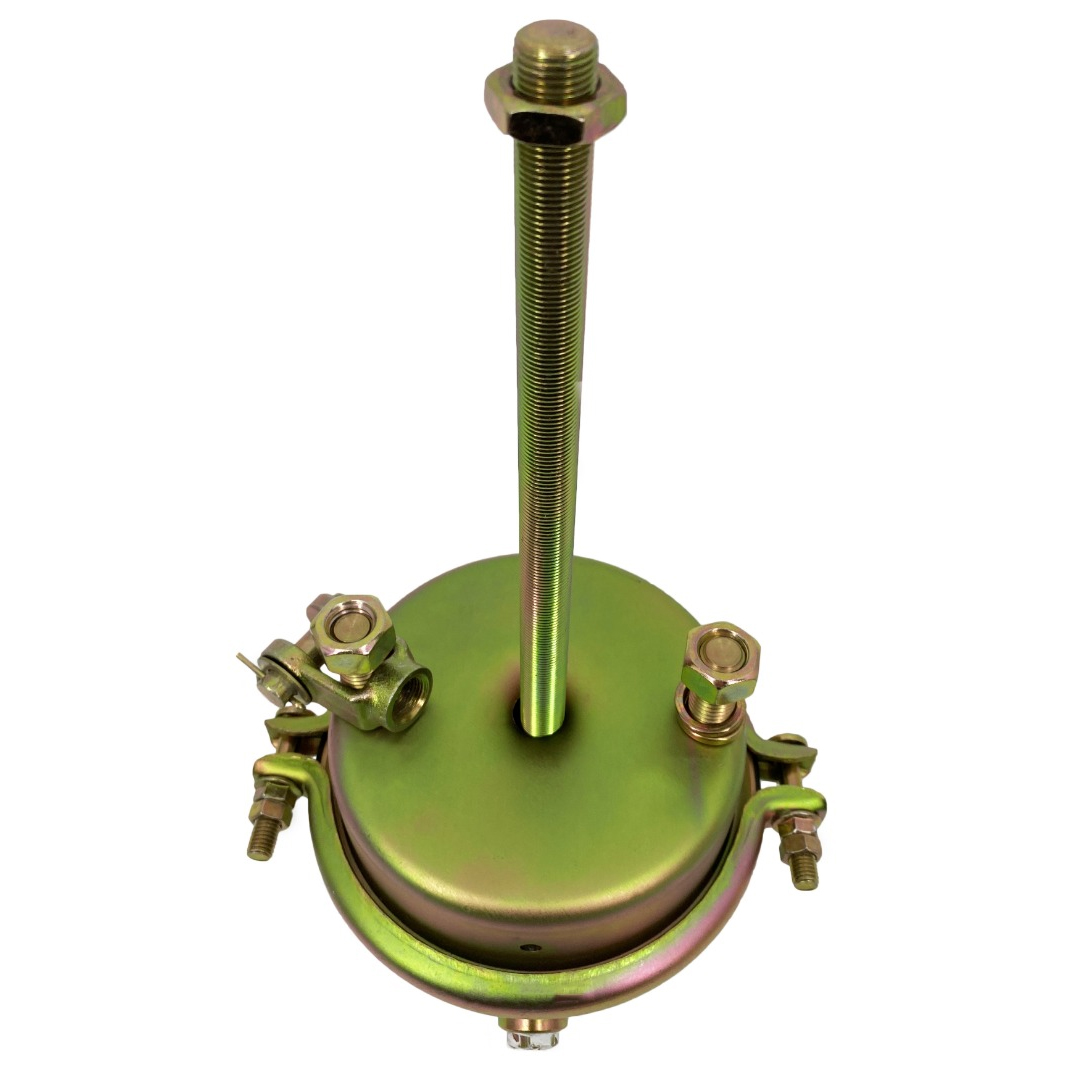

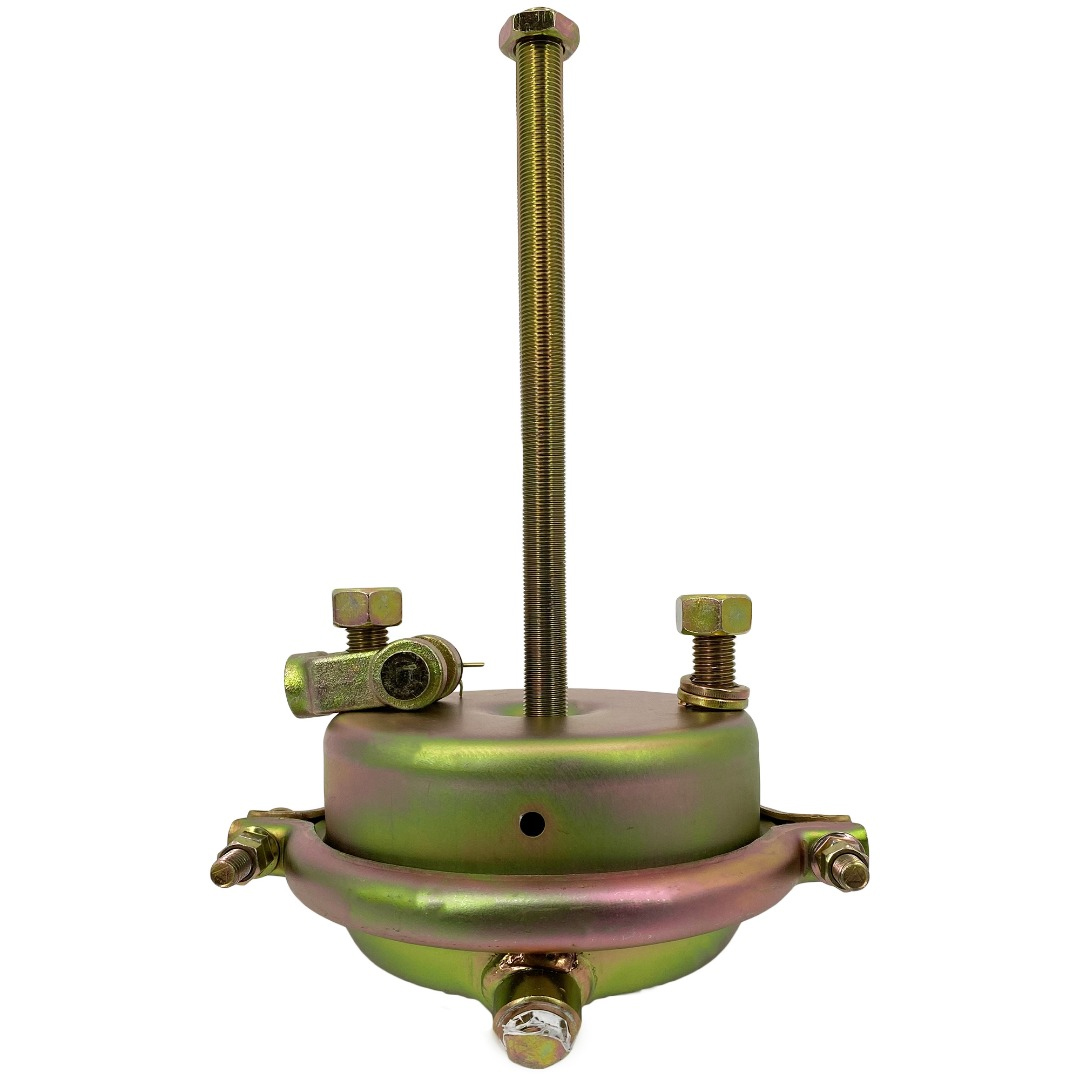

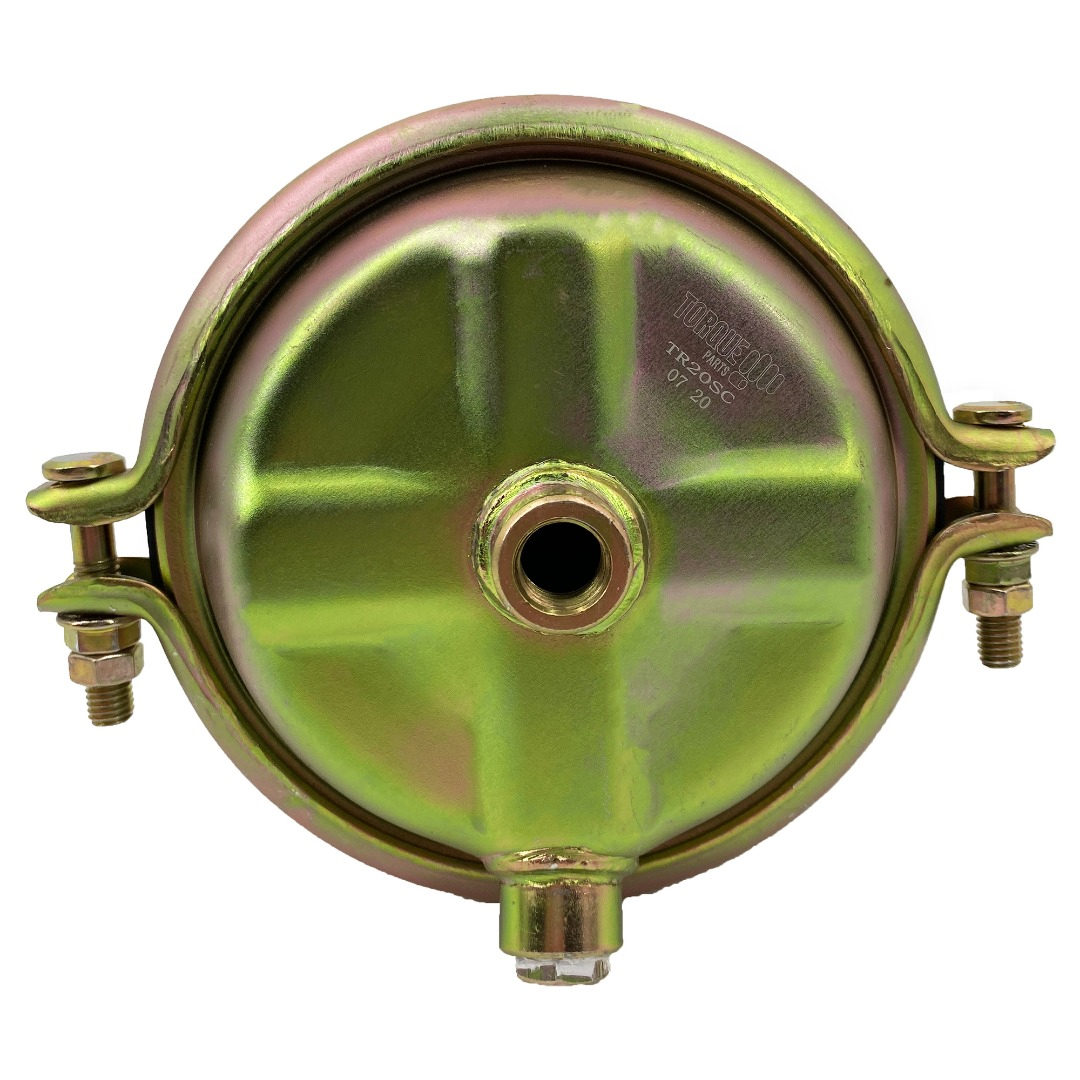

TR20SC | Air Brake Chamber Service Type 20
Description : 30017, 5019641, 19QE465RP3, 125200101
Part Number : TR20SC
TR20SC | Air Brake Chamber Service Type 20
| Bendix: | 800824, 802990, K028225, 801811, 801812, 5019641, 509642 |
| Dayton: | 05-120 |
| Euclid: | E20S |
| Haldex: | SC20, SC20D, 125200101 |
| Mack: | 19QE465RP3 |
| MGM: | 1420001, 1621-CS20L |
| TSE: | 20HSCND2-3630, 20SCLD2H |
| Velvac: | 30017 |
| Actuator Type Size: | 20 |
| Stroke Type: | Standard |
| Available Stroke: | 2-1/4", 57mm |
| Length from mounting bracket to end of Spring Housing: | 4", 102mm |
| Dimension at Service Clampband: | 8-5/8", 218mm |
| Stud Spacing with 5/8-11 UNC studs: | 4-3/4", 120.7mm |
| Pushrod Length from face of Service Housing: | 10-3/16" |
| Pushrod threads | 5/8"-18 UNF |
| Service Clampband position: | 0° |
| Air Port position: | 90° |
| Weight: | 7.5 lbs. , 3.4 kg. |
