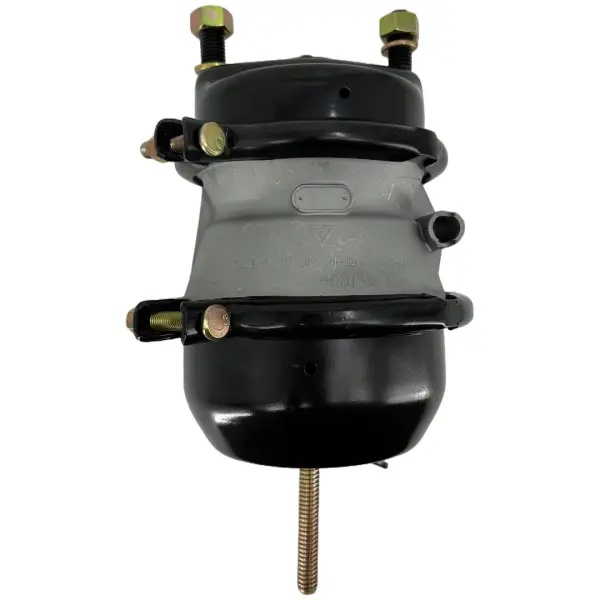

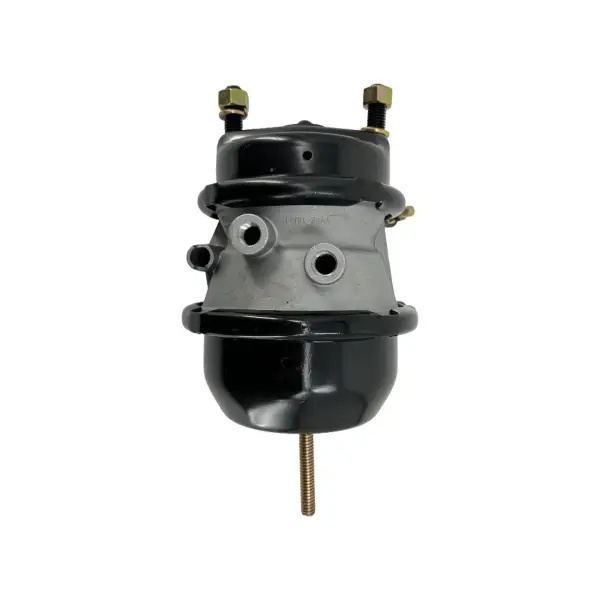

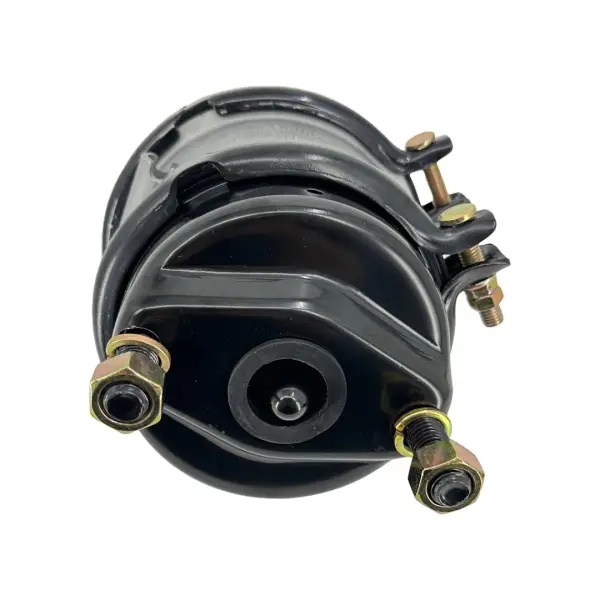

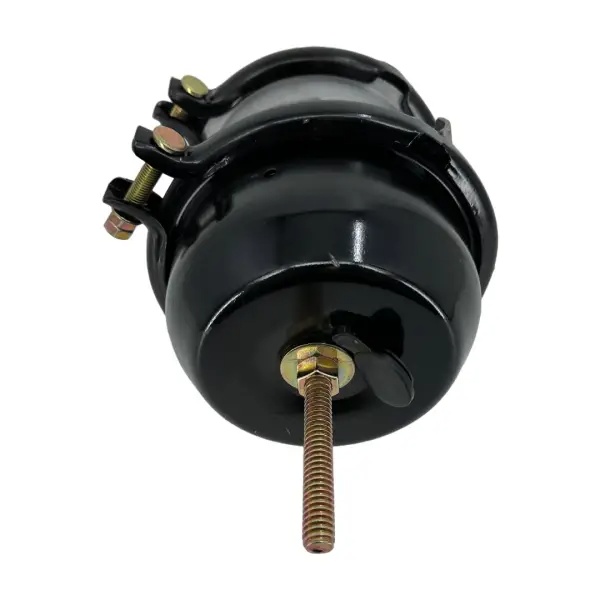

TR1624C | Disc Brake Chamber 16/24 for Caliper Brakes Truck Trailer
Description : TR1624C | Disc Brake Chamber 16/24 for Caliper Brakes Truck Trailer
Part Number : TR1624C
TR1624C | Disc Brake Chamber 16/24 for Caliper Brakes Truck Trailer
| Brand | Reference Numbers |
|---|---|
| Bendix | K042457 |
| Automann | 179.SB1624DB |
| Haldex | GC1624D |
| Property | Value |
|---|---|
| Chamber Style | Double Diaphragm |
| Service Chamber Joint Type | Single Clamp Band |
| Stud Thread Size | M16 x 1.5‑6g |
| Stud Spacing | 4.75 IN (120.7 MM) |
| Mounting Stud Length | 1.72 IN (43.7 MM) |
| Stroke | 2.25 IN (57.2 MM) |
| Push Rod Thread / Style | Spherical End |
| Push Rod Length [MM] | 15 |
| Service Port | 3/8‑18 NPTF |
| Parking Port | 3/8‑18 NPTF |
| Port Angle | 270° |
| Clamp Angle | 90° |
| Maximum Operating Temperature | 176 °F (80 °C) |
| Minimum Operating Temperature | ‑40 °F ( ‑40 °C) |
